Honor Award

Ningbo Eco-Corridor - 3.3 km Living Filter
Ningbo, China

SWA Group, Sausalito, CA
Client: Ningbo Planning Bureau – East New Town Development Committee

  • Ningbo Eco-Corridor - 3.3 km Living Filter
    Close Me!

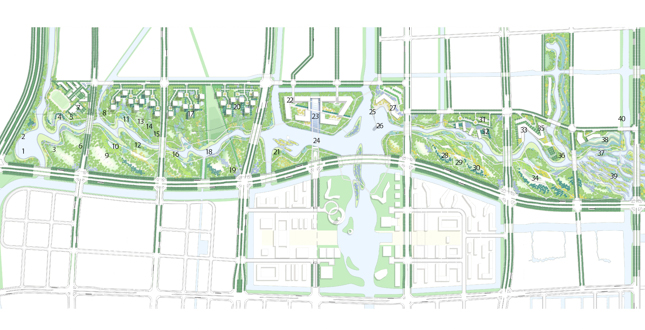

    Landscape Master Plan.
    Download Hi-Res Image

    Image: SWA

    Image 1 of 16

  • Ningbo Eco-Corridor - 3.3 km Living Filter
    Close Me!

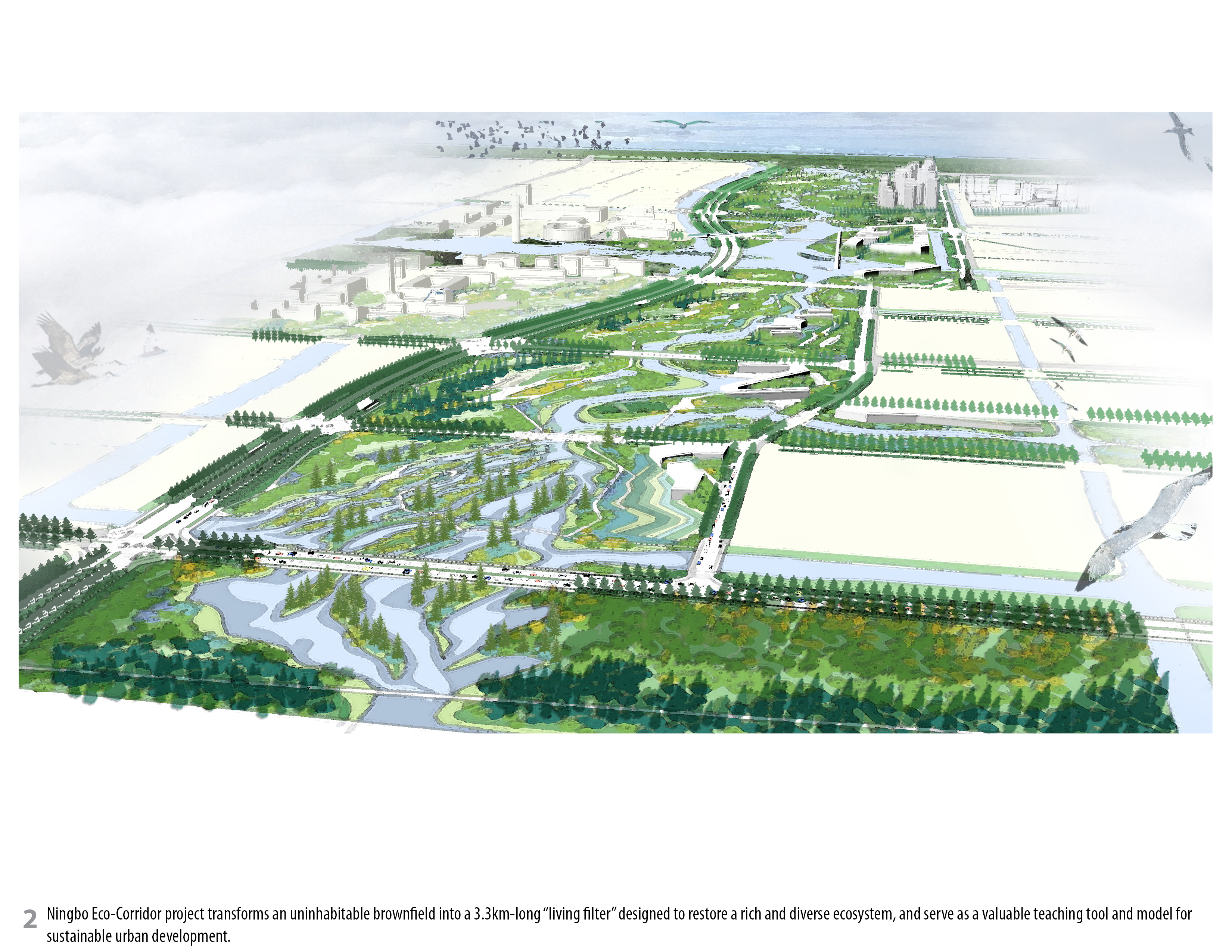

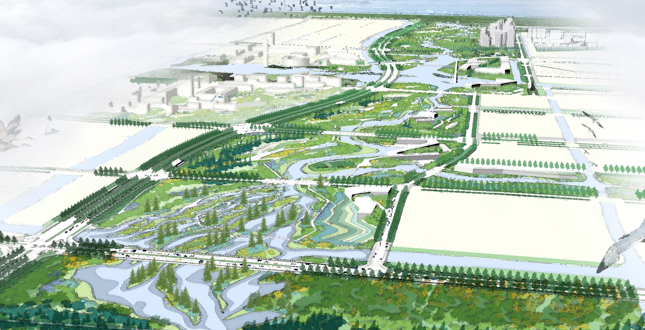

    Ningbo Eco-Corridor project transforms an uninhabitable brownfield into a 3.3km-long “living filter” designed to restore a rich and diverse ecosystem, and serve as a valuable teaching tool and model for sustainable urban development.
    Download Hi-Res Image

    Image: SWA

    Image 2 of 16

  • Ningbo Eco-Corridor - 3.3 km Living Filter
    Close Me!

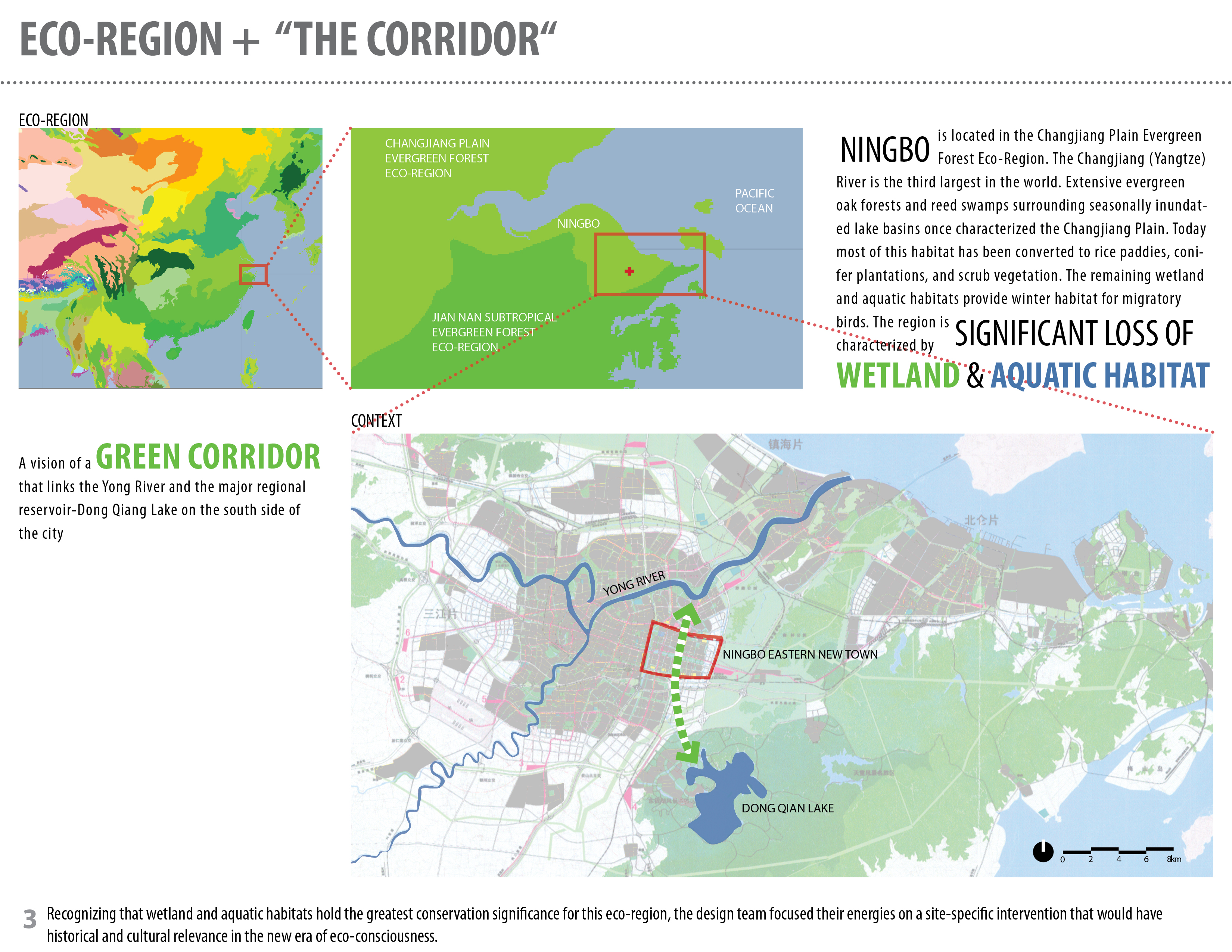

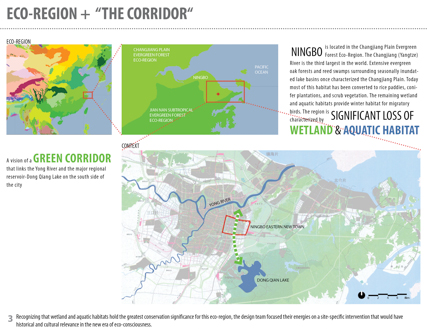

    Recognizing that wetland and aquatic habitats hold the greatest conservation significance for this eco-region, the design team focused their energies on a site-specific intervention that would have historical and cultural relevance in the new era of eco-consciousness.
    Download Hi-Res Image

    Image: Eco-region map - World Wildlife Fund

    Image 3 of 16

  • Ningbo Eco-Corridor - 3.3 km Living Filter
    Close Me!

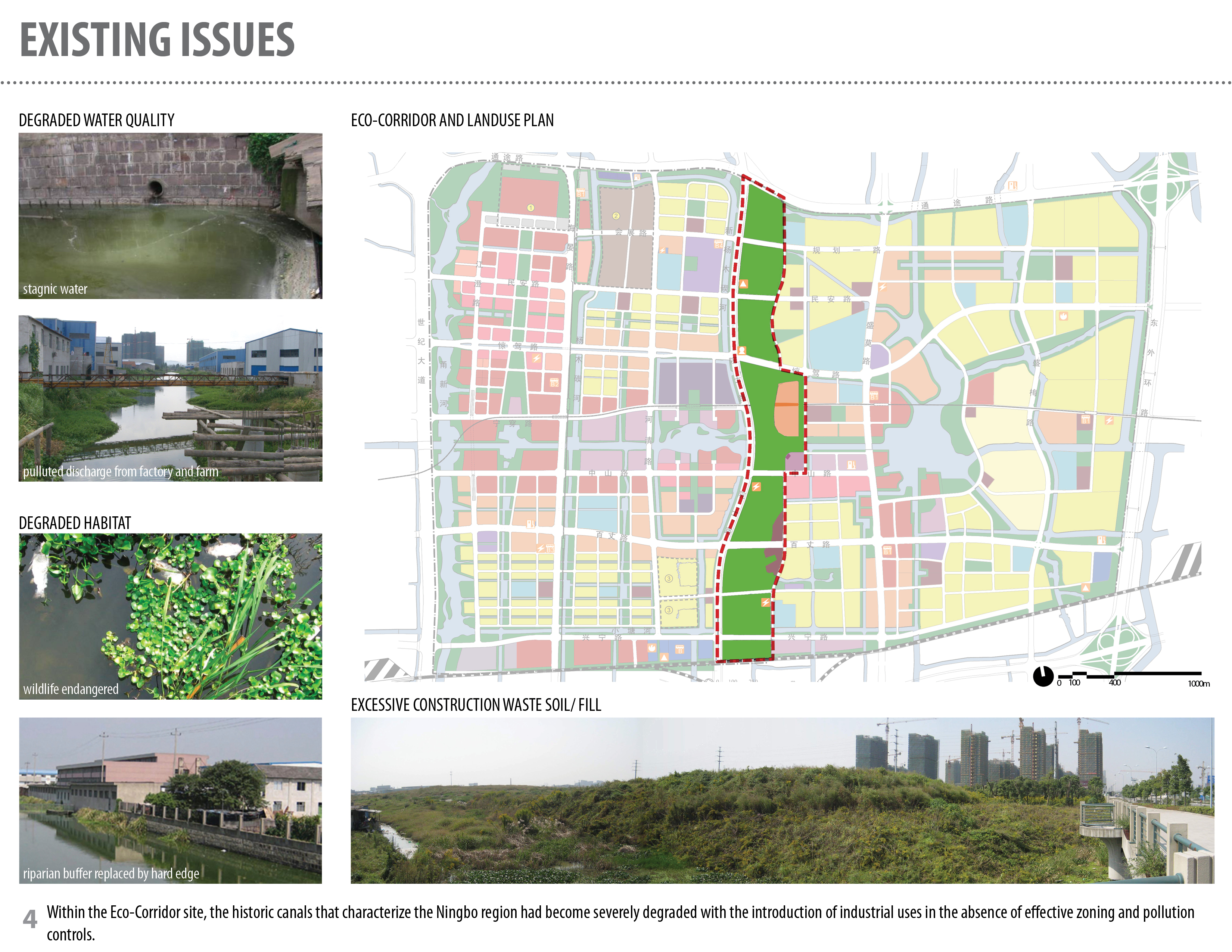

    Within the Eco-Corridor site, the historic canals that characterize the Ningbo region had become severely degraded with the introduction of industrial uses in the absence of effective zoning and pollution controls.
    Download Hi-Res Image

    Image: Hui-Li Lee, Jack Wu (site photos)

    Image 4 of 16

  • Ningbo Eco-Corridor - 3.3 km Living Filter
    Close Me!

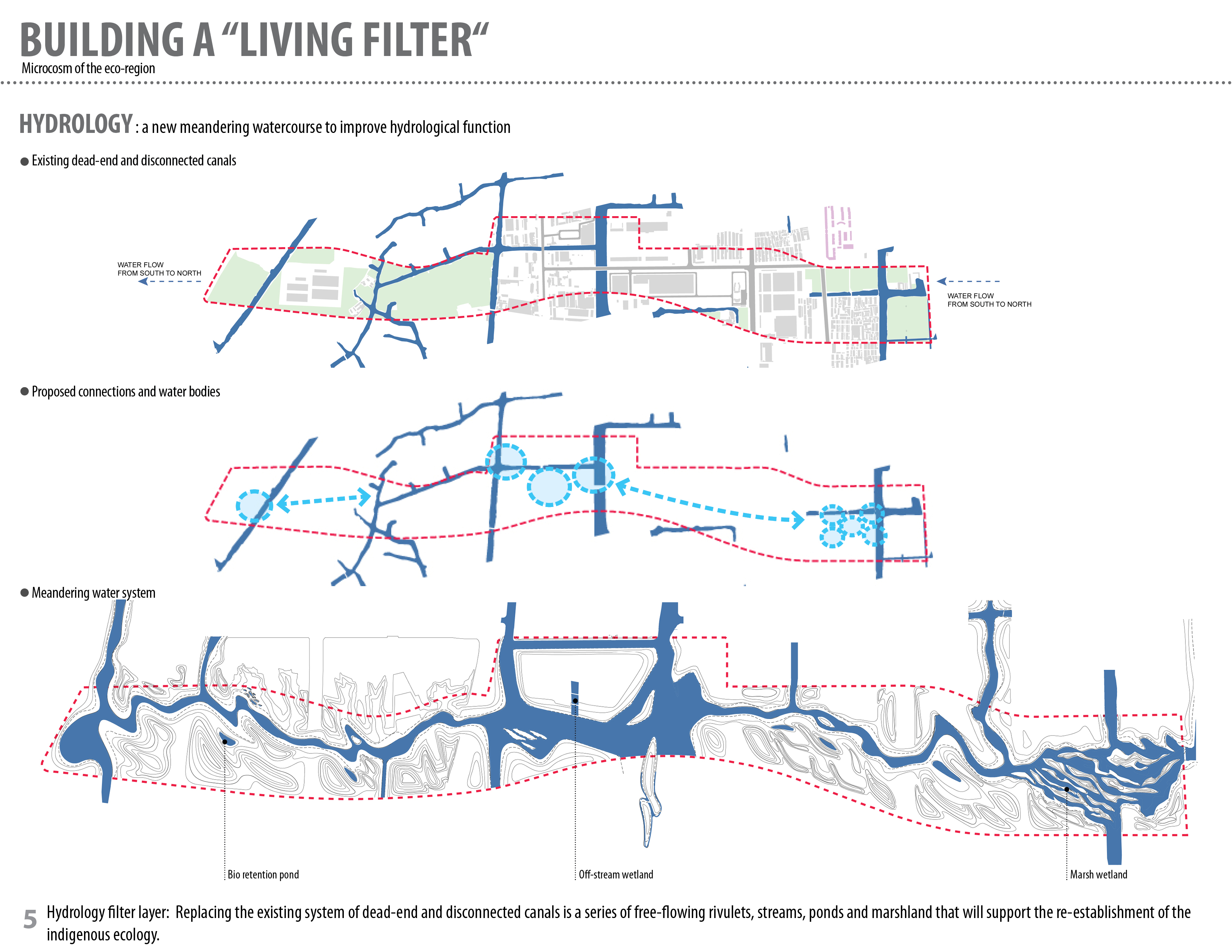

    Hydrology filter layer: Replacing the existing system of dead-end and disconnected canals is a series of free-flowing rivulets, streams, ponds and marshland that will support the re-establishment of the indigenous ecology.
    Download Hi-Res Image

    Image: SWA

    Image 5 of 16

  • Ningbo Eco-Corridor - 3.3 km Living Filter
    Close Me!

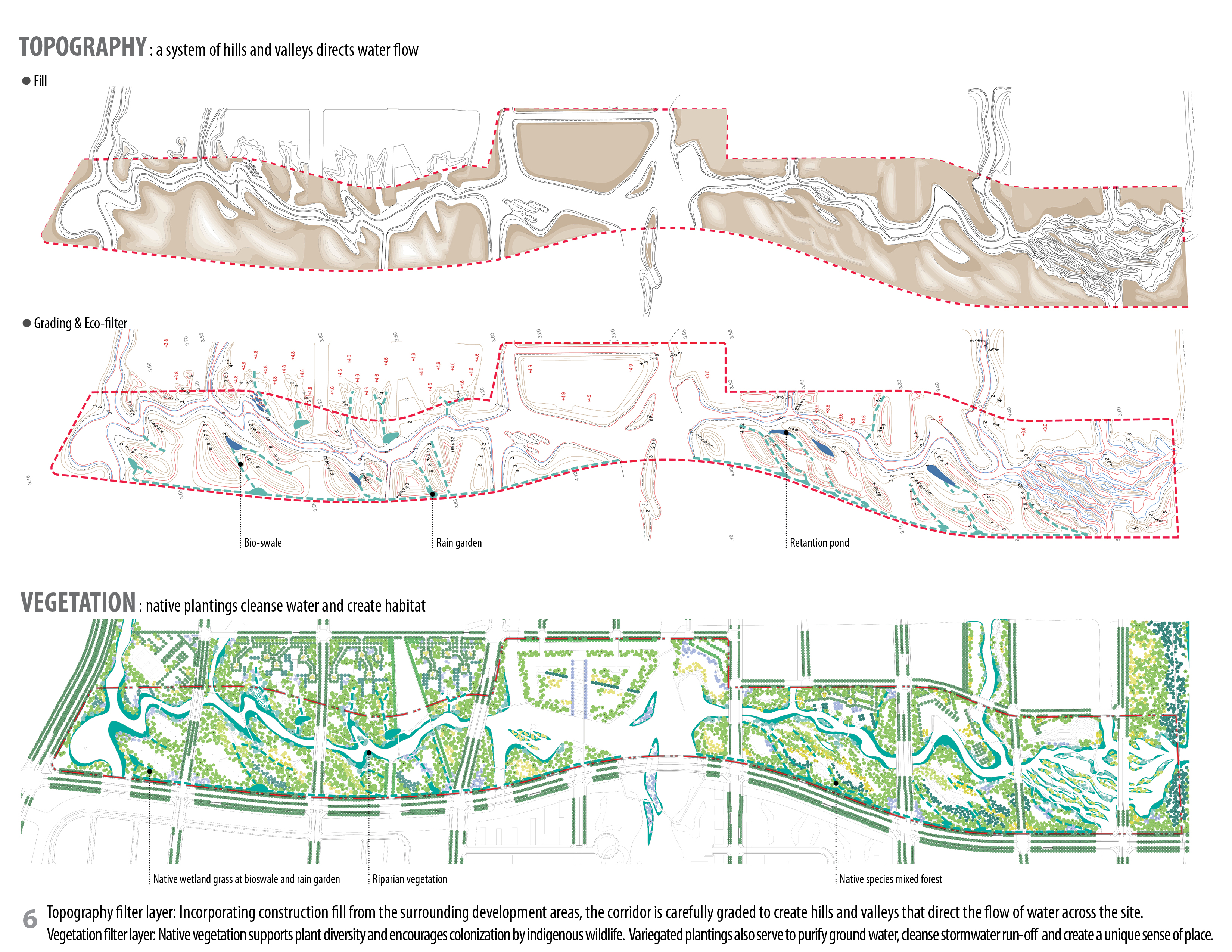

    Topography filter layers: Incorporating construction fill from the surrounding development areas, the corridor is carefully graded to create hills and valleys that direct the flow of water across the site.

    Vegetation filter layers: Native vegetation supports plant diversity and encourages colonization by indigenous wildlife. Variegated plantings also serve to purify ground water, cleanse stormwater run-off and create a unique sense of place.
    Download Hi-Res Image

    Image: SWA

    Image 6 of 16

  • Ningbo Eco-Corridor - 3.3 km Living Filter
    Close Me!

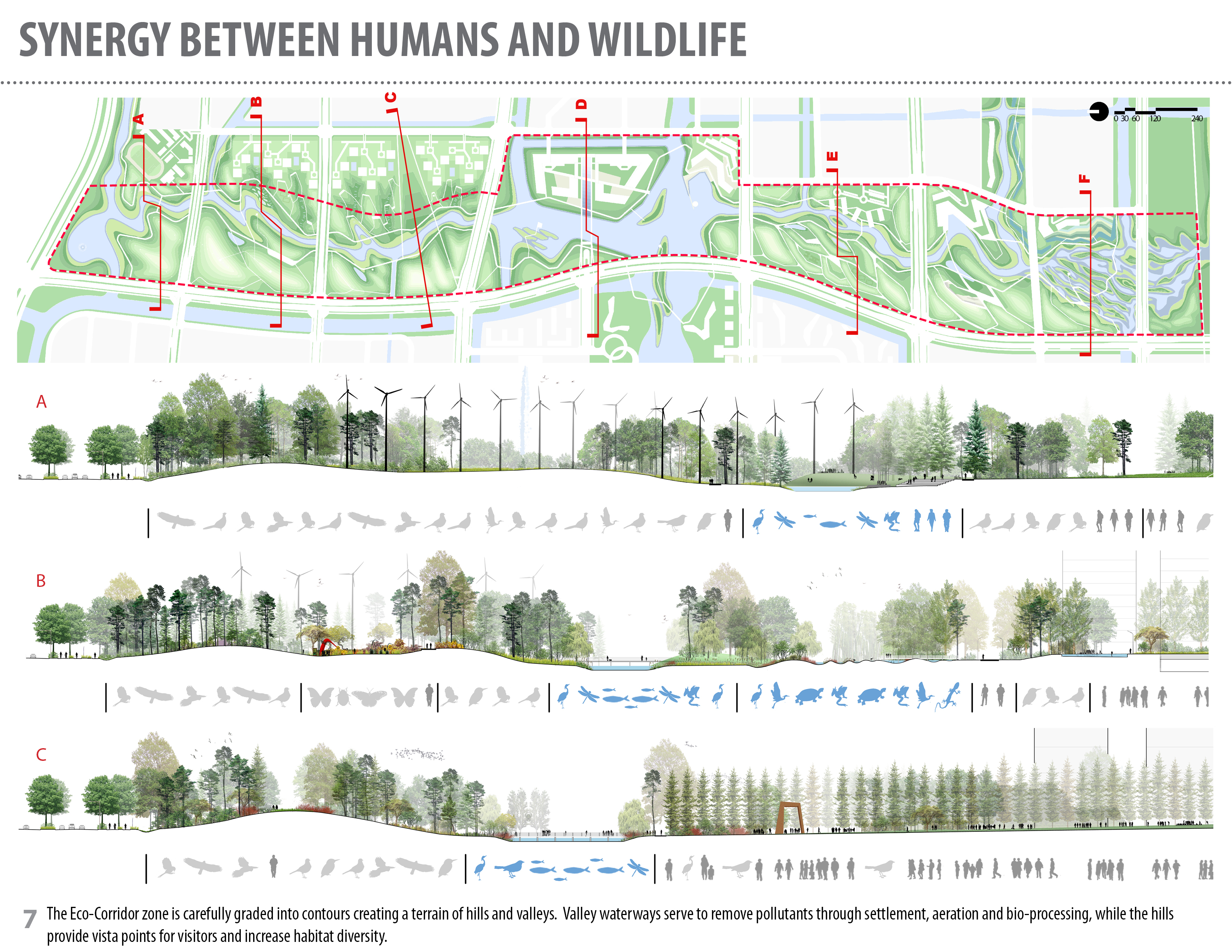

    The Eco-Corridor zone is carefully graded into contours creating a terrain of hills and valleys. Valley waterways serve to remove pollutants through settlement, aeration and bio-processing, while the hills provide vista points for visitors and increase habitat diversity.
    Download Hi-Res Image

    Image: SWA

    Image 7 of 16

  • Ningbo Eco-Corridor - 3.3 km Living Filter
    Close Me!

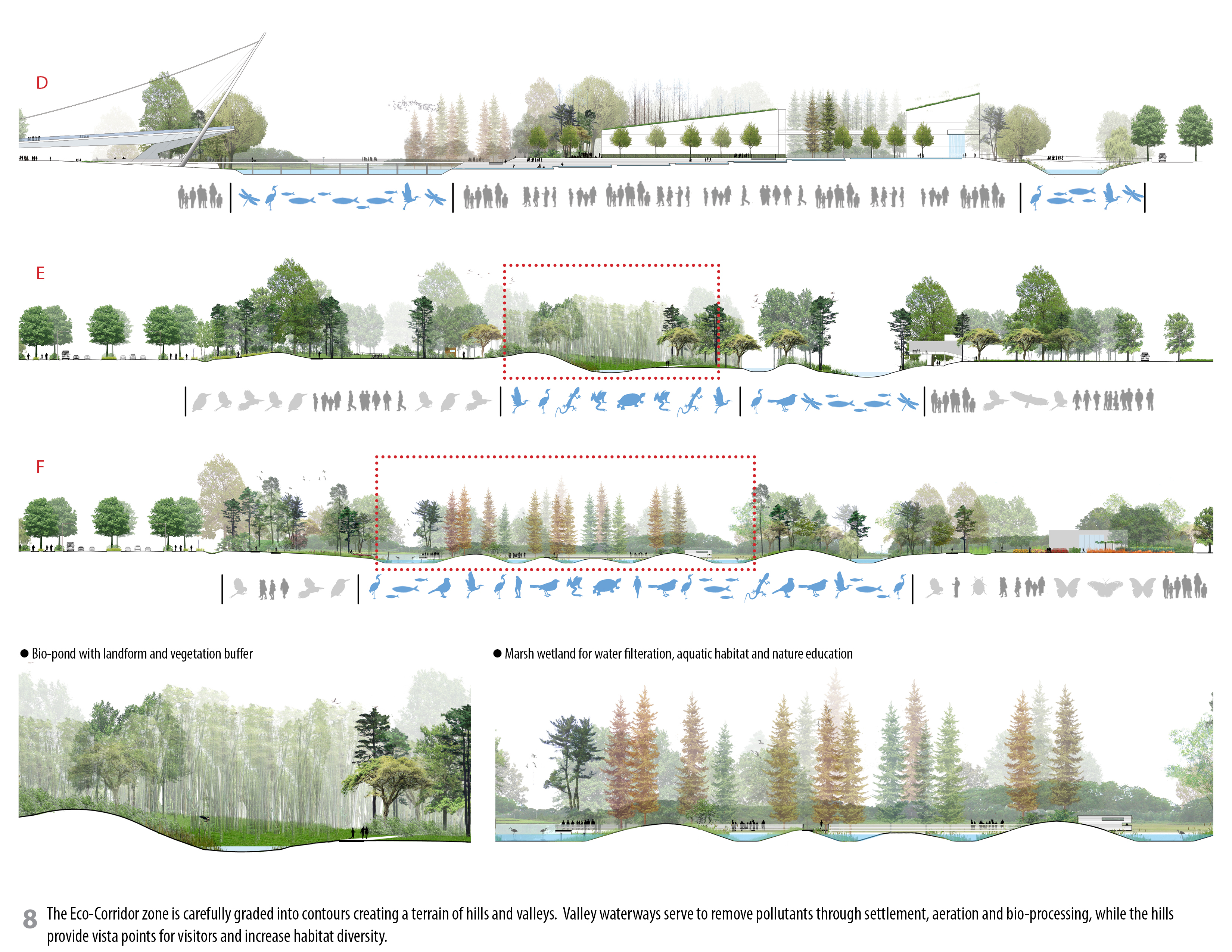

    The Eco-Corridor zone is carefully graded into contours creating a terrain of hills and valleys. Valley waterways serve to remove pollutants through settlement, aeration and bio-processing, while the hills provide vista points for visitors and increase habitat diversity.
    Download Hi-Res Image

    Image: SWA

    Image 8 of 16

  • Ningbo Eco-Corridor - 3.3 km Living Filter
    Close Me!

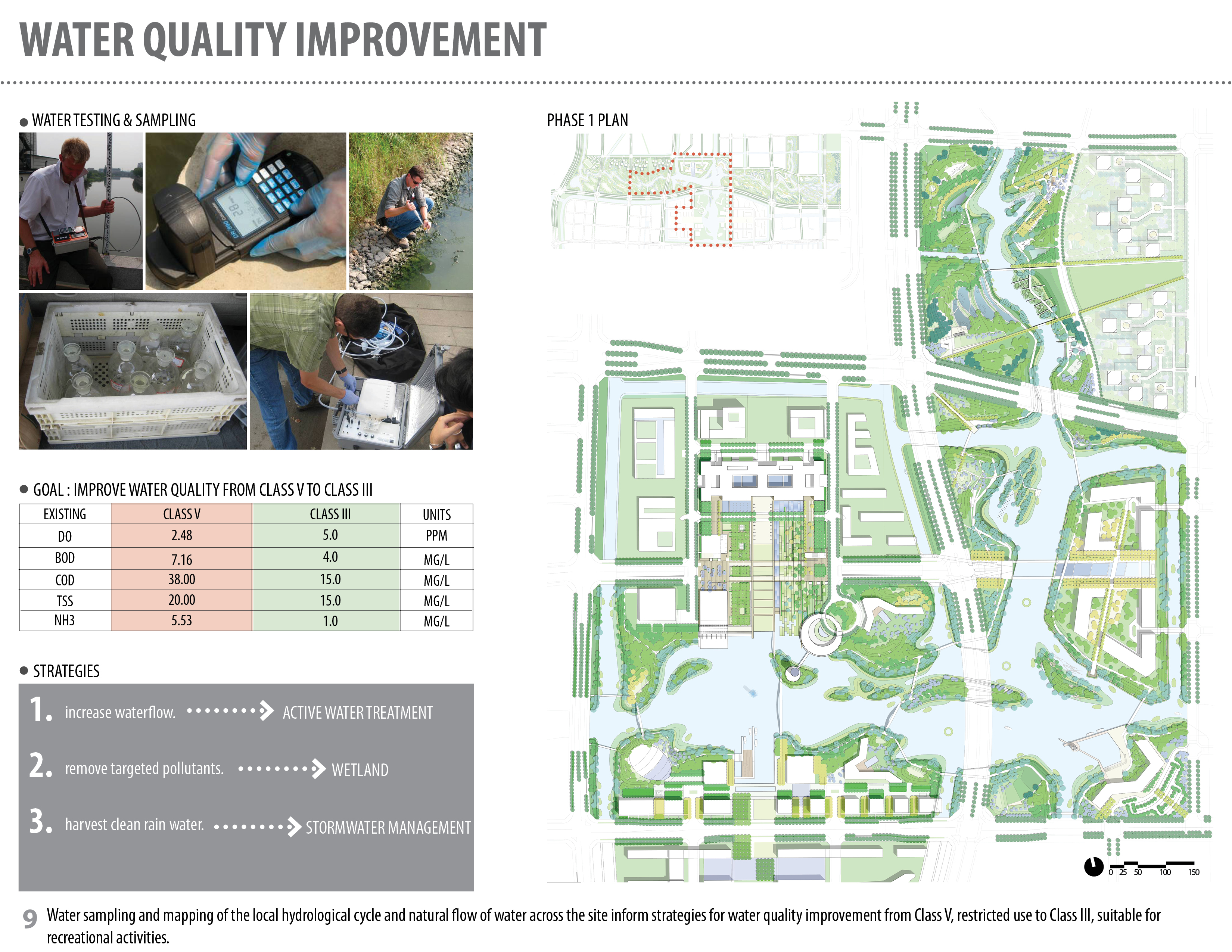

    Water sampling and mapping of the local hydrological cycle and natural flow of water across the site inform strategies for water quality improvement from Class V, restricted use to Class III, suitable for recreational activities.
    Download Hi-Res Image

    Image: Hui-Li Lee, Jack Wu (photos)

    Image 9 of 16

  • Ningbo Eco-Corridor - 3.3 km Living Filter
    Close Me!

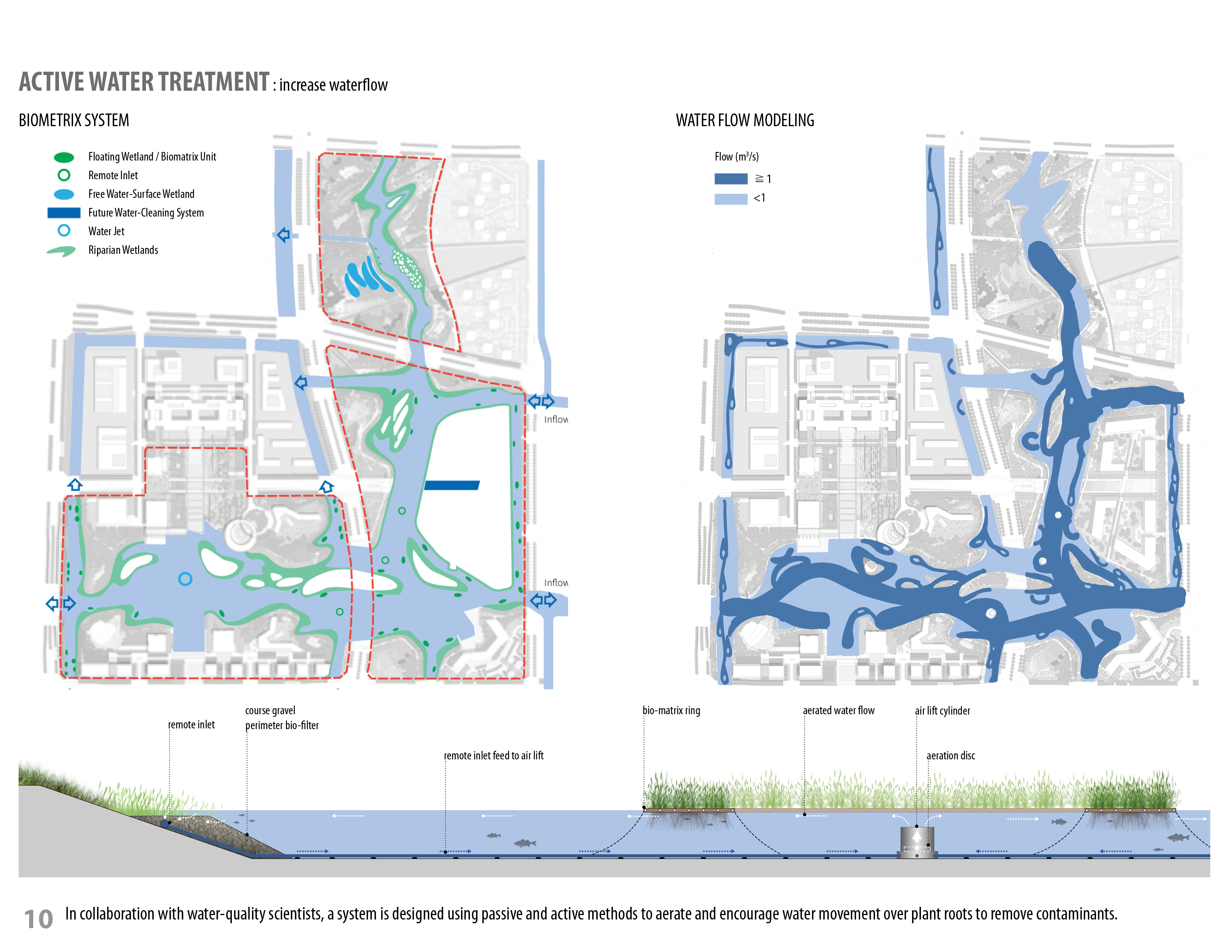

    In collaboration with water-quality scientists, a system is designed using passive and active methods to aerate and encourage water movement over plant roots to remove contaminants.
    Download Hi-Res Image

    Image: SWA

    Image 10 of 16

  • Ningbo Eco-Corridor - 3.3 km Living Filter
    Close Me!

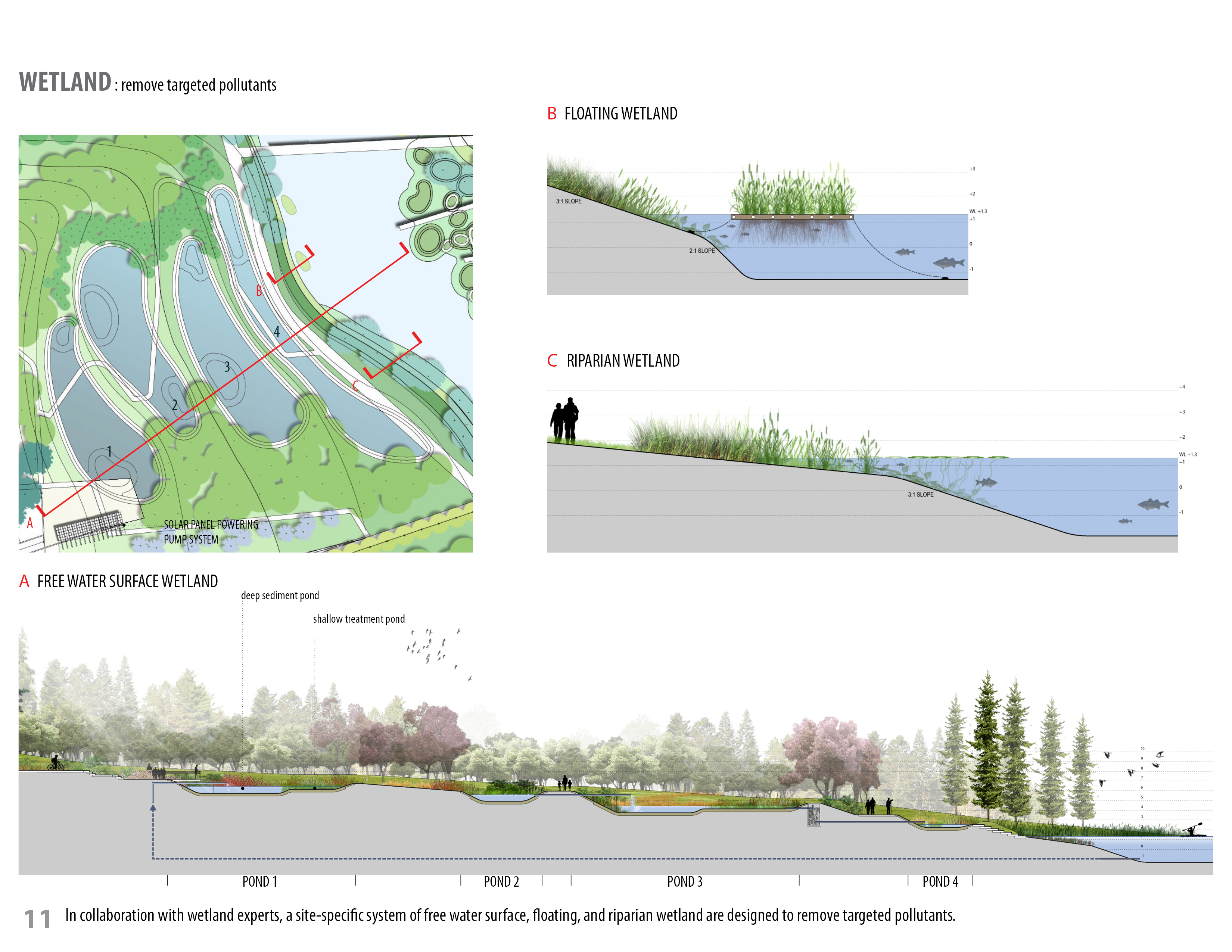

    In collaboration with wetland experts, a site-specific system of free water surface, floating, and riparian wetland are designed to remove targeted pollutants.
    Download Hi-Res Image

    Image: SWA

    Image 11 of 16

  • Ningbo Eco-Corridor - 3.3 km Living Filter
    Close Me!

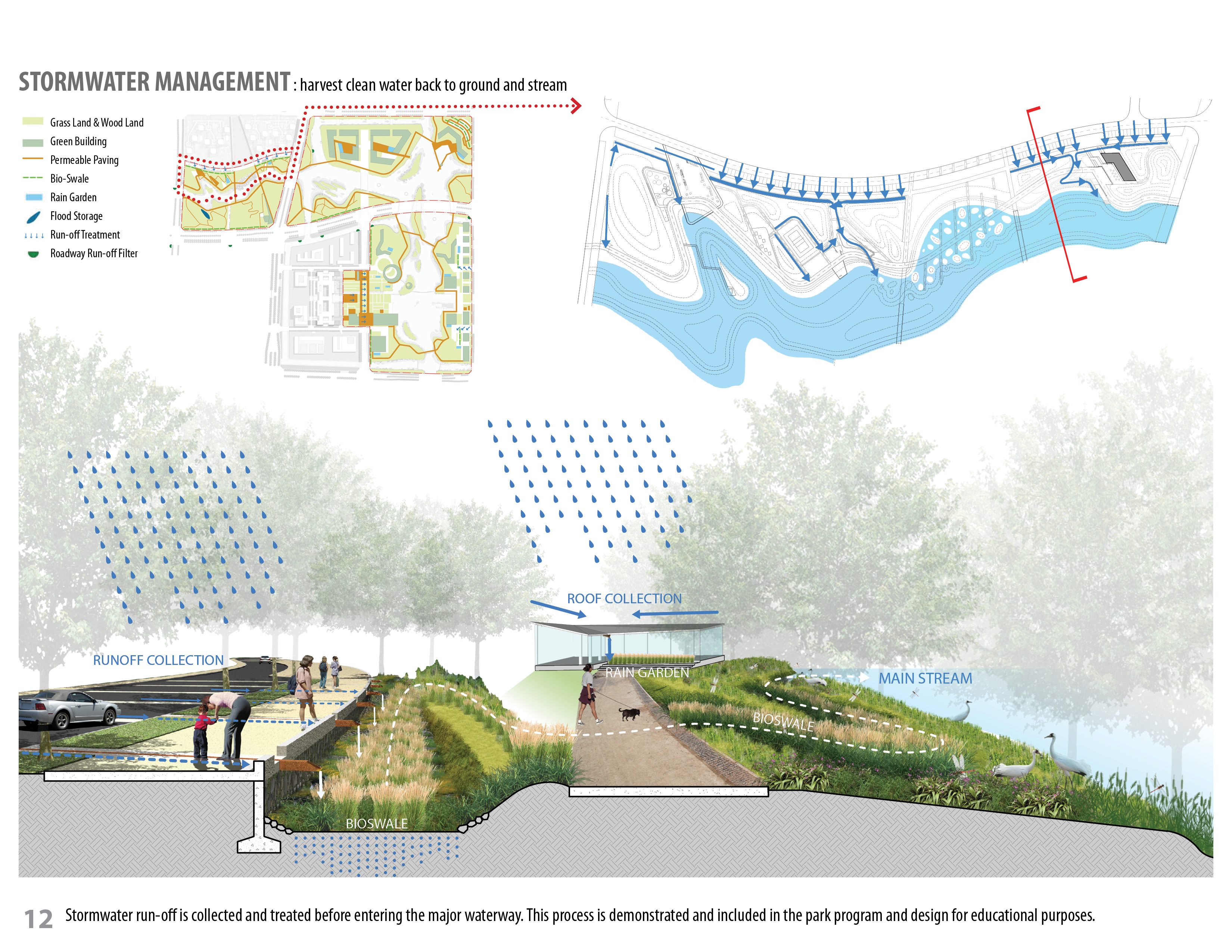

    Stormwater run-off is collected and treated before entering the major waterway. This process is demonstrated and included in the park program and design for educational purposes.
    Download Hi-Res Image

    Image: SWA

    Image 12 of 16

  • Ningbo Eco-Corridor - 3.3 km Living Filter
    Close Me!

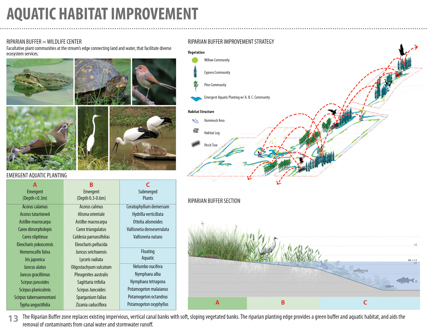

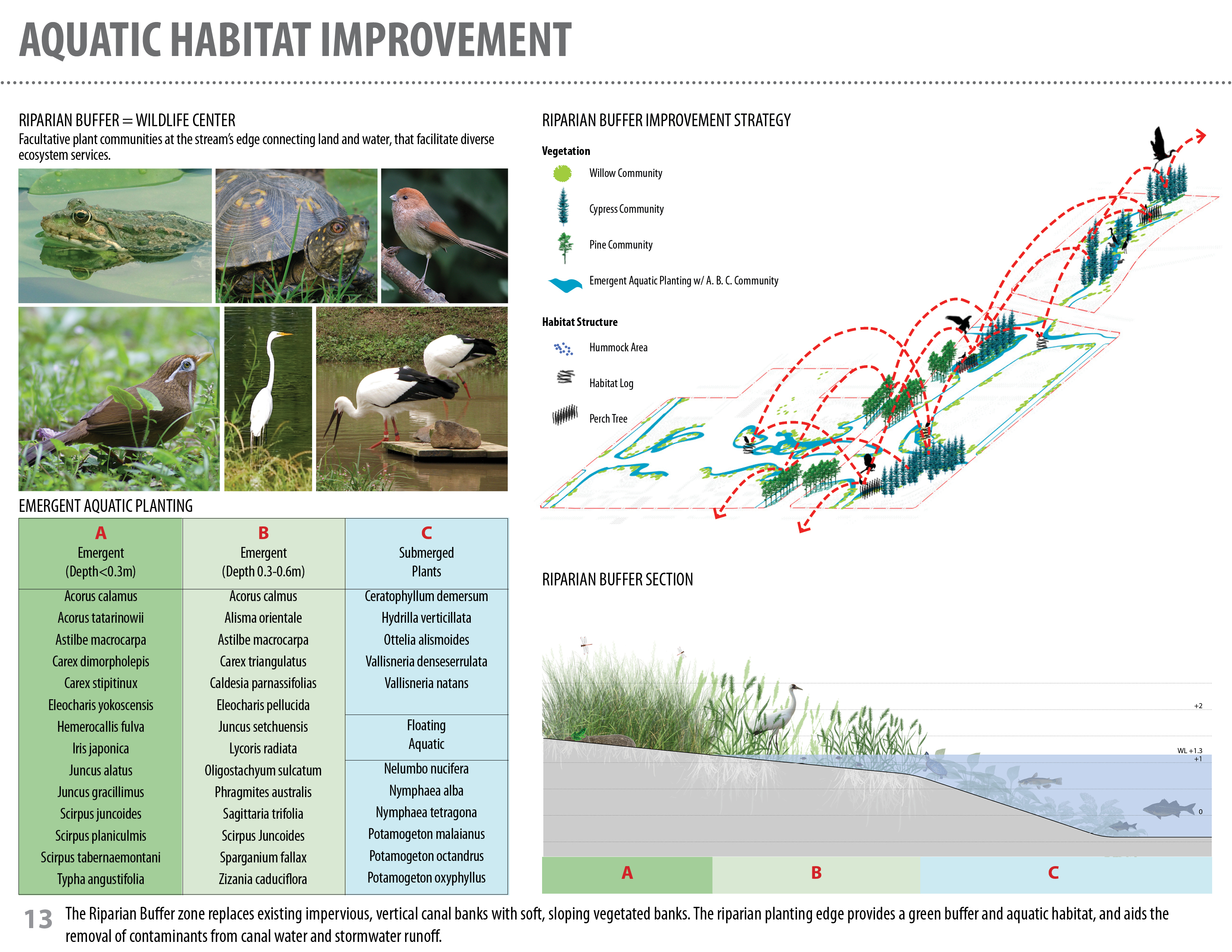

    The Riparian Buffer zone replaces existing impervious, vertical canal banks with soft, sloping vegetated banks. The riparian planting edge provides a green buffer and aquatic habitat, and aids the removal of contaminants from canal water and stormwater runoff.
    Download Hi-Res Image

    Image: Wildlife photos - Tom Fox and Paukrus, Buttersweet, Hiyashi Haka, Photokai, pelican on Flickr.com (Creative Commons License)

    Image 13 of 16

  • Ningbo Eco-Corridor - 3.3 km Living Filter
    Close Me!

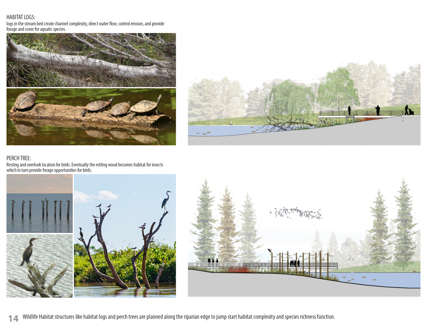

    Wildlife Habitat structures like habitat logs and perch trees are planned along the riparian edge to jump start habitat complexity and species richness function.
    Download Hi-Res Image

    Image: Habitat logs photos - Herrera Environmental Consultants and rhlinnxgny on Flickr.com (CC License) Perch Tree photos: Lumag00, Lorianne Disabato, Tombako on Flickr.com (CC License)

    Image 14 of 16

  • Ningbo Eco-Corridor - 3.3 km Living Filter
    Close Me!

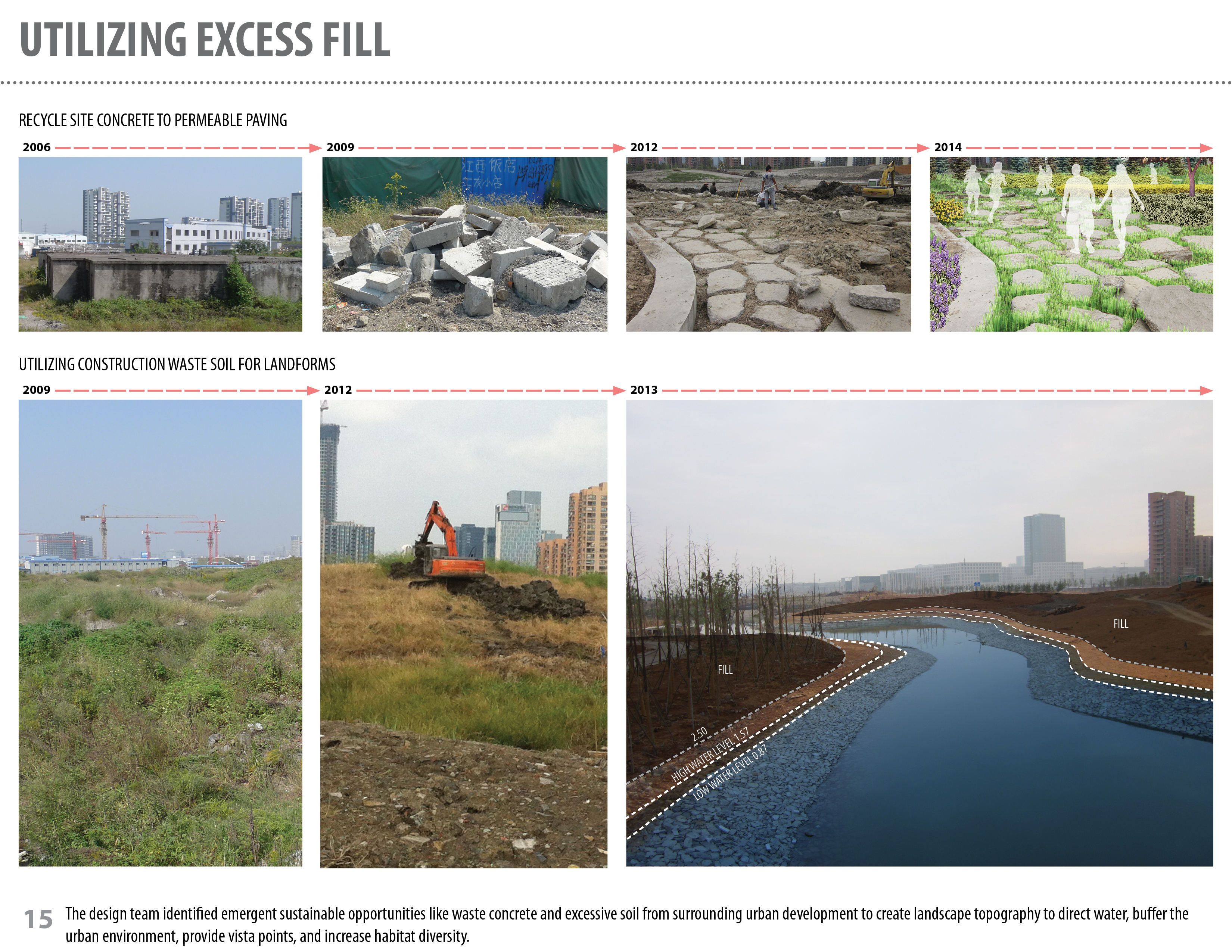

    The design team identified emergent sustainable opportunities like waste concrete and excessive soil from surrounding urban development to create landscape topography to direct water, buffer the urban environment, provide vista points, and increase habitat diversity.
    Download Hi-Res Image

    Image: Chih-Wei Lin, Chih-Wei Chang, Jack Wu (site photos)

    Image 15 of 16

  • Ningbo Eco-Corridor - 3.3 km Living Filter
    Close Me!

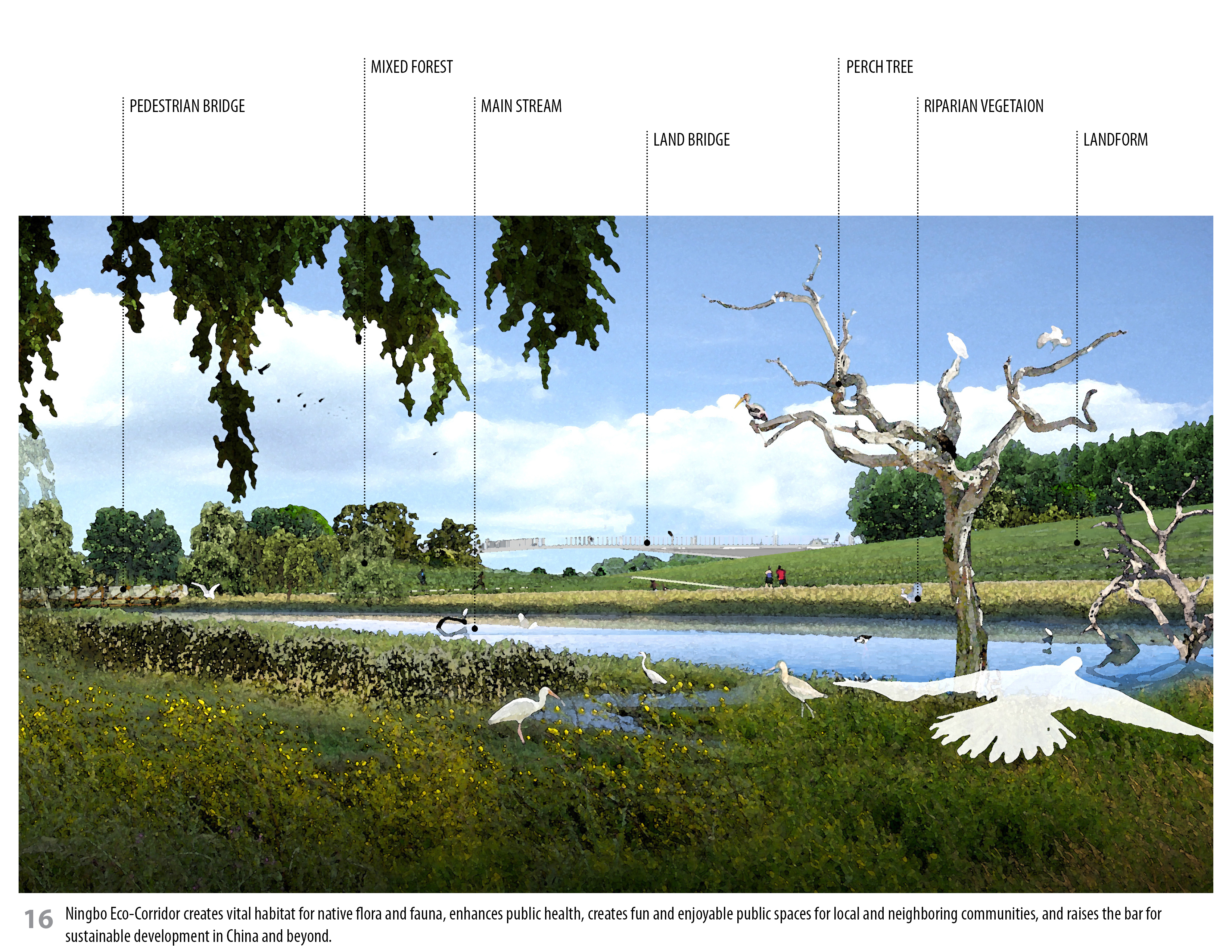

    Ningbo Eco-Corridor creates vital habitat for native flora and fauna, enhances public health, creates fun and enjoyable public spaces for local and neighboring communities, and raises the bar for sustainable development in China and beyond.
    Download Hi-Res Image

    Image: SWA

    Image 16 of 16

Project Statement

Through the innovative synthesis of topography, hydrology and vegetation, the Ningbo Eco-Corridor project transforms an uninhabitable brownfield into a 3.3km long “living filter” designed to restore a rich and diverse ecosystem, create synergy between human activity and wildlife habitat, and serve as valuable teaching tool and model for sustainable urban expansion and development in China's rapidly advancing economy.

Project Narrative

The scale is astounding. What sets it apart, is the reality of the analysis. It is carefully considered, realistic, technically sound, and exciting. The rationality is clear and the design makes sense.
—2013 Professional Awards Jury

Background

Situated on China's eastern coastline in the heart of the Yangtze River Delta, with an urban population of 3.49 million (2010 Census), the city of Ningbo is one of China's oldest and best-known cities, a key port for foreign trade, and an important economic center. As with many other cities across the country, phenomenal population growth in recent years has put an enormous strain on infrastructure, posing a monumental challenge for the local government to accommodate urban densification while minimizing negative environmental impacts.

In 2002, with the intention of alleviating pressure on the Old City while setting a precedent for a balanced, ecological approach to urban expansion, the Ningbo Planning department called for a master plan for the creation of the “Ningbo Eastern New City.” The plan would include 6 square miles of mixed-use urban development organized around a signature “Eco-Corridor,” comprised of a linear network of green spaces in which humans, wildlife and plants could inhabit, co-exist, and thrive.

Eco-Regional Context

Ningbo is situated in the southern part of Changjiang Plain Evergreen Forest Eco-Region within the low-lying Changjiang (Yangtze) River delta. This eco-region was historically characterized by extensive evergreen oak forests and reed swamps surrounding seasonally-inundated lake basins. Centuries of agriculture and recent urban development have resulted in a significant loss of wetland and aquatic habitat. The few wetlands that remain provide vital habitat for migratory birds such as oriental white storks, swan geese, and Siberian and white-naped cranes, and aquatic animals such as Yangtze River dolphins, Yangtze alligators, Chinese water deer, and otters.

Recognizing that wetland and aquatic habitats hold the greatest conservation significance for this eco-region, the design team focused its energies on wetland restoration as the impetus for a site-specific intervention that would have historical and cultural relevance in this new era of eco-consciousness.

Site Investigation

The Ningbo region is characterized by a canal system that historically performed a set of functions including flood control, irrigation and transportation. Within the Eco-Corridor site, the canals had become severely degraded with the introduction of industrial uses in the absence of effective zoning and pollution controls. As successive generations of factories were built, contaminated soil from construction excavation was dumped illegally and randomly through out the area, with factory sewage and stormwater runoff allowed to flow untreated into the canals rendered stagnant by ad-hoc infill.

Knowing that an effective and meaningful intervention would require sufficient data about the underlying conditions of the site, a thorough analysis was conducted by the leading landscape architects and affiliated consultants--including water-quality scientists, wetland experts, and hydrologic engineers--in order to fully understand the existing conditions, map the local hydrological cycle and natural flow of water across the site, and identify potential synergies.

Implementation - Building a Living Filter

Out of this analysis emerged the concept of creating a microcosm of the Changjiang eco-region. A networked series of waterways organized by low, undulating hills was designed to treat polluted water from the established canal system, manage stormwater runoff from the newly developed areas, establish riparian zones for the restoration of wildlife habitat, and provide recreational and educational opportunities for the new inhabitants.

Hydrology: a new meandering watercourse to improve hydrological function
Replacing the existing system of dead-end and disconnected canals is a series of free-flowing rivulets, streams, ponds and marshland. The hydrological flow is designed to be slow and meandering, approximating the original conditions of the lowland floodplain, in order to support the re-establishment of the native ecology.

Through innovative bio-remediation technologies that mimic indigenous ecological processes, the newly constructed watercourse improves the existing quality of the canal water from Class V, restricted to industrial and agricultural uses and not fit for human habitation, to Class III, which is suitable for ecological restoration and recreational use.

Topography: a system of hills and valleys directs water flow
Incorporating fill from excavation in the surrounding development areas, the entire Eco-Corridor zone is carefully graded and shaped into contours creating a terrain of hills and valleys. The valley waterways serve to remove pollutants through settlement, aeration and bio-processing, allow retention for aquifer recharge, and highlight the different modalities of water as it moves across the site. The hills also serve to buffer the urban environment, frame views to the New City, provide vista points for visitors, and increase habitat diversity.

Vegetation: native plantings cleanse water and create habitat
Across this undulating landscape, the strategic placement of deciduous and evergreen species reflects aesthetic, programmatic, ecological, and climatic considerations. An emphasis on native vegetation supports the re-establishment of diverse plant communities along the length of the corridor, and encourages colonization by indigenous wildlife. Plantings along the riparian edge, and bio-swales and rain gardens throughout the site, cleanse stormwater run-off from the adjacent development and other building and hardscape areas. Plant selection also creates a unique sense of place: together with topographical variety, differentiation of species into groupings based on height, texture and color creates distinct spatial patterns.

Integration With the Urban Fabric

The Eco-Corridor serves as the spine of Ningbo New City's open space system, creating and connecting a variety of land uses. Extending 3.3 km, the Corridor merges seamlessly with the adjacent urban fabric and natural systems, creating a symbiotic relationship between the greenway and surrounding landscape.

By restoring the ecological network in this region, the Ningbo Eco-Corridor creates vital habitat for native flora and fauna, enhances public health, creates fun and enjoyable public spaces for local and neighboring communities, and raises the bar for sustainable development in China and beyond.
