Honor Award

Coastal Roulette: Planning Resilient Communities for Galveston Bay
Galveston Bay, TX

SWA Group, Houston
Client: The SSPEED Center at Rice University

  • Coastal Roulette: Planning Resilient Communities for Galveston Bay
    Close Me!

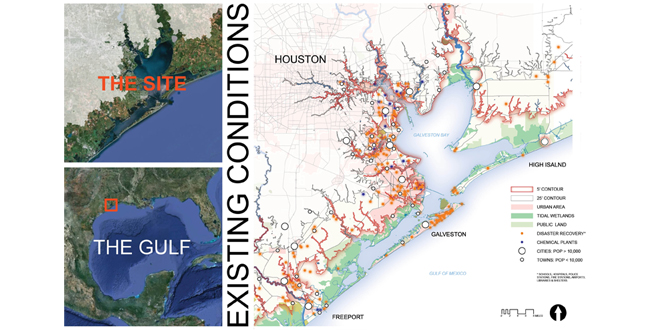

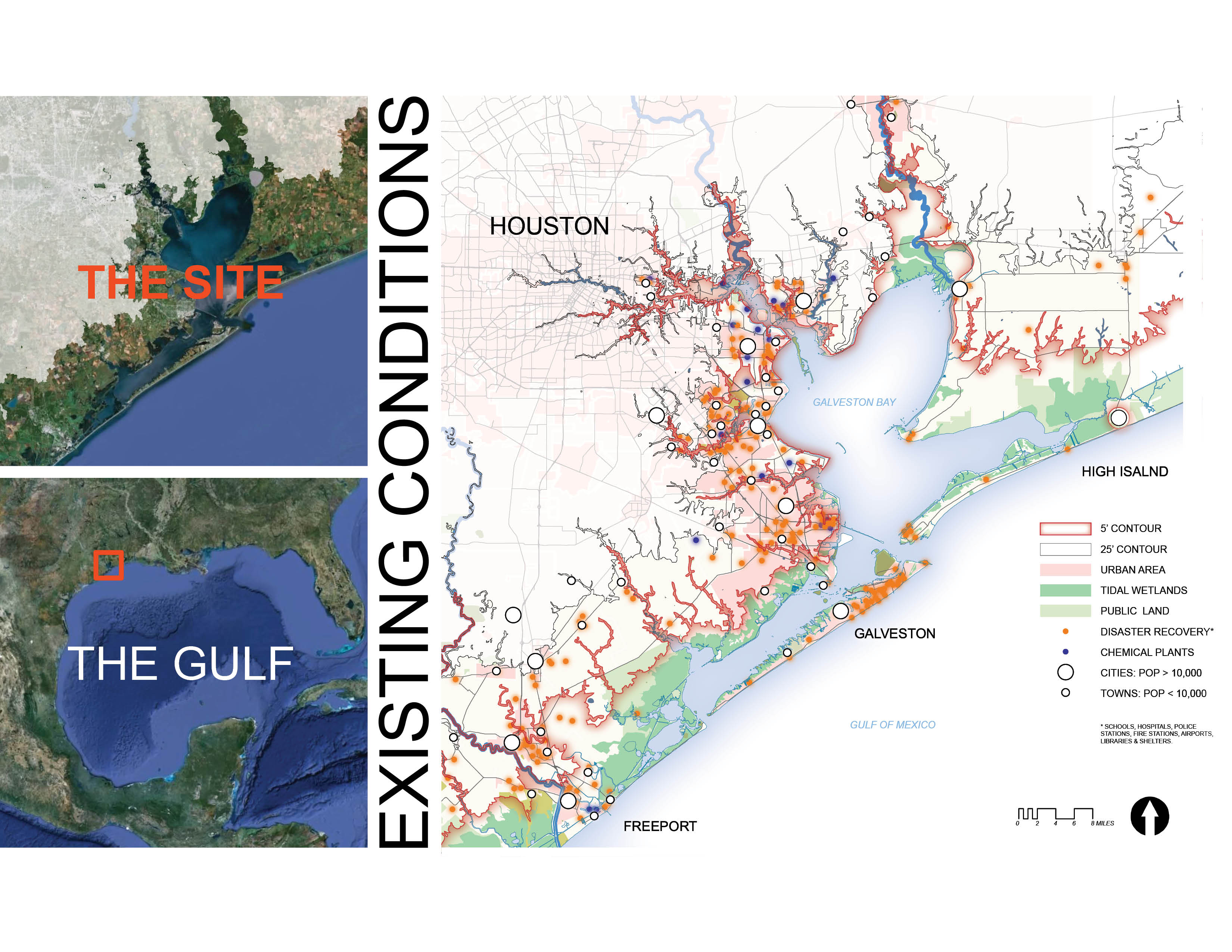

    The project area extends from Freeport, TX to High Island, TX
    Download Hi-Res Image

    Image: Aerials: Google Earth Map: SWA Group

    Image 1 of 14

  • Coastal Roulette: Planning Resilient Communities for Galveston Bay
    Close Me!

    Hurricane Ike’s rising waters stripped the Bolivar Peninsula of the majority of its structures. Man made drainage channels and nonnative lawns created vast “scour zones” where little native vegetation remained.
    Download Hi-Res Image

    Image: Bryan Carlile, Beck Geodetix

    Image 2 of 14

  • Coastal Roulette: Planning Resilient Communities for Galveston Bay
    Close Me!

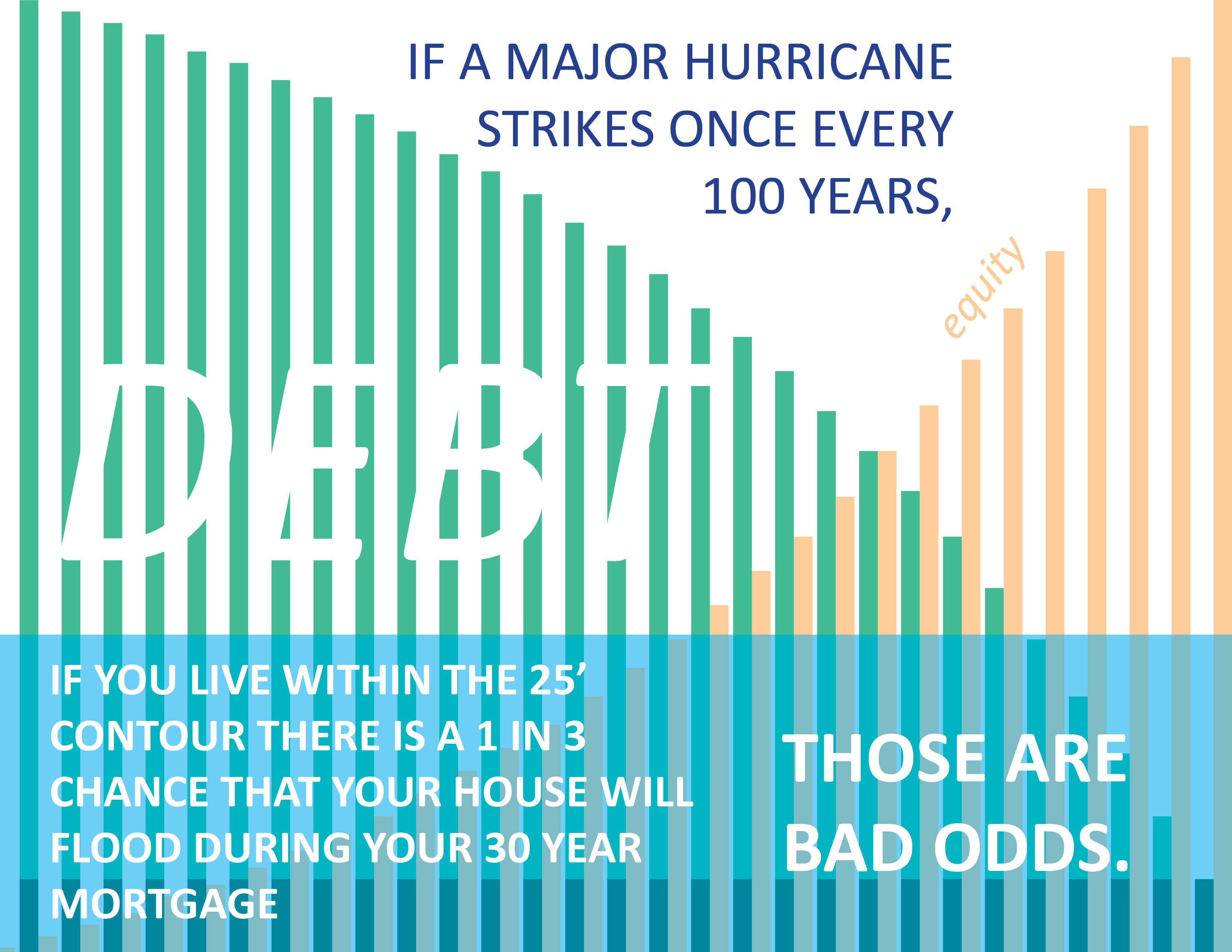

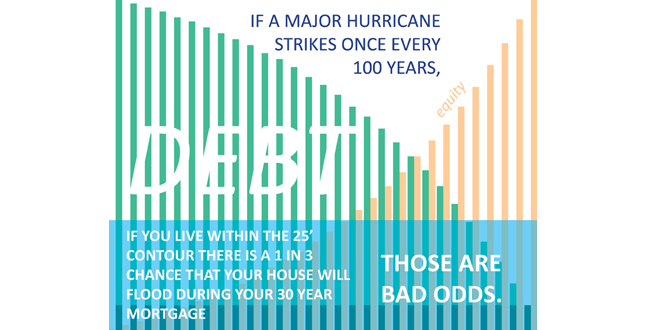

    Current building regulations leave property owners playing a dangerous financial game of Russian roulette with hurricane inundation.
    Download Hi-Res Image

    Image: SWA Group

    Image 3 of 14

  • Coastal Roulette: Planning Resilient Communities for Galveston Bay
    Close Me!

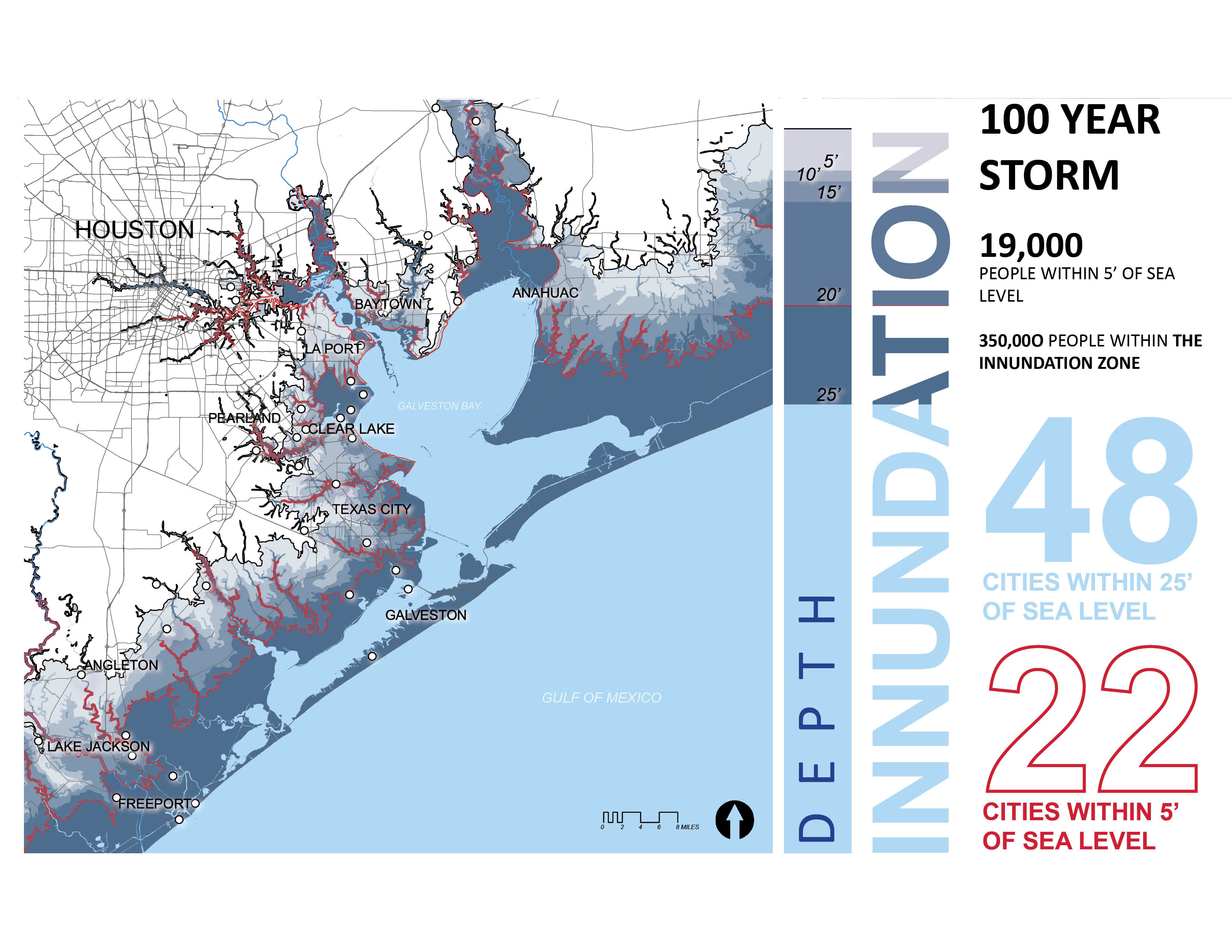

    Risks within the 100 year storm surge are clear and easily measured through both historic surge depth and modeled inundation. 350,000 people live within 25' of sea level and experience a gradient of storm surge.
    Download Hi-Res Image

    Image: SWA Group

    Image 4 of 14

  • Coastal Roulette: Planning Resilient Communities for Galveston Bay
    Close Me!

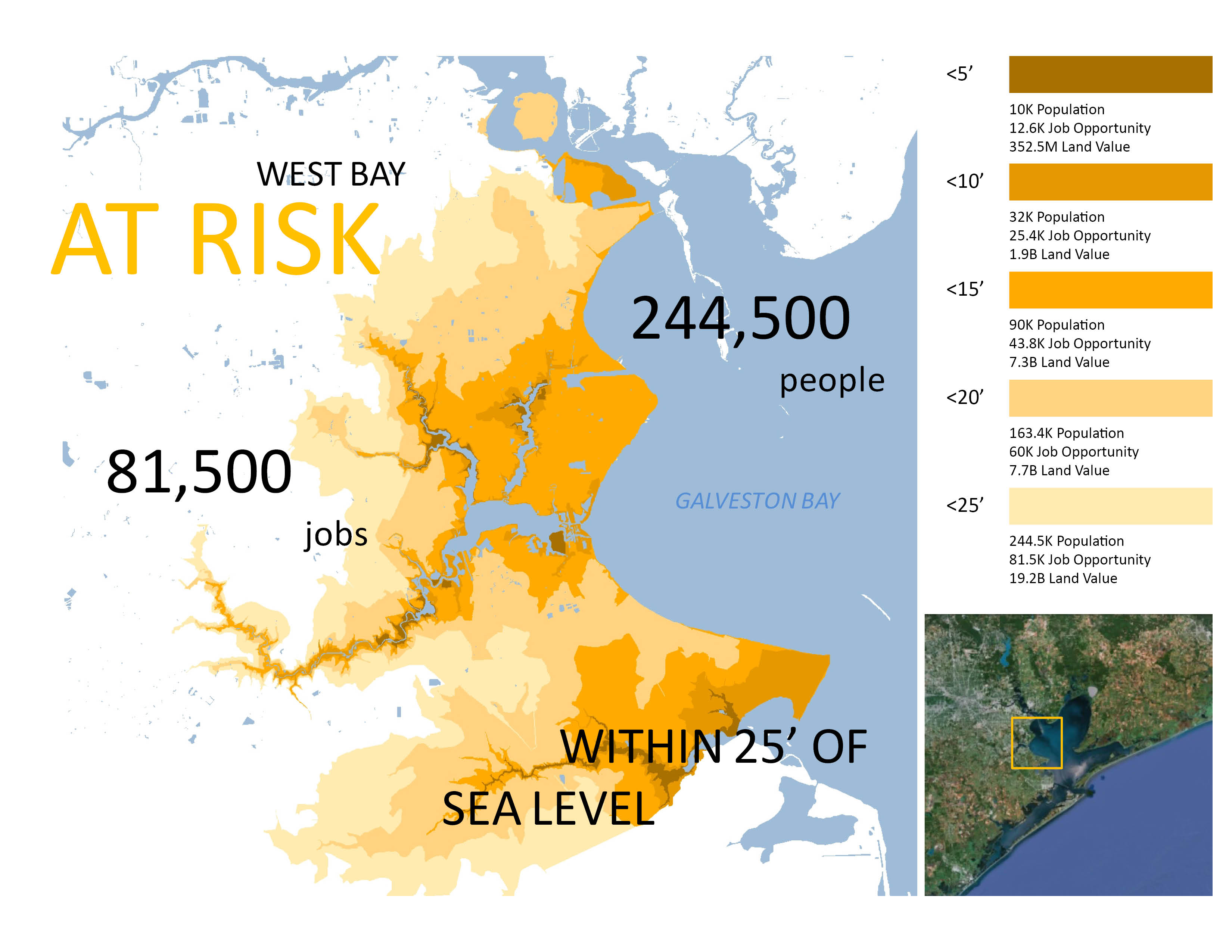

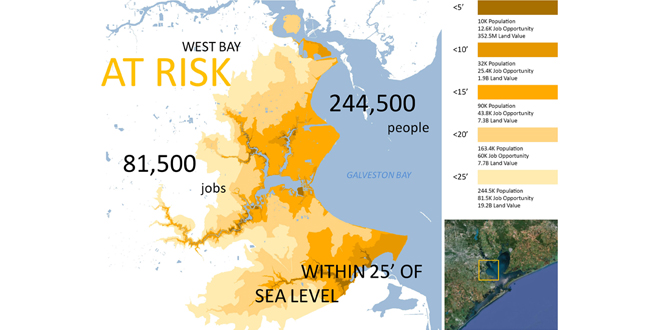

    Galveston Bay's funneling geometry places the communities of West Bay in harm's way; 244,500 people and 81,500 jobs exist within the 25' contour.
    Download Hi-Res Image

    Image: SWA Group, Aerial: Google Earth

    Image 5 of 14

  • Coastal Roulette: Planning Resilient Communities for Galveston Bay
    Close Me!

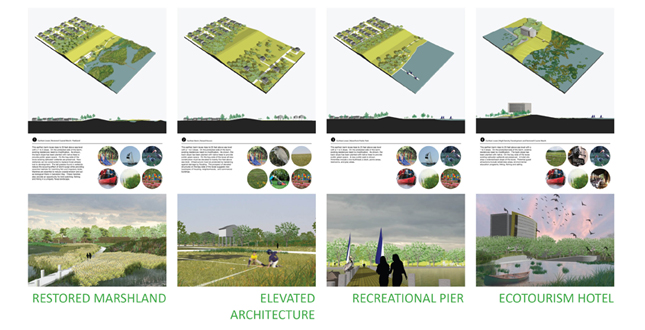

    Densely populated and historically important communities are protected with structural solutions. A National Recreation area would create a thick sponge to dissipate and protect inland communities.
    Download Hi-Res Image

    Image: Map: SWA Group, Aerial image of Galveston Bay: gurdonark on Flickr.com, Marsh photo: bruceberrien on Flickr.com, Image of ranch: laurenprofeta on Flickr.com, Image of houses: smart_growth on Flickr.com

    Image 6 of 14

  • Coastal Roulette: Planning Resilient Communities for Galveston Bay
    Close Me!

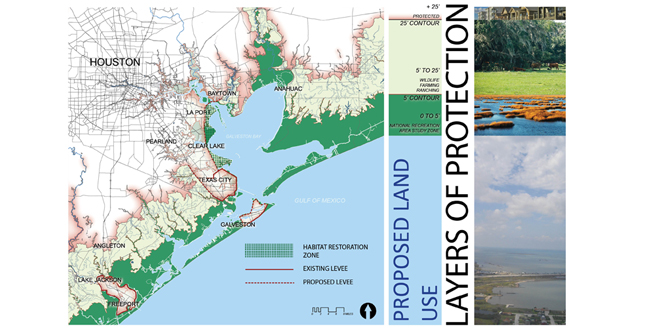

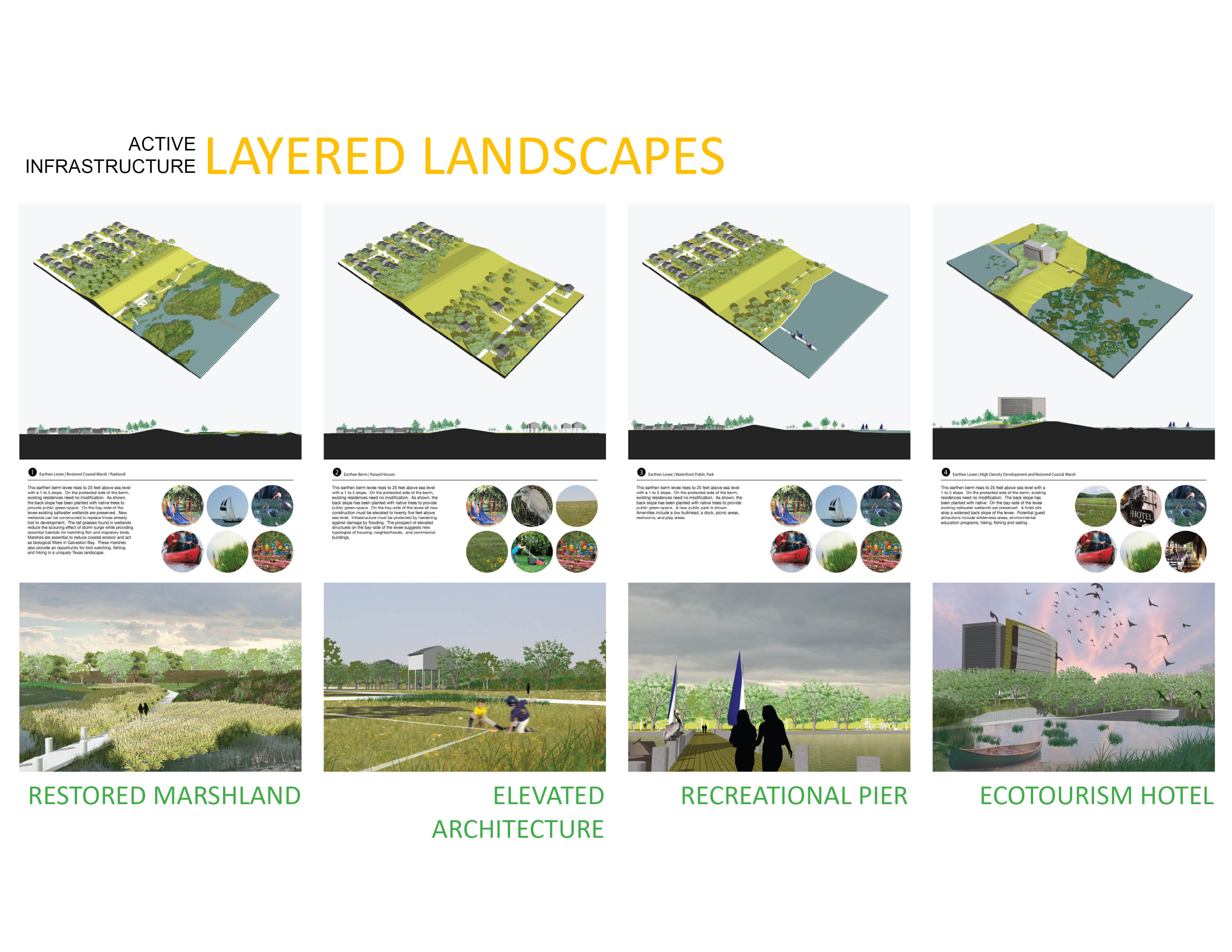

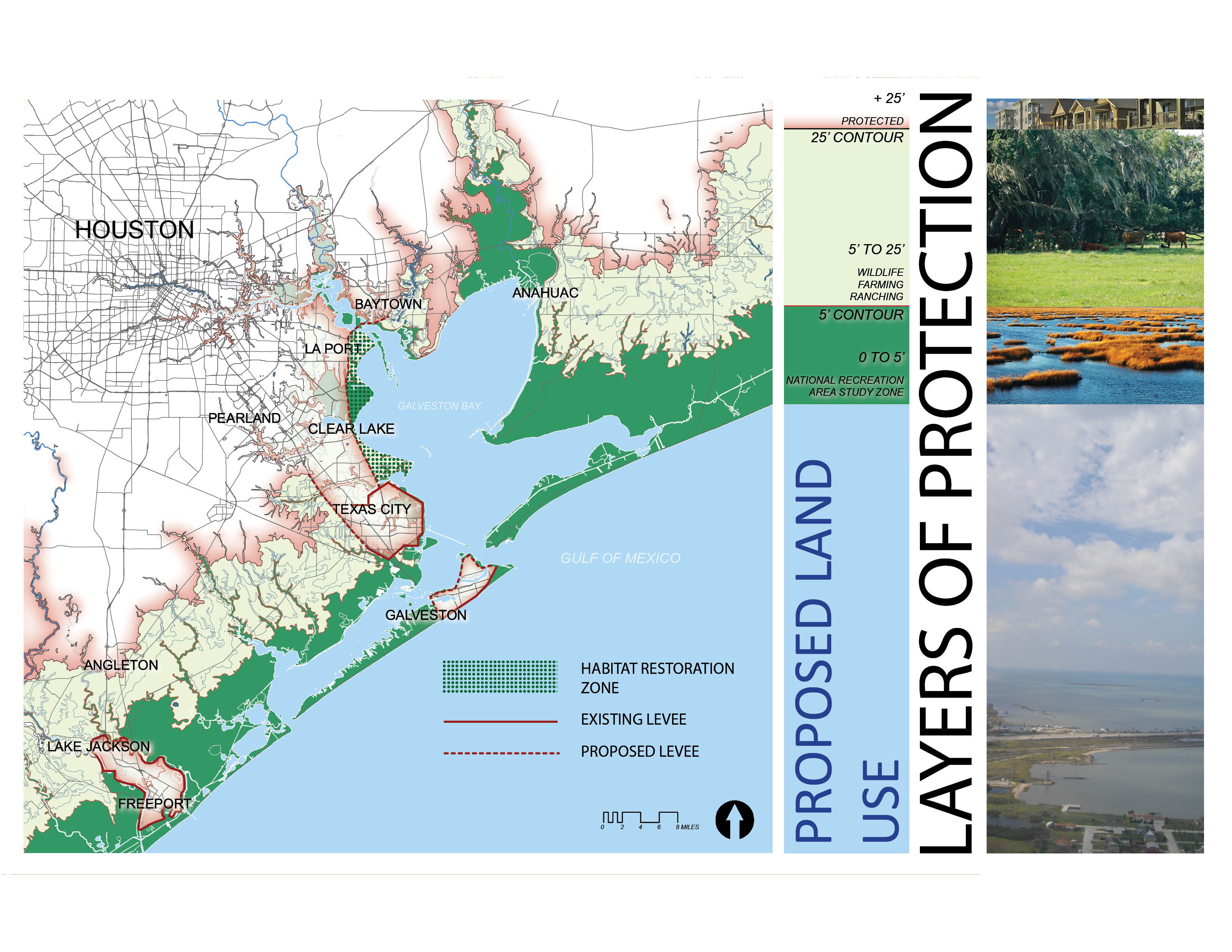

    Layered landscapes along the project's coast aim to protect large populations, bolster industry from storms, and reestablish lost ecologies. A National Recreation Area would create new economic opportunities within the riskiest areas.
    Download Hi-Res Image

    Image: SWA Group, University of Houston College of Architecture

    Image 7 of 14

  • Coastal Roulette: Planning Resilient Communities for Galveston Bay
    Close Me!

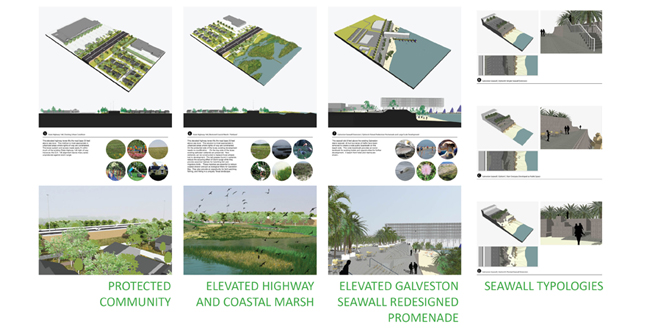

    Layered coastal protections continue. At the right, design strategies for Galveston Island's existing Seawall create new opportunities along the Galveston coastline by selectively thickening its iconic boardwalk.
    Download Hi-Res Image

    Image: SWA Group, University of Houston College of Architecture

    Image 8 of 14

  • Coastal Roulette: Planning Resilient Communities for Galveston Bay
    Close Me!

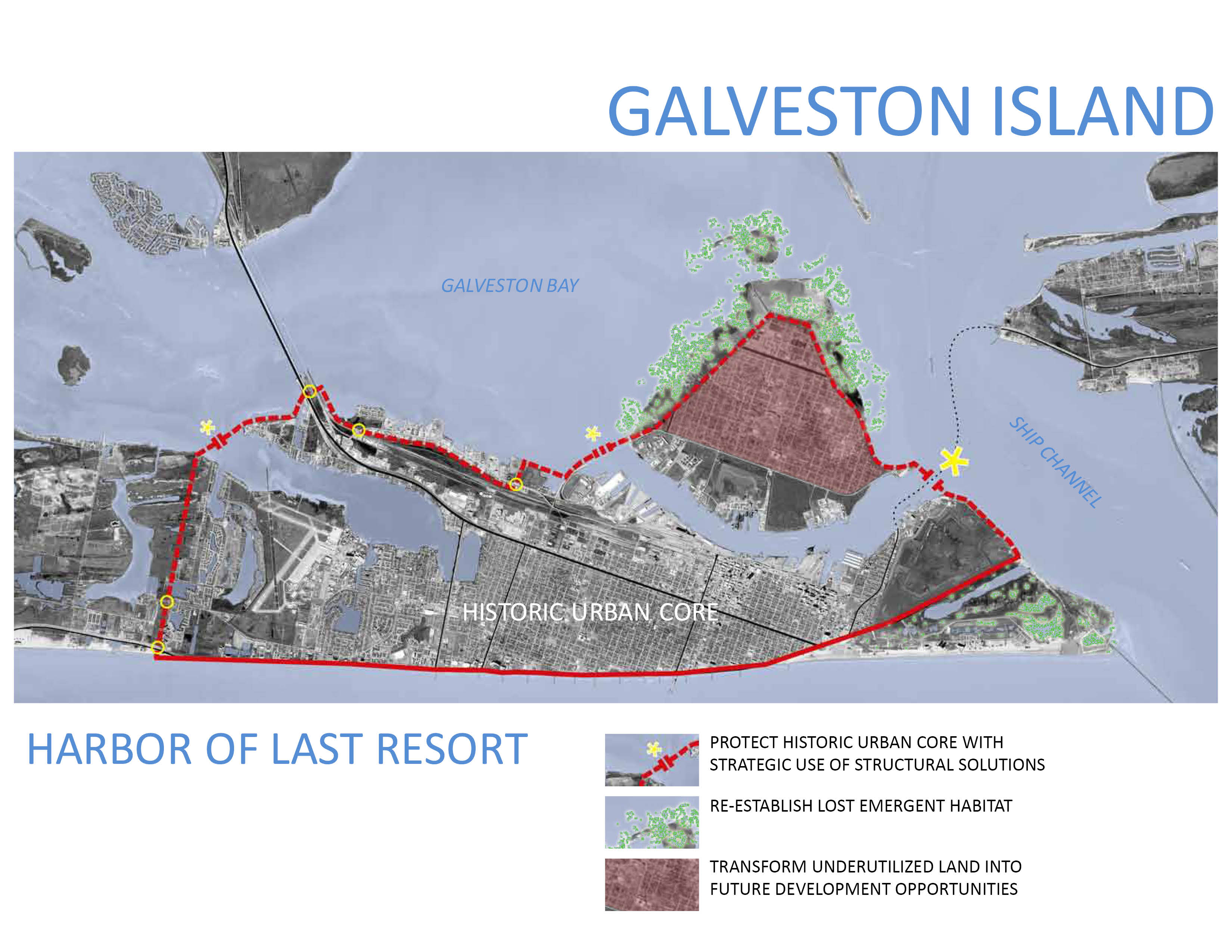

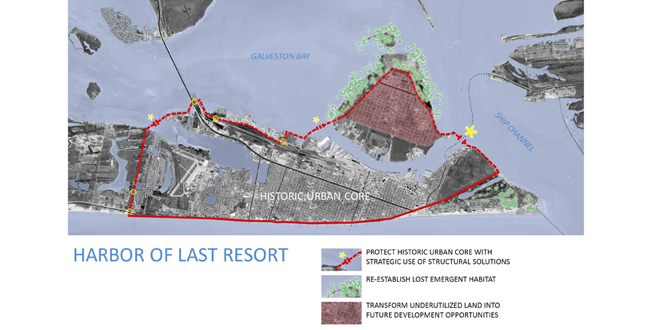

    Galveston Island is protected with intensive structural solutions to preserve its unique historical fabric and existing infrastructure. A dredge spoils island to the north is included within the wall to provide opportunities for future development.
    Download Hi-Res Image

    Image: SWA Group, University of Houston College of Architecture

    Image 9 of 14

  • Coastal Roulette: Planning Resilient Communities for Galveston Bay
    Close Me!

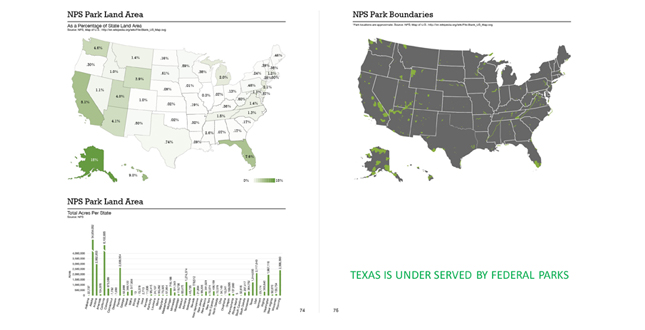

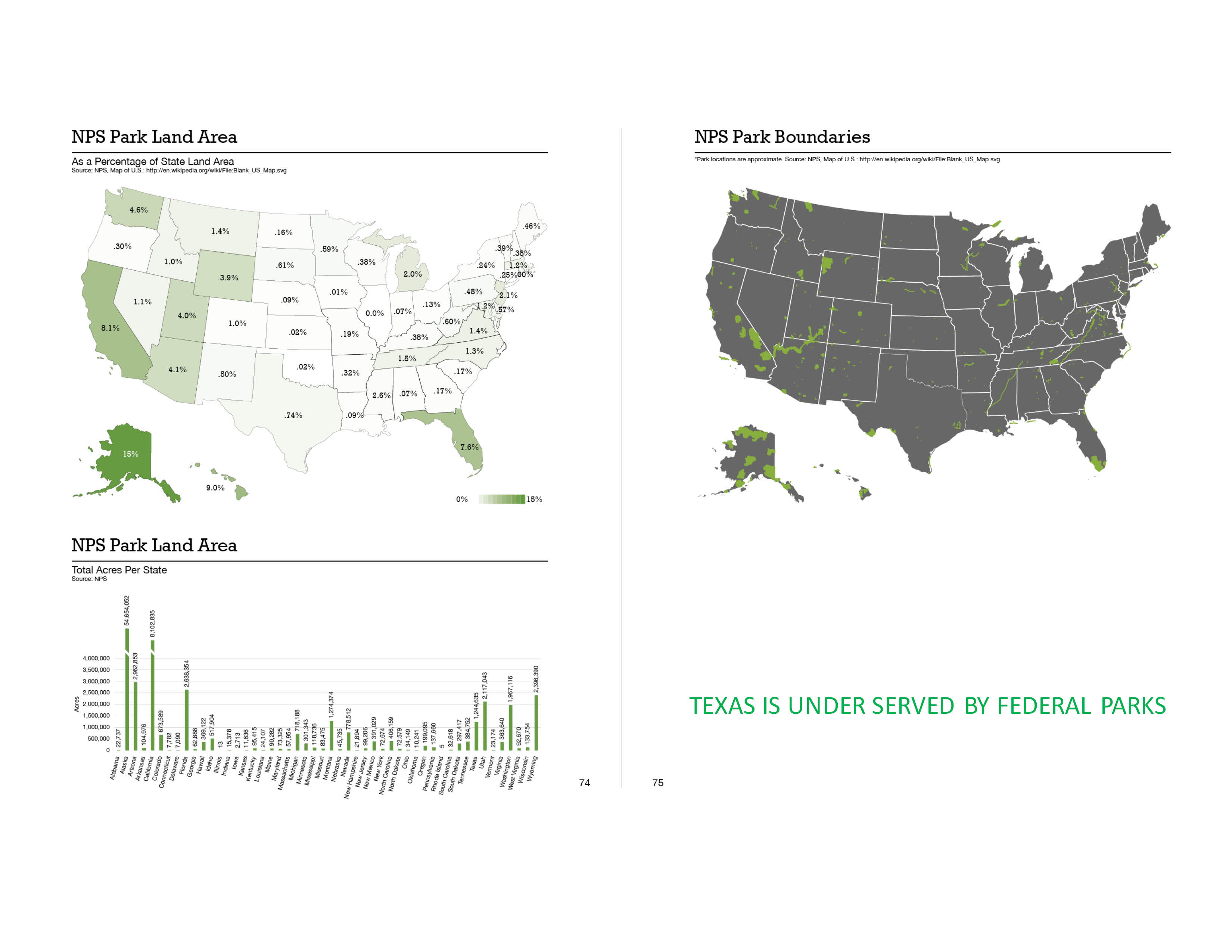

    Establishing a National Recreation Area within the most flood prone areas because Texas is under served by federal parks and coastal parks in general.
    Download Hi-Res Image

    Image: SWA Group, University of Houston College of Architecture

    Image 10 of 14

  • Coastal Roulette: Planning Resilient Communities for Galveston Bay
    Close Me!

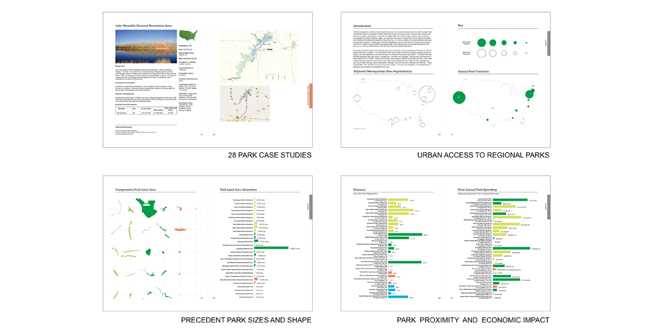

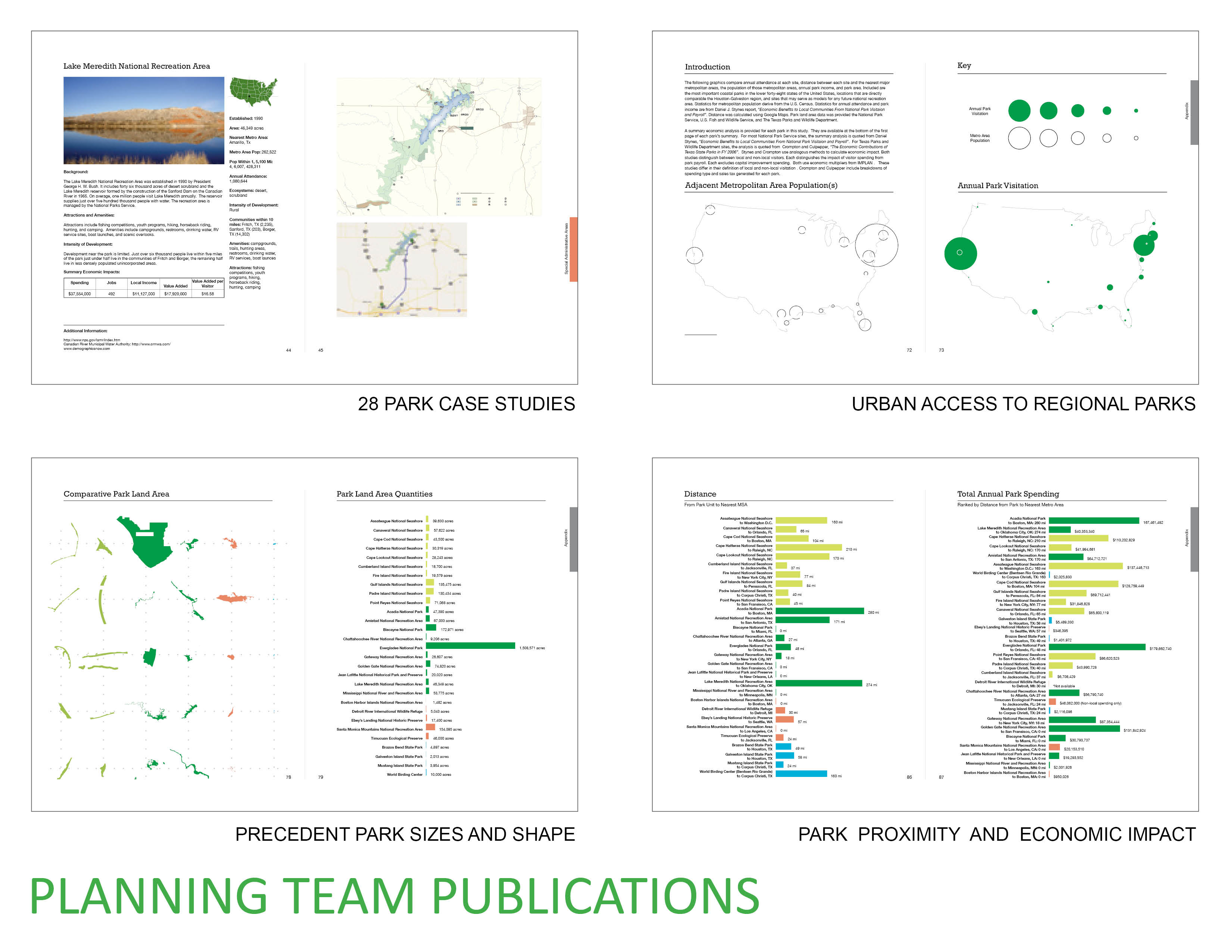

    Planning team publications have evaluated the 'vital statistics' of successful coastal parks. The Galveston Bay area is a prime candidate for a significant coastal park. Investigations include: 28 park case studies, urban access to regional parks, precedent parks sizes and shape, and park proximity and economic impact.
    Download Hi-Res Image

    Image: SWA Group, University of Houston College of Architecture

    Image 11 of 14

  • Coastal Roulette: Planning Resilient Communities for Galveston Bay
    Close Me!

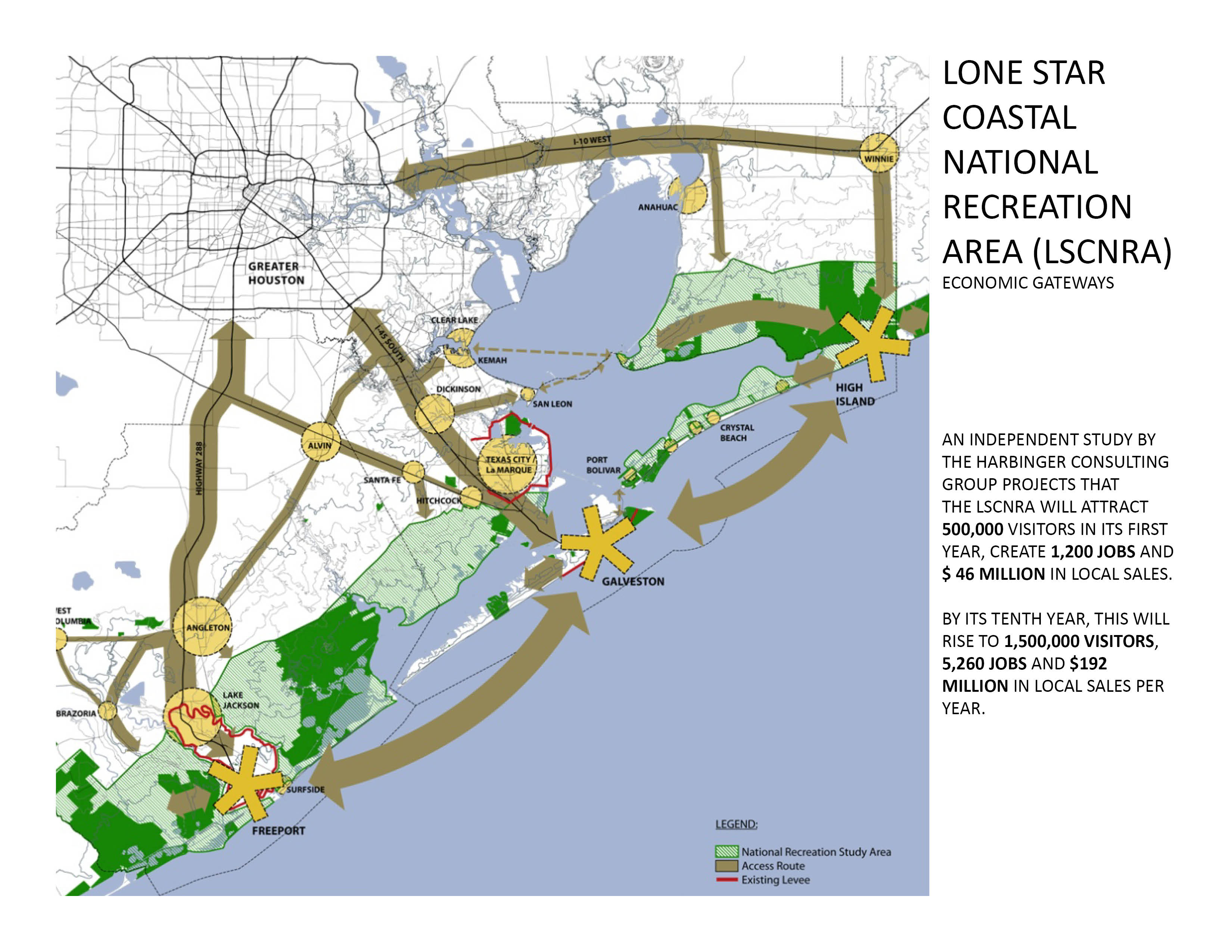

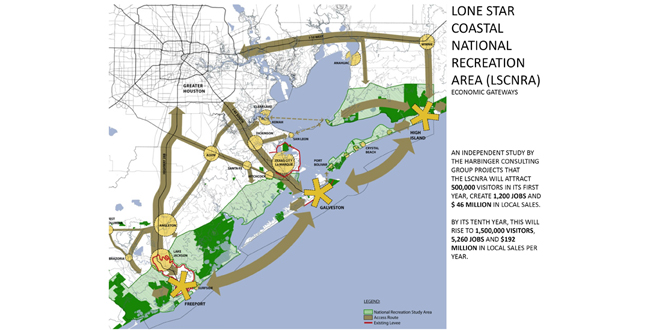

    Economic Gateways. An independent study by the Harbinger Consulting Group projects that the LSCNRA will attract 500,000 visitors in its first year , create 1,200 jobs and $46 million in local sales. By its tenth year, this will rise to 1,500,000 visitors, 5,260 jobs and $192 million in local sales per year.
    Download Hi-Res Image

    Image: University of Houston College of Architecture

    Image 12 of 14

  • Coastal Roulette: Planning Resilient Communities for Galveston Bay
    Close Me!

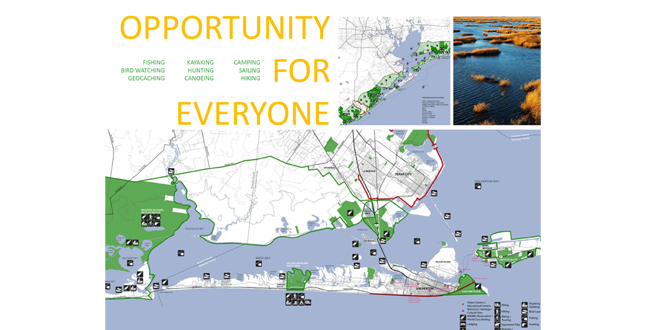

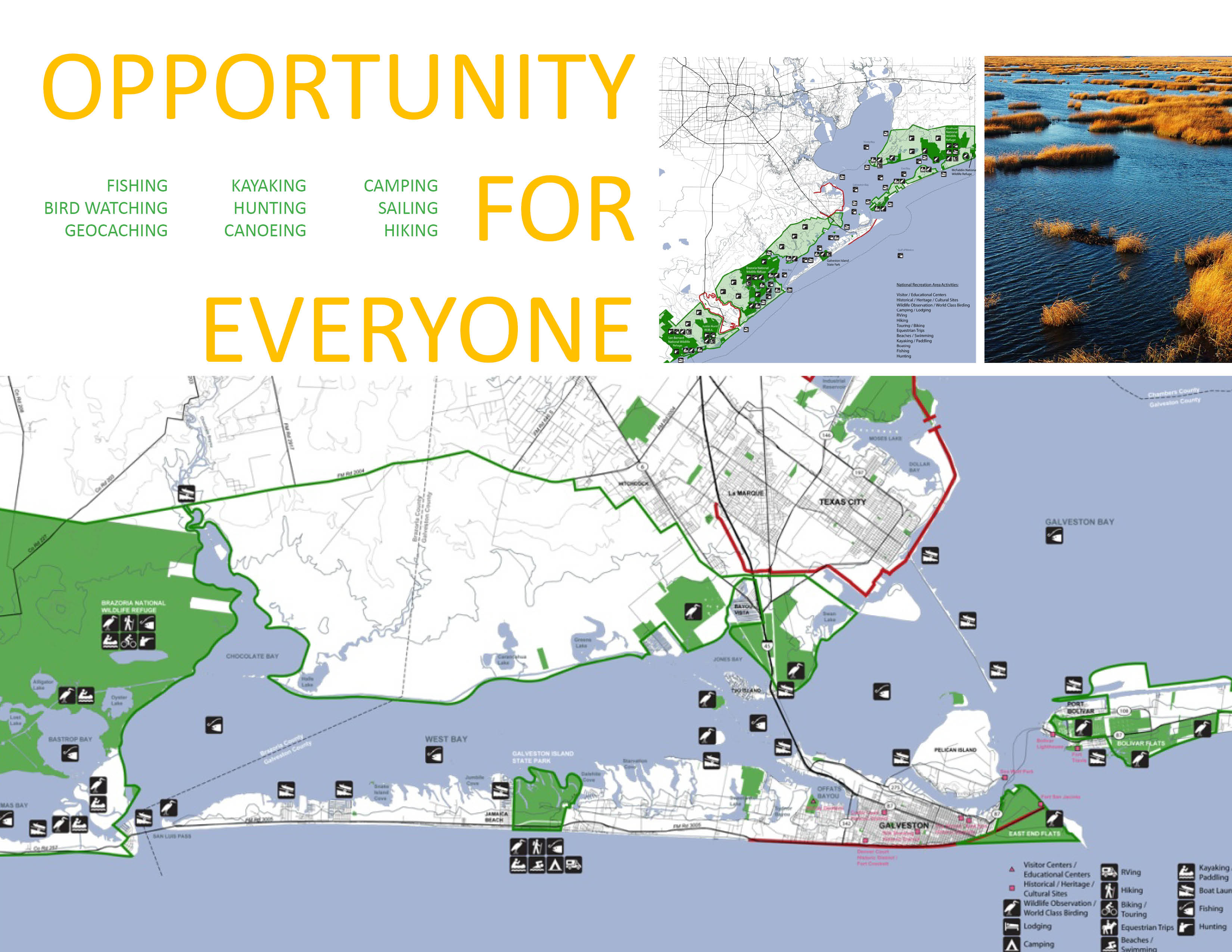

    Park programming and site research show that the Lone Star Coastal National Recreation Area would have opportunities for everyone. In addition to recreation, the park is an economic engine for at risk coastal areas.
    Download Hi-Res Image

    Image: Maps: University of Houston College of Architecture, Marsh photo: bruceberrien on Flickr.com

    Image 13 of 14

  • Coastal Roulette: Planning Resilient Communities for Galveston Bay
    Close Me!

    Another storm will strike. We have the tools to reduce its effects and create a more resilient, ecologic, and public coastline for future generations. Let's get to work!
    Download Hi-Res Image

    Image: USGS

    Image 14 of 14

Project Statement

Coastal populations worldwide are playing a dangerous game. Frequent hazardous storms along coastlines are a given, and yet we continue to place our heads in the sand when considering the future. This submission focuses on an innovative project in Galveston Bay serving as a model for proactively solving coastal planning challenges. The summary below demonstrates how we can reconnect to these valued landscapes while providing storm protection, economic stimulus, environmental benefits, and sustainable coastal communities.

Project Narrative

Resiliency is a job type that we’re increasingly being asked to consider more and more, including water and how planning affects that. The axonometric drawings are compelling and the message is that there is no one solution, it has to be layered and multi-pronged, with both architectural and natural solutions. They lay out their case quite effectively.
—2012 Professional Awards Jury

On September 13, 2008 Hurricane Ike struck the Upper Texas Coast, wreaking havoc on infrastructure and washing away entire communities. Labeled as a category two storm by wind speed, Ike surpassed all inundation damage predictions and changed the lives of millions of people in the region. While devastating, the storm was a considerably smaller version of the modeled “worst case scenario” in which bay surge tracks up the densely populated west shore of Galveston Bay and into the heavily industrialized Houston Ship Channel.

Historically, the mitigation of coastal storms has focused on the use of intensive structural solutions — single-purpose engineered barriers designed to protect against often inadequately modeled storms. Once these engineering feats realize their massive physical form, the public develops an attitude of complacency and invincibility against storm events. They are “behind the wall”. The submitting team references this phenomenon as the “moral hazard” where a false sense of security results in more coastal development, subpar construction standards, inadequate policy, and greater public risk.

As expected, shortly after Ike a proposal for a much longer, higher, wider, 100 mile long dike surfaced that would span and isolate all of Galveston Bay. Life defining interactions with the Gulf of Mexico would be severed and the cultural landscape destroyed not by nature, but ourselves.

Galveston Bay Process

The submitting team was engaged with local hydrologists, ecologists, geologists, and a university architecture department to create environmental/social/economic inventories, regional site analysis, proposed planning recommendations, and site specific design interventions.

Team hydrologists initially provided revised storm models derived from advanced engineering technologies. The 25 ft. elevation was defined as the limit of the 1% storm event and elevations 0 to 5 ft. were found to be susceptible to frequent inundation. These parameters were used to create a layered approach that responded to 2010 census data, a projected doubling of regional population in 25 years, current land values, emergency service facilities, limited evacuation routes, toxic dispersal potential, natural barrier island migration patterns, public open spaces, primary ecosystems identified by regional, national, and international ecologists, and a published team research report analyzing 28 significant state, national, and international parks relative to their economic sustainability, population proximity, and annual visitorship.

Recommendation 1: Structural and Non-structural Integration

Diverse tools are needed rather than the standard application of monolithic levees. Included in the team’s approach are both structural and non-structural solutions. Structural methods utilize constructed levees, walls, barriers and gates to block floodwaters. Non-structural methods regulate and discourage development in high risk areas and rely on existing and restored ecosystems. These natural systems rebound quickly after inundation and have proven to be significant economic resources for long-term sustainability.

Proposed structures occur where levees exist and protections can tie into existing topography. For example, the plan utilizes narrowing topography at the mouth of the Houston Ship Channel to create a simple gate structure to secure America’s second largest port. Shelters of last resort are identified and surrounded by robust, cost effective structural measures that create small pockets of defense rather than highly vulnerable linear barriers. These pockets all have existing economic bases, significant population centers, emergency service facilities, or historic relevance.

Non-structural elements guide current and future development to mitigate moral hazard concerns. Natural processes that make Galveston Bay one of the nation’s most biologically diverse ecosystems are identified and protected, building codes revised to respond to current storm models, and the existing Coastal Barrier Resource Act (COBRA) is expanded to frequent inundation areas to limit federal protections for high risk development. Public education is also essential and would be best accomplished by creating an online inundation database modeled after FEMA’s 100 year floodplain maps.

Recommendation 2: Utilizing the Public Domain

Existing public lands can be used as a cost effective means for implementation. Rather than purchasing private property, structural solutions are designed to seamlessly occur within public rights of way already in need of infrastructure improvements. For example, the team’s largest structural intervention calls for elevating a portion of coastal Highway 146 to create a West Bay levee protecting large population centers and providing tidal marsh restoration opportunities.

South bay elevations from 0 to 5 ft. contain broad marshlands with considerable parcels under public ownership. This area’s unique biodiversity defines the bay’s established national and international ecotourism reputation. As a result, a major component of the project is the creation of a National Recreation Area (NRA) in this zone. Located within an hour drive of the nation’s fourth largest metropolitan area, an organized framework plan with a sensitive footprint has immense potential. To date, this proposal has been adopted by an organized action committee and has and continues to gain the support with local Galveston Bay communities.

Recommendation 3: Economic Sustainability

Establishing an NRA will have considerable economic impact. Its designation would be an act of congress, require no tax money to create, and all participation would be voluntary. Harbinger Consulting Group estimates that after a decade the NRA would attract 1.5 million annual visitors, create 5,260 jobs, and generate $192 million. Its economic impact would quadruple after 10 yrs. and tourism would triple. The collaborative management structure of the NRA ensures that existing communities will be involved in its development and can profit from its formation.

Implementation

Severe storms are a reality. Recent foreshadowing in Galveston Bay has resulted in a new discourse on its future. This project provides a diversity of pragmatic solutions that are gaining both political and community support in the region. Risk taking? The odds are not favorable.

Project Resources

SWA Group
Matt Baumgarten, ASLA; Alex Lahti; and Fangyi Lu

College of Architecture at the University of Houston
Prof. Thomas Colbert, AIA with Jason Honeycutt and Rose Lee as Research Assistants

SSPEED Center at Rice University
Phil Bedient and Jim  Blackburn
