Honor Award

Casa Nueva: Working in the Garden
Santa Barbara, CA

Van Atta Associates, Inc., Santa Barbara, CA
Client: County of Santa Barbara

  • Casa nueva: Working in the Garden
    Close Me!

    Working in the Garden: Santa Barbara Count Government Campus, Santa Barbara, CA
    Download Hi-Res Image

    Image: Bill Dewey, Saxon Holt, Haley Adams, and Jessica Harlin

    Image 1 of 15

  • Casa nueva: Working in the Garden
    Close Me!

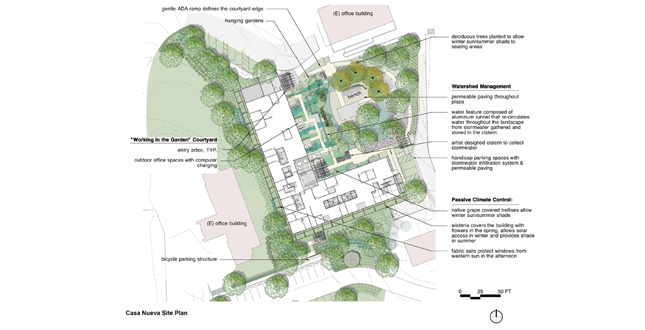

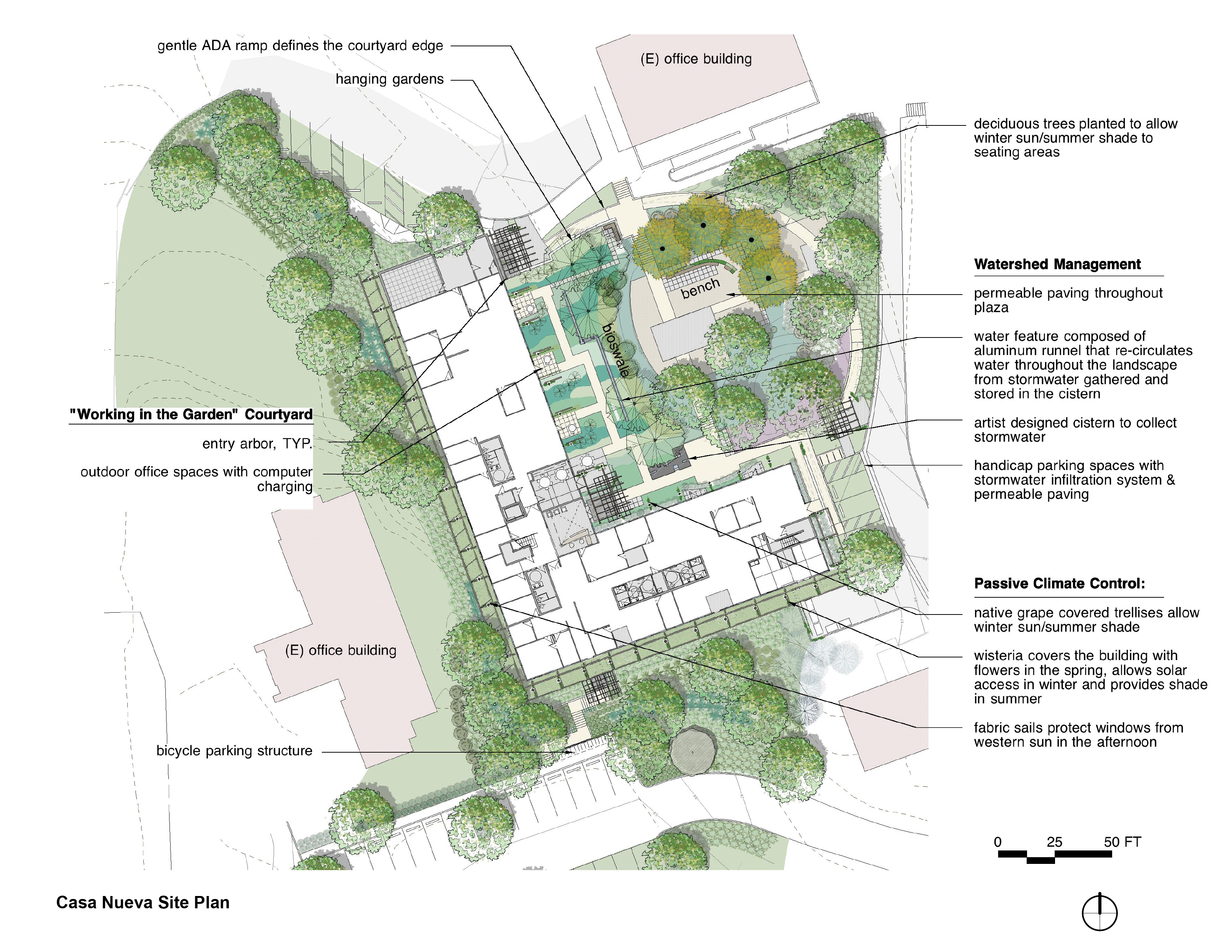

    Casa Nueva Site Plan
    Download Hi-Res Image

    Image: Bill Dewey, Saxon Holt, Haley Adams, and Jessica Harlin

    Image 2 of 15

  • Casa nueva: Working in the Garden
    Close Me!

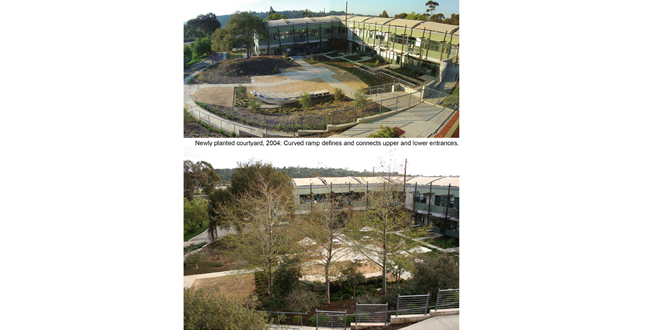

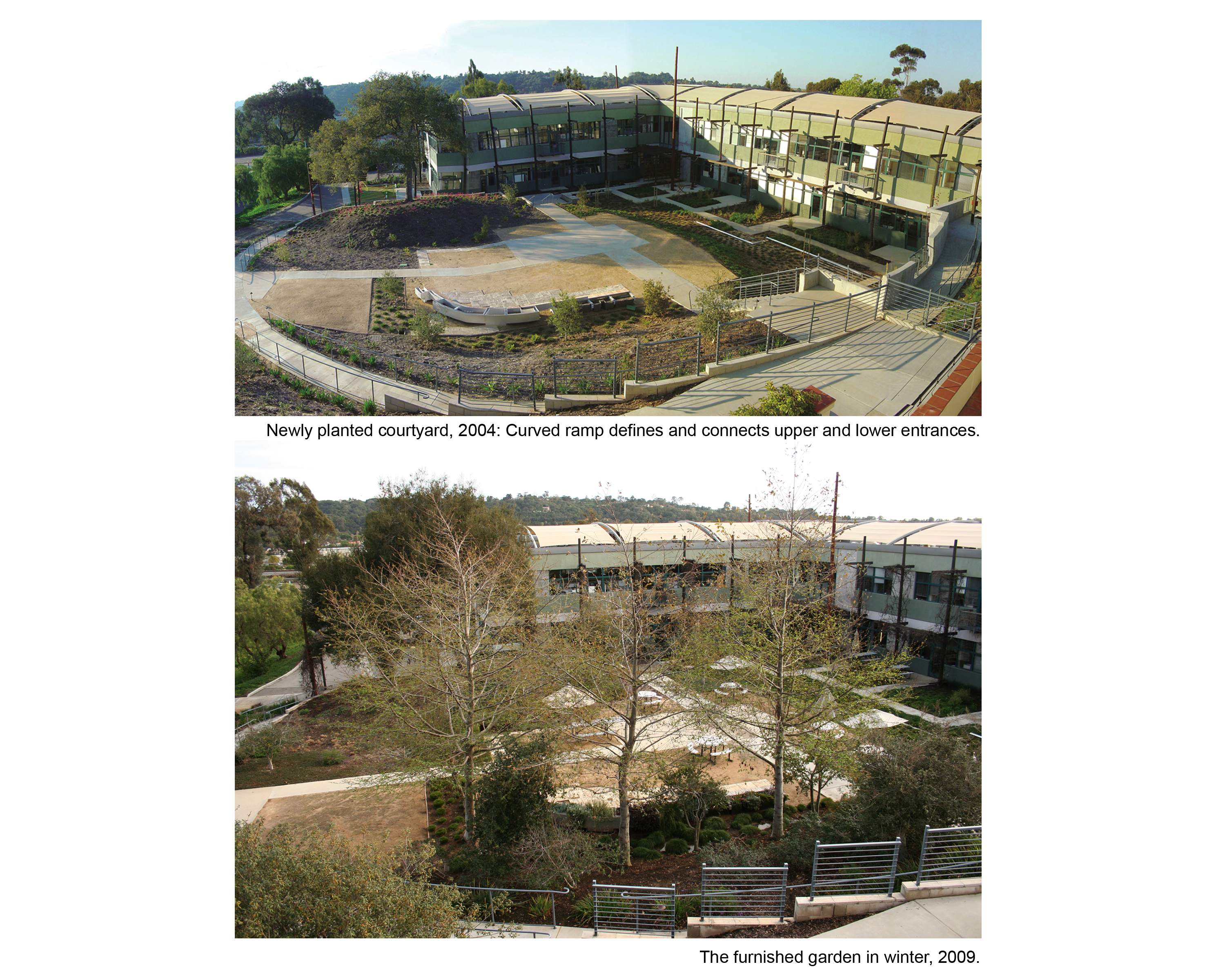

    Top: Newly planted courtyard, 2004: Curved ramp defines and connects upper and lower entrances. Bottom: The furnished garden in winter, 2009.
    Download Hi-Res Image

    Image: Bill Dewey, Saxon Holt, Haley Adams, and Jessica Harlin

    Image 3 of 15

  • Casa nueva: Working in the Garden
    Close Me!

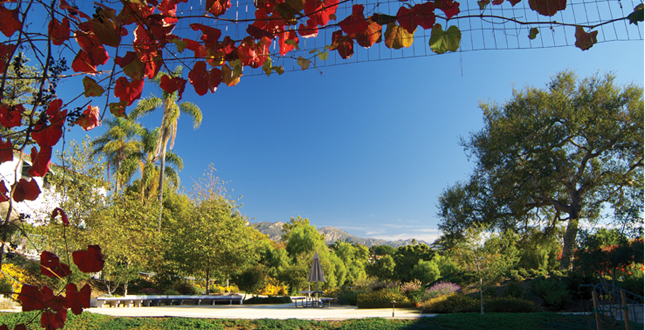

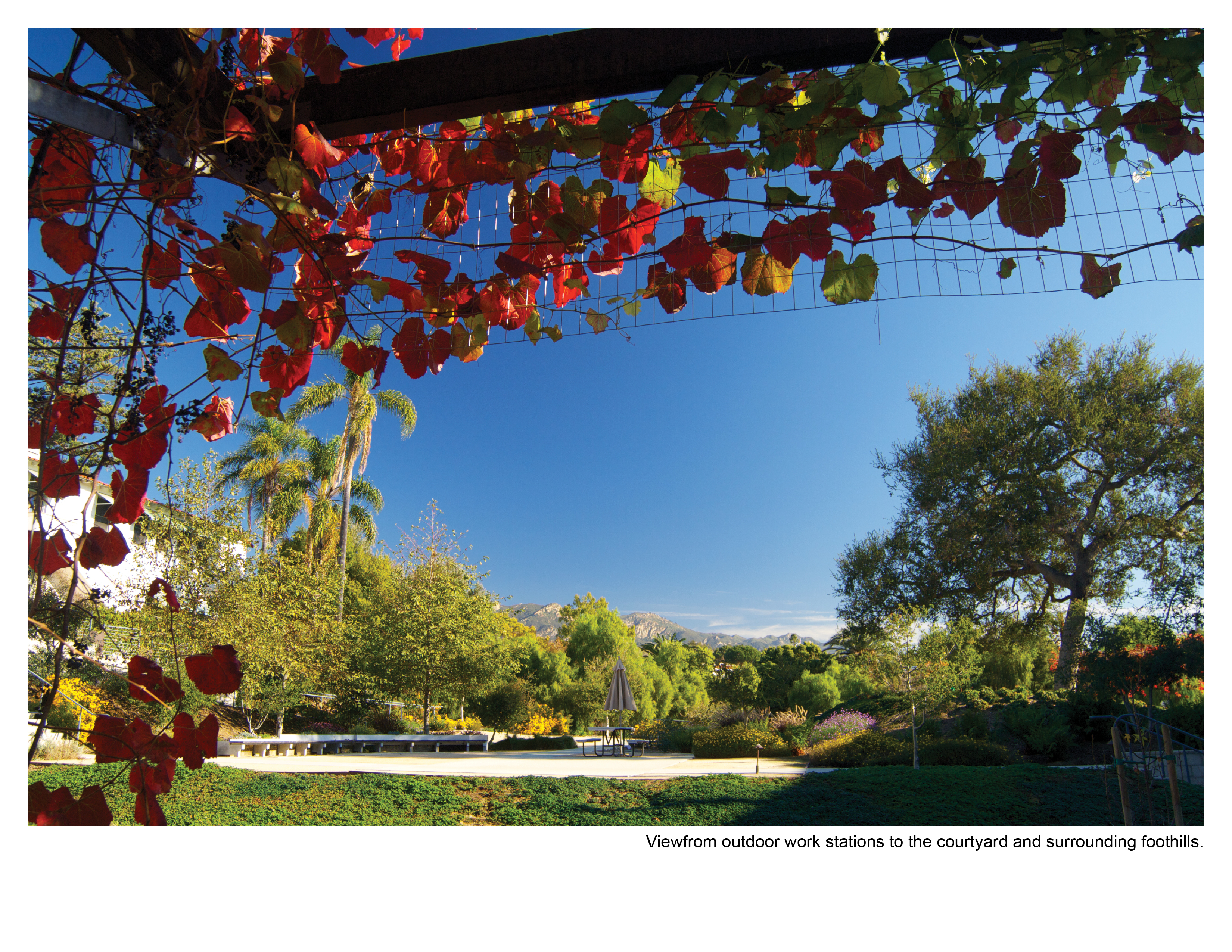

    View from outdoor work stations to the courtyard and surrounding foothills.
    Download Hi-Res Image

    Image: Bill Dewey, Saxon Holt, Haley Adams, and Jessica Harlin

    Image 4 of 15

  • Casa nueva: Working in the Garden
    Close Me!

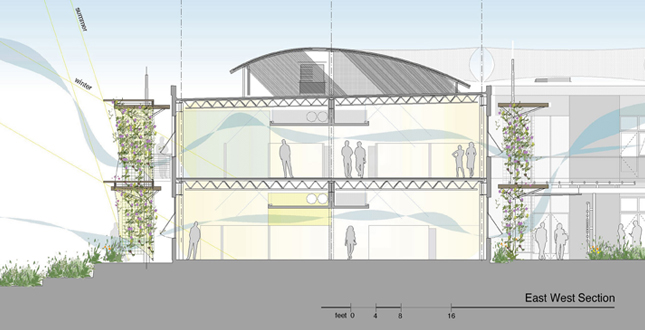

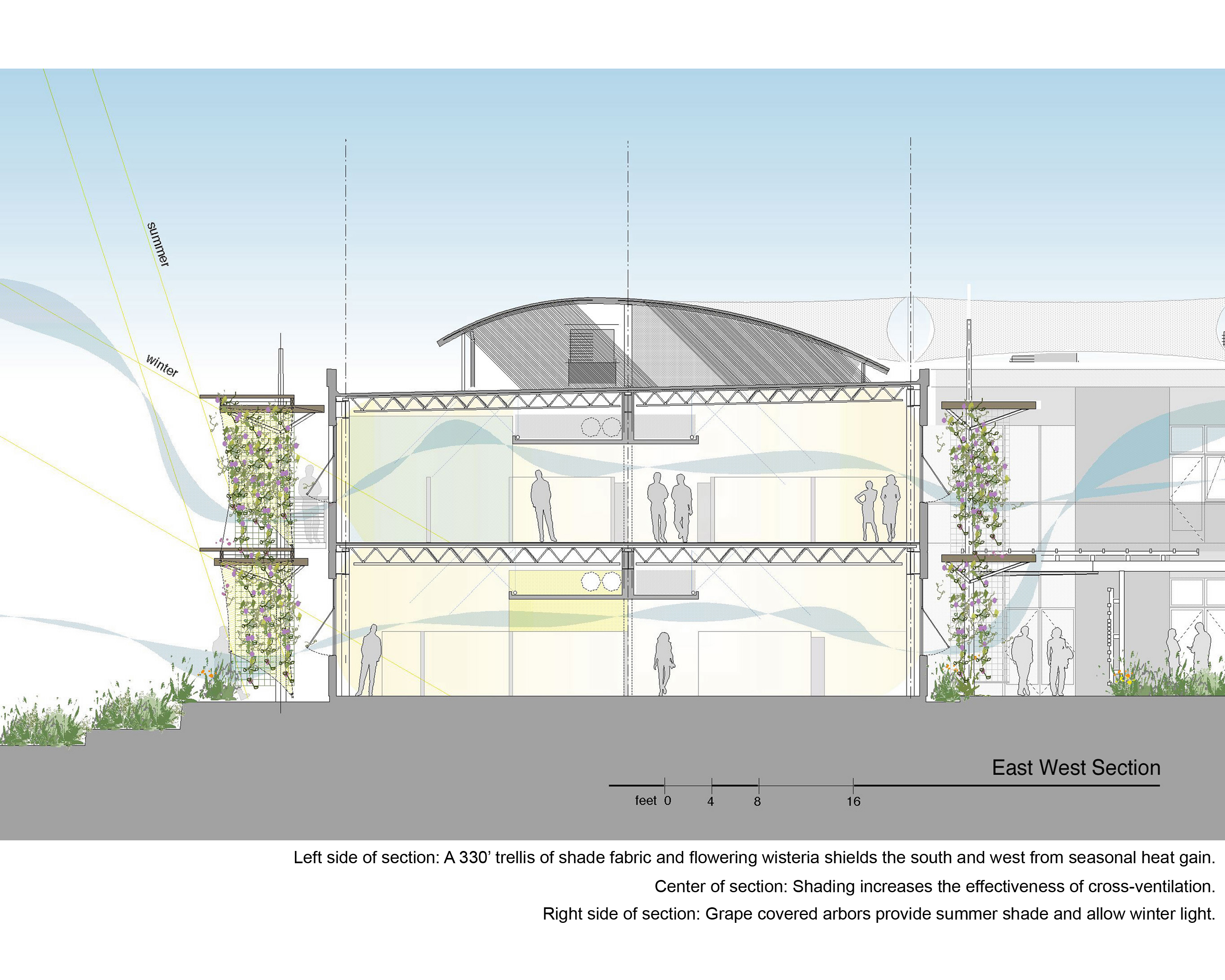

    Left side of section: A 330' trellis of shade fabric and flowering wisteria shields the south and west from seasonal heat gain. Center of section: Shading increases the effectiveness of cross-ventilation. Right side of section: Grape covered arbors provide summer shade and allow winter light.
    Download Hi-Res Image

    Image: Bill Dewey, Saxon Holt, Haley Adams, and Jessica Harlin

    Image 5 of 15

  • Casa nueva: Working in the Garden
    Close Me!

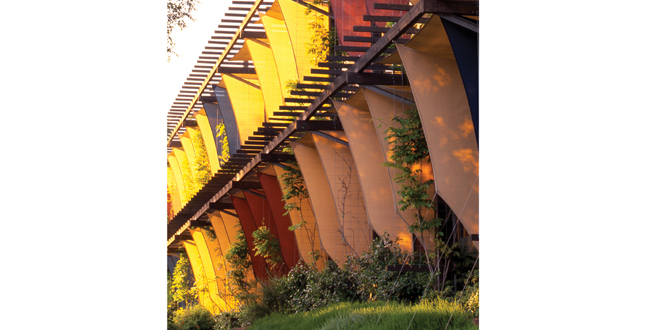

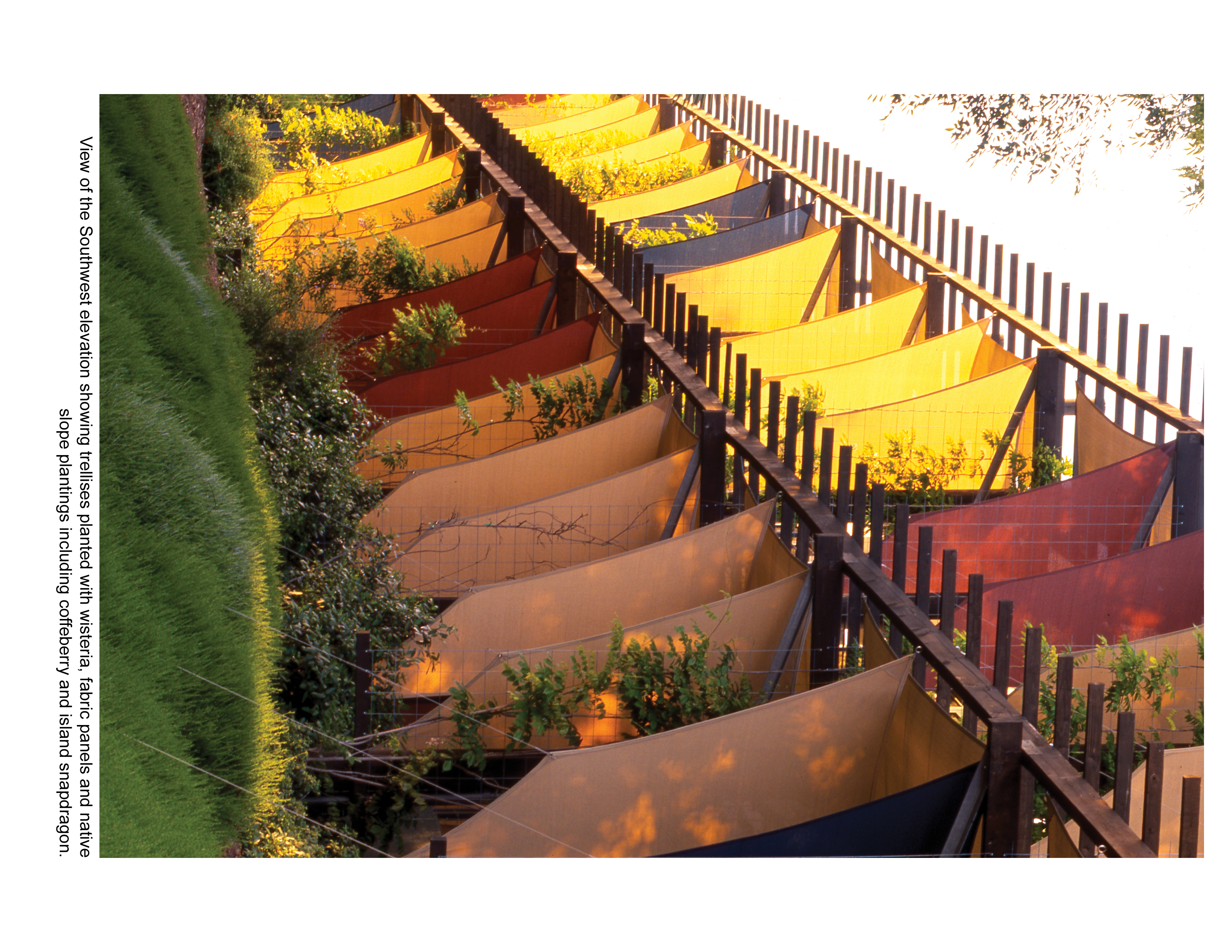

    View of the Southwest elevation showing trellises planted with wisteria, fabric panels and native slope plantings including coffeberry and island snapdragon.
    Download Hi-Res Image

    Image: Bill Dewey, Saxon Holt, Haley Adams, and Jessica Harlin

    Image 6 of 15

  • Casa nueva: Working in the Garden
    Close Me!

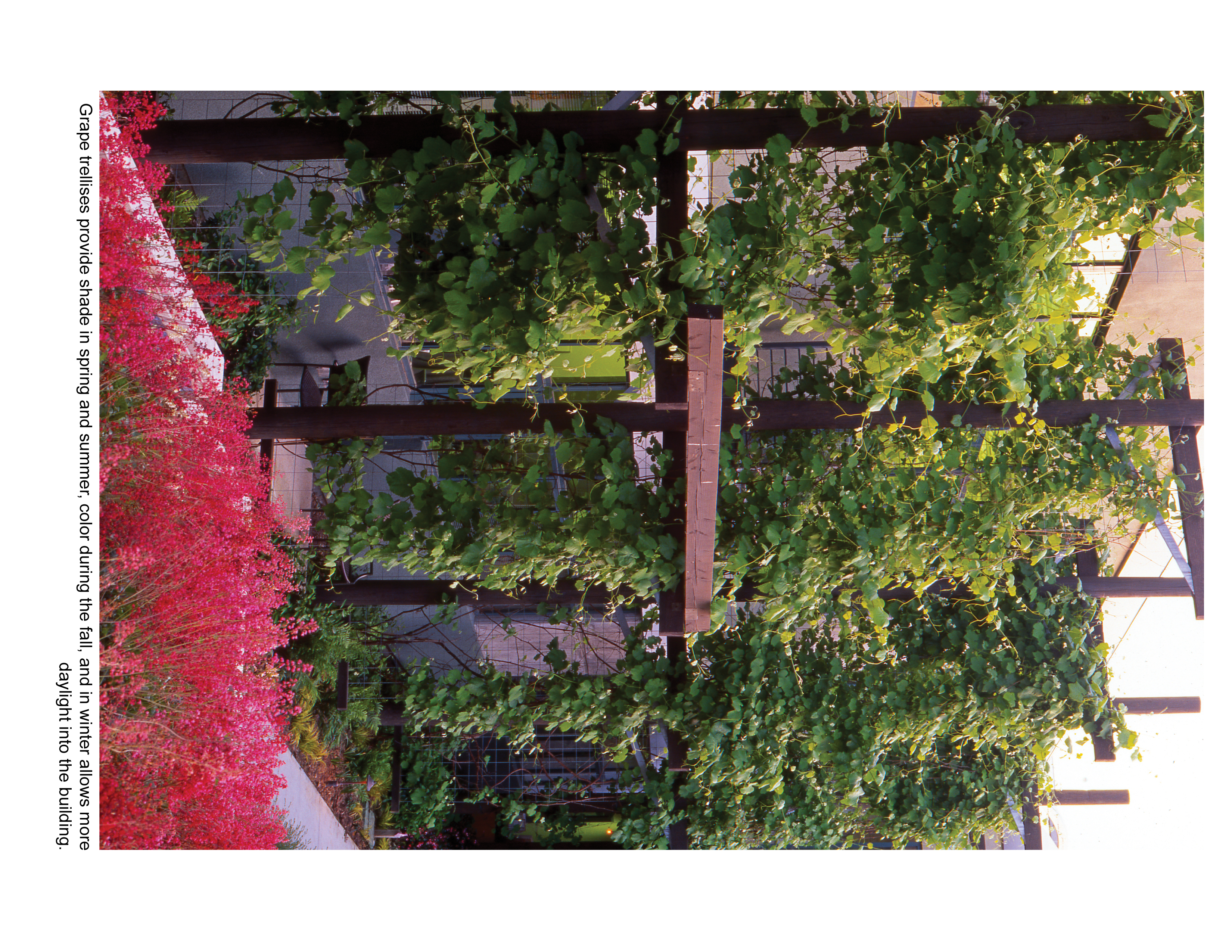

    Grape trellises provide shade in spring and summer, color during the fall, and in winter allows more daylight into the building.
    Download Hi-Res Image

    Image: Bill Dewey, Saxon Holt, Haley Adams, and Jessica Harlin

    Image 7 of 15

  • Casa nueva: Working in the Garden
    Close Me!

    Retaining wall with hanging gardens.
    Download Hi-Res Image

    Image: Bill Dewey, Saxon Holt, Haley Adams, and Jessica Harlin

    Image 8 of 15

  • Casa nueva: Working in the Garden
    Close Me!

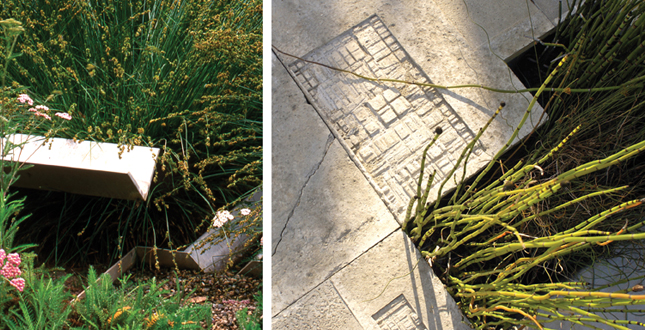

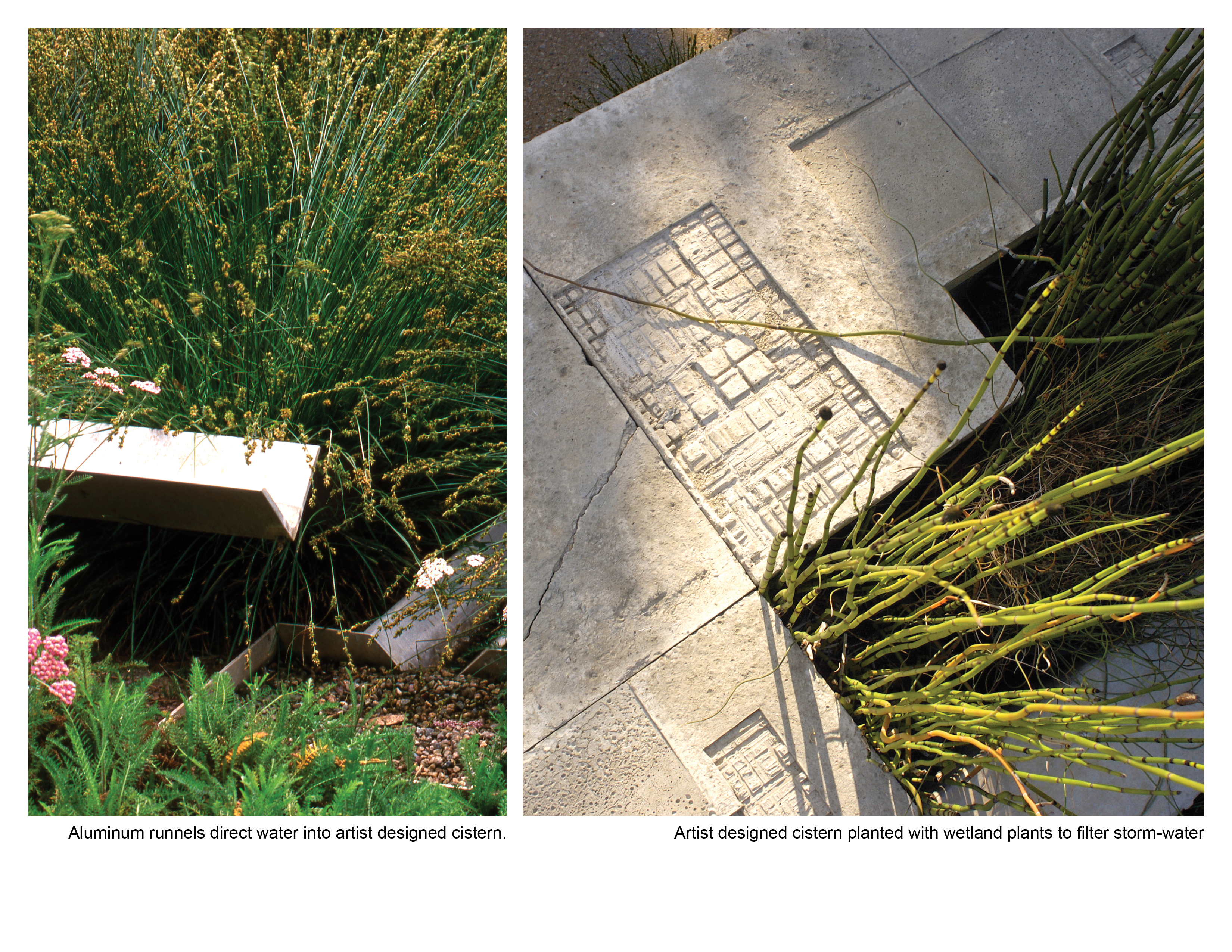

    Left: Aluminum runnels direct water into artist designed cistern. Right: Artist designed cistern planted with wetland plants to filter storm-water.
    Download Hi-Res Image

    Image: Bill Dewey, Saxon Holt, Haley Adams, and Jessica Harlin

    Image 9 of 15

  • Casa nueva: Working in the Garden
    Close Me!

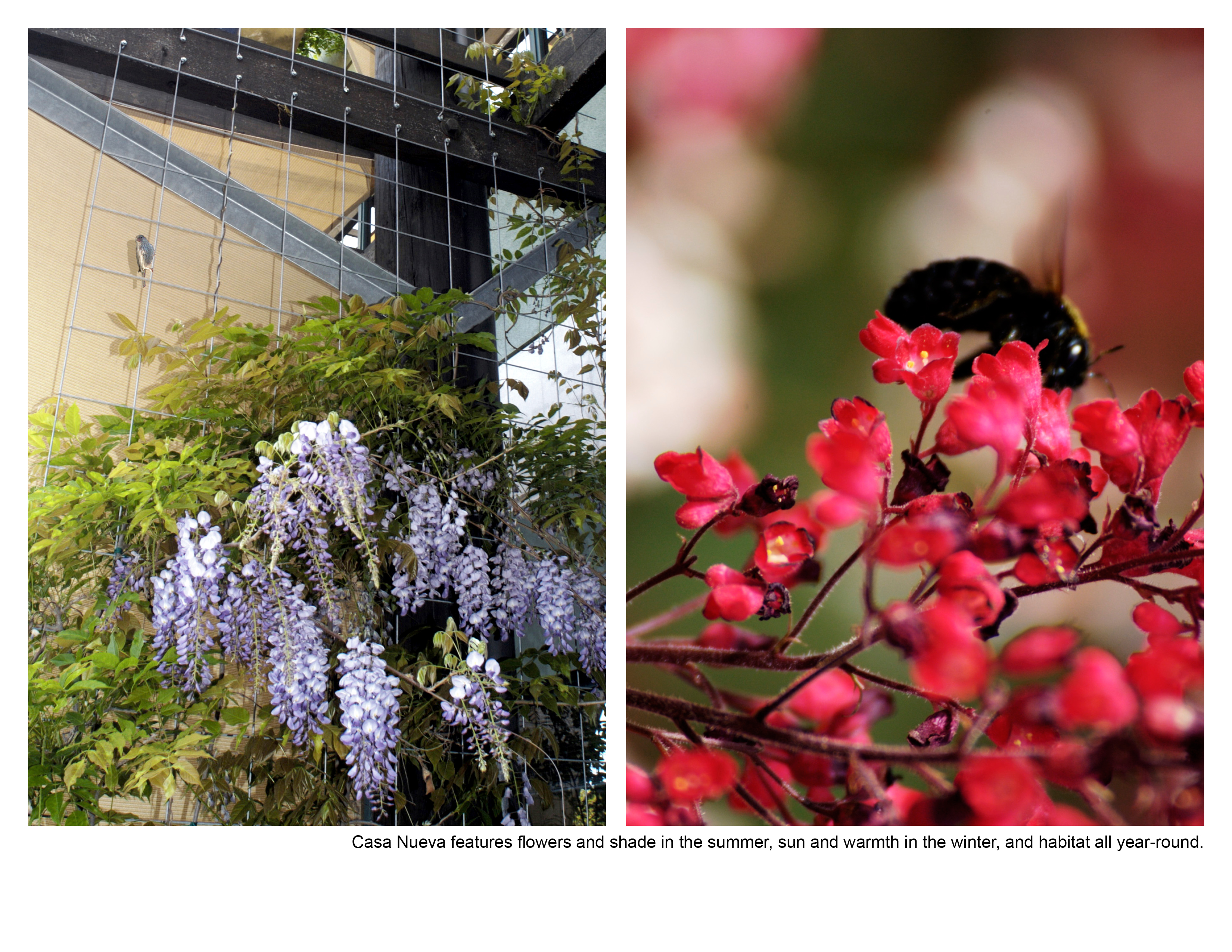

    Casa Nueva features flowers and shade in the summer, sun and warmth in the winter, and habitat all year-round.
    Download Hi-Res Image

    Image: Bill Dewey, Saxon Holt, Haley Adams, and Jessica Harlin

    Image 10 of 15

  • Casa nueva: Working in the Garden
    Close Me!

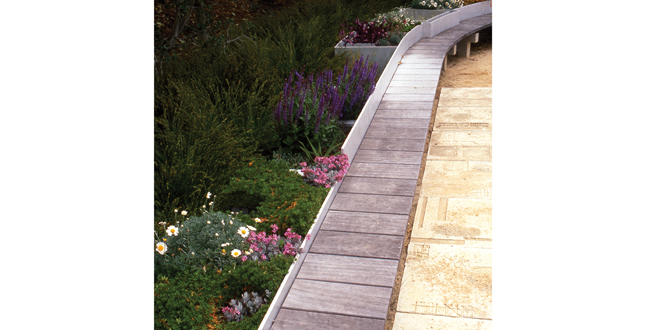

    Burgundy and blue-gray planting accent bench and textured pavers at the edge of the courtyard plaza.
    Download Hi-Res Image

    Image: Bill Dewey, Saxon Holt, Haley Adams, and Jessica Harlin

    Image 11 of 15

  • Casa nueva: Working in the Garden
    Close Me!

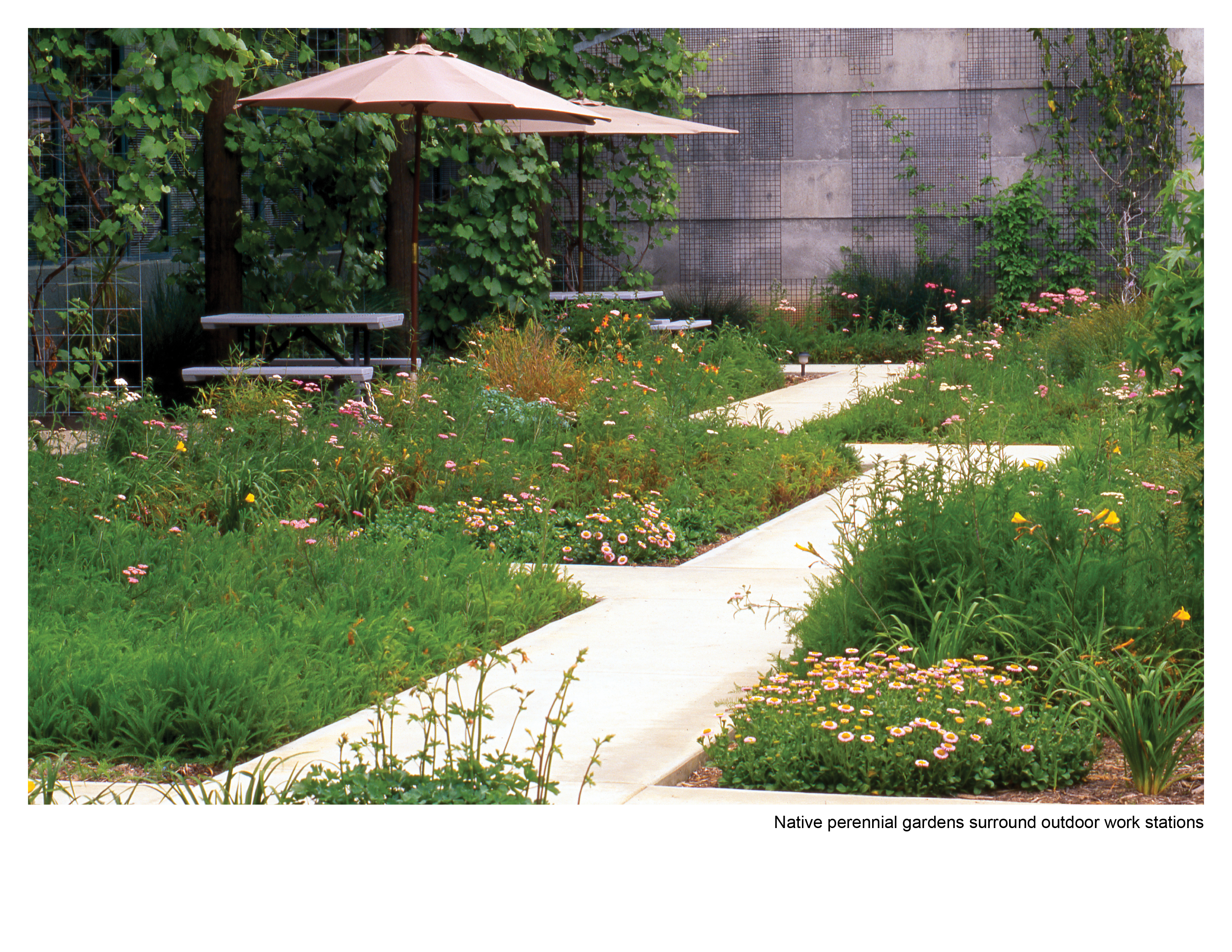

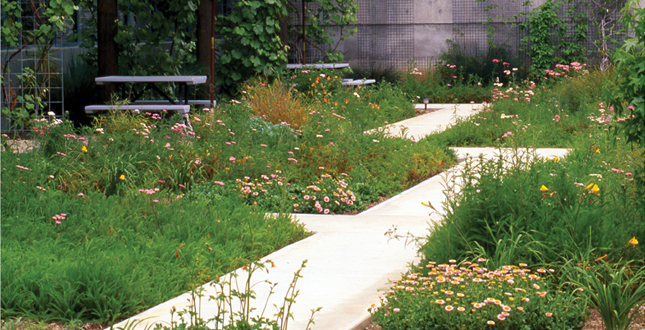

    Native perennial gardens surround outdoor work stations.
    Download Hi-Res Image

    Image: Bill Dewey, Saxon Holt, Haley Adams, and Jessica Harlin

    Image 12 of 15

  • Casa nueva: Working in the Garden
    Close Me!

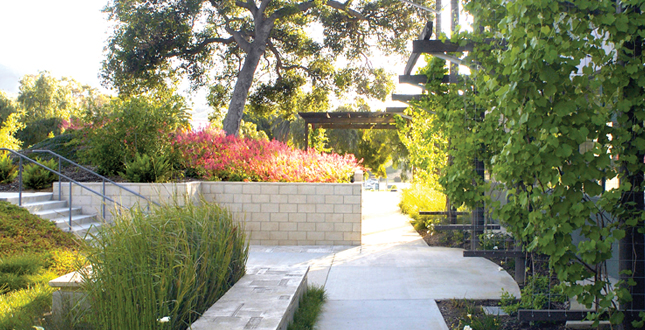

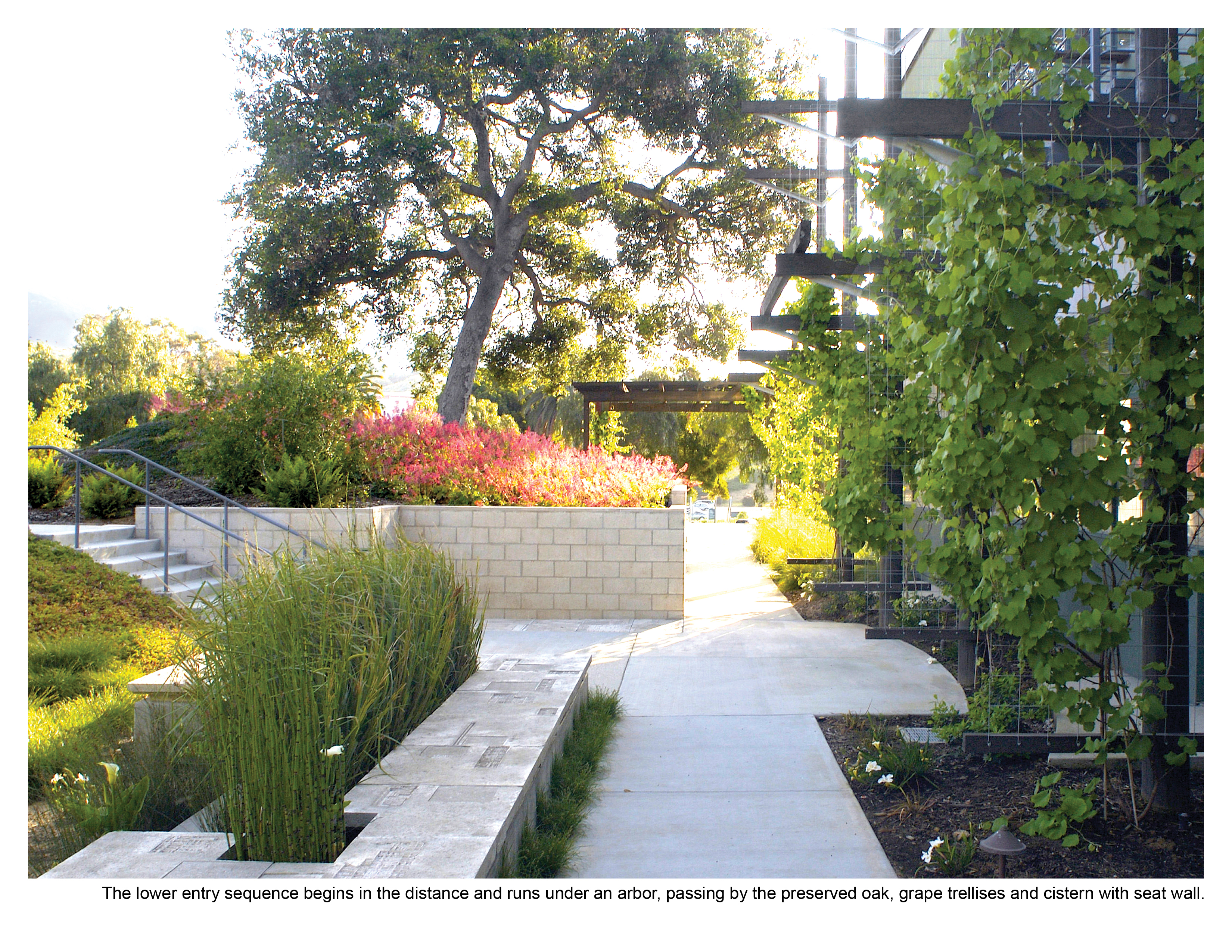

    The lower entry sequence begins in the distance and runs under an arbor, passing by the preserved oak, grape trellises and cistern with seat wall.
    Download Hi-Res Image

    Image: Bill Dewey, Saxon Holt, Haley Adams, and Jessica Harlin

    Image 13 of 15

  • Casa nueva: Working in the Garden
    Close Me!

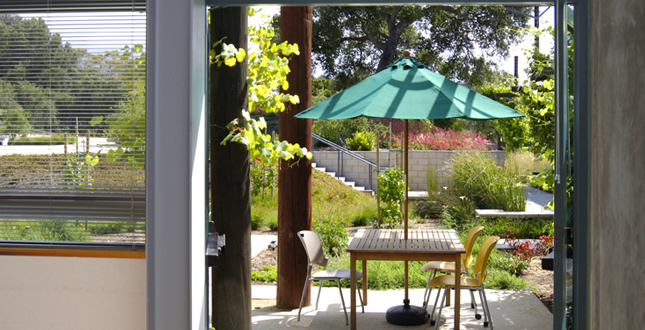

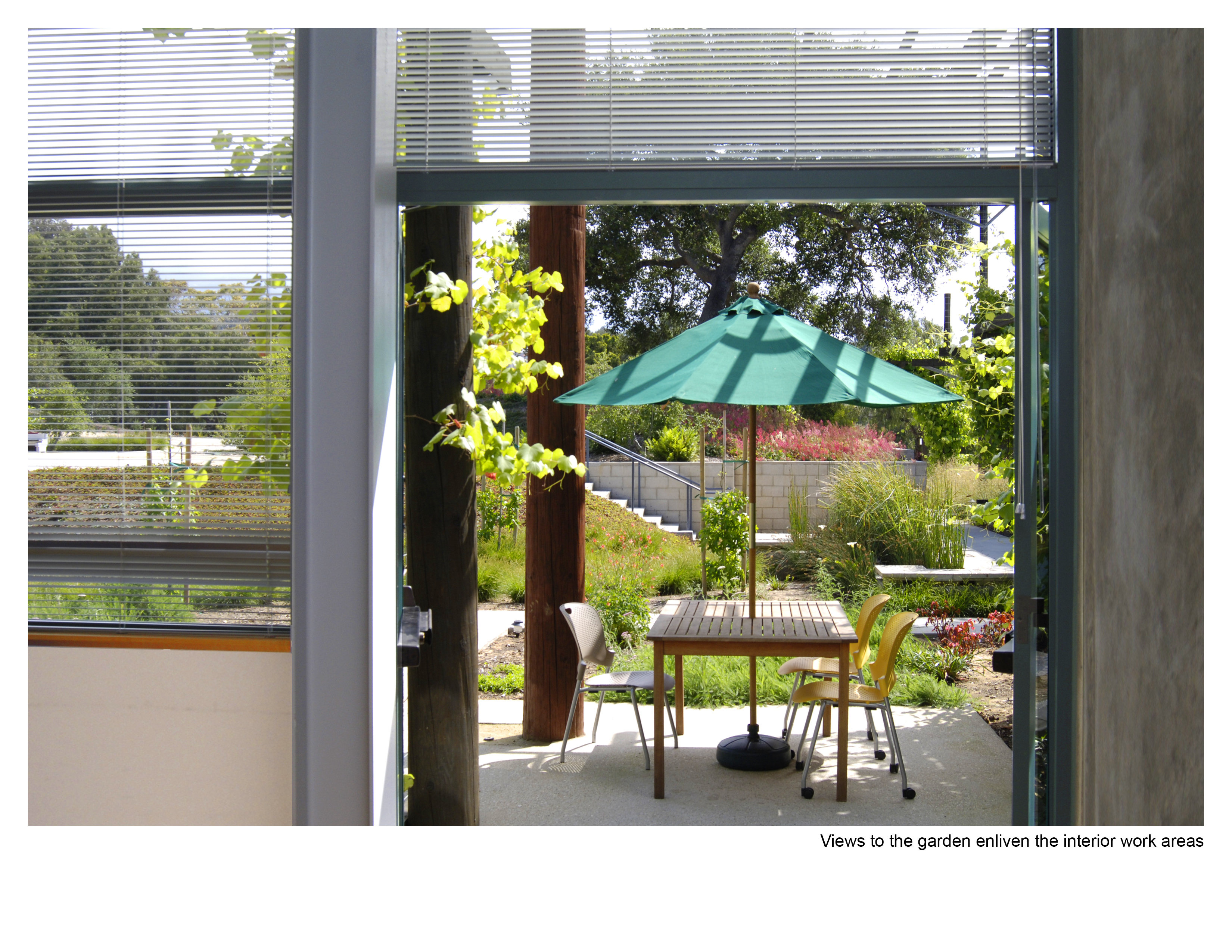

    Views to the garden enliven the interior work areas.
    Download Hi-Res Image

    Image: Bill Dewey, Saxon Holt, Haley Adams, and Jessica Harlin

    Image 14 of 15

  • Casa nueva: Working in the Garden
    Close Me!

    Left: Island Pink Yarrow, middle: Our Lord's Candle. Right: Beach Aster.
    Download Hi-Res Image

    Image: Bill Dewey, Saxon Holt, Haley Adams, and Jessica Harlin

    Image 15 of 15

Project Statement

The site planning and landscape design for this new Government office building exemplifies innovative design on a very limited budget.  Ambitious project environmental goals were met with site design, as well as the ecosystem services provided by the landscape.  Taking best advantage of the regenerative nature of landscape, while not adding to upfront costs, and certainly reducing long term costs, the landscape filters stormwater, provides climate control to the building, and conserves water with cisterns and a regionally native landscape.

Project Narrative

This shows that landscape design and architecture are two parts of the whole. It’s a healthy and social environment. Plus it’s very beautiful and inventive. The landscape design adds layers and scale. The space between the building and landscape strengthens the edges.
—2011 Professional Awards Jury

Often buildings are placed where the garden should be.  The success of this project stems from the opposite approach.  Instead, a generous courtyard garden protected from freeway noise, wind and other discomforts replaces an abandoned asbestos-contaminated building, while featuring views to the surrounding foothills. The long, narrow building, placed at the edges of the site, maximizes interior access to natural light and ventilation while creating space for patios and planted terraces for working, meeting, and recreation for the entire government campus.

The experience of the building begins in a garden, with entrance through the verdant courtyard, defined on the south and west by the building, and on the north and east with generous stairs and an arcing access ramp.  Art, landscape, and architecture overlap (and share budgets) to achieve as much as possible for the people who work here.  Outdoor workstations (with power and data), occupiable artwork, and native landscape interact in a peaceful garden for work, collaboration and recreation.

The design team collaborated closely to employ many other strategies to incorporate eco-effective landscape features that minimize additional cost while creating poetic, productive and economical space:

Planting And Passive Climate Modification

A dramatic preserved Oak defines the courtyard with other regionally native plant materials adapted to local rainfall, creating habitat for birds and other small animals, as well as people.

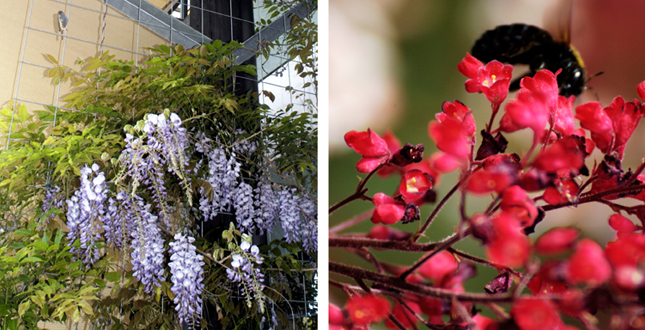

Technical day-lighting studies, performed collaboratively with Southern California Edison, tested design options for passive climate modification. This work informed the design of the dramatic 330' long trellis of shade fabric and flowering wisteria that defines a green identity for Casa Nueva as seen from the adjacent major highway. The planted trellis and fabric shield the south and west from seasonal heat gain to improve employee comfort and energy performance. In early spring, this ‘green’ building turns lavender with Wisteria blossoms.  In autumn, the vertical trellises lining the courtyard facade, planted with native grape vines, cover the building with startlingly red fall foliage. When the building is described to visitors they have been known to ask, "Do you mean the one along the highway that looks like a treehouse?"

Stormwater Management

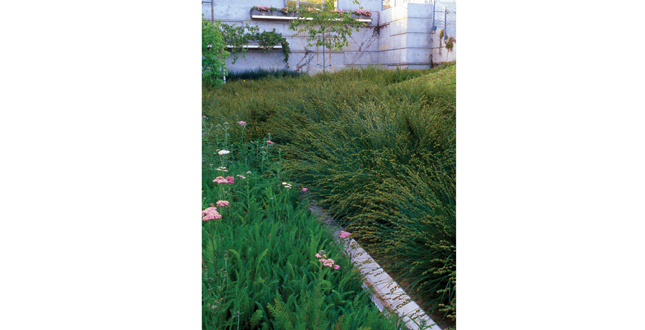

A bio-swale, lush with native grasses, runs through the courtyard, treating and filtering storm-water runoff before feeding into an artist created cistern. A detention basin stores storm water under the parking lot, and permeable paving reduces peak storm water flow.

Materials

Simple, affordable, and easy to use materials were used that are durable and non-toxic as well.  Whenever possible, materials were left unfinished or exposed. Simple materials include shade fabric panels constructed from #2 recyclable plastic with supporting trellises made of telephone poles, and unfinished locally made concrete block retaining walls with fly ash content.

Non-toxic solutions include ACQ-treatment for all wood in contact with the ground replacing conventional pressure treatment to eliminate potential chrome and arsenic groundwater contamination. Paint products meet Green Seal standards for low and no VOC paints.

Art

The regional Art in Public Places Committee supported the selection of an artist to be included on the design team.  As frequent past collaborators, the artist, architect and landscape architect made the most the art component, investing all of the art into the landscape to provide unique texture and form to standard site elements such as seat walls, retaining walls and special areas of paving.

Transportation

The building’s location along public transportation lines, including local and regional Express buses, provides convenient commuting options. A garden structure to house and protect bicycles augments the showers provided in the building for bicycle commuters. Two electric vehicle-charging stations are provided for Air Pollution Control fleet vehicles.

Maintenance

'Healing Grounds', an adjacent rehabilitation center in the business of propagating organic herbs and compost tea for sale, adopted a portion of the landscape to demonstrate the effectiveness of their organic methods over typical contract maintenance services.  The plants in their adopted portion became conspicuously more vital than elsewhere.

Conclusion

This 'infill' model office building on an existing campus of 1800 employees creates the first and only outdoor gathering spaces within walking distance.  The project features environmentally sensitive design, realized within a conventional budget, as a model for all future County of Santa Barbara design and construction projects. Casa Nueva reflects the values and goals of the agencies that occupy the building, the Air Pollution Control District, County Association of Governments, and Dept. of Social Services, providing an identity of environmental stewardship and social reconnection.

At Casa Nueva, art, architecture and landscape elements merge the workplace with the natural world to re-sensitize the occupants to our environment. Here, resource conservation is not about sacrifice; it’s actually about getting more enjoyment every day out of our surroundings.

The collaborative design process between the design team, client, and local utility was the subject of an award-winning PBS documentary.

Project Resources

Van Atta Associates, Inc. Project Team
Principal: Susan Van Atta, FASLA;
Senior Associate: Guillermo Gonzalez, ASLA;
Bethany Clough, ASLA, Lane Goodkind

Architect: Blackbird Architects
Principal: Ken Radtkey, AIA
Project Architect: Yianni Doulis

Civil Engineer: Flowers & Associates

Contractor: Carrol Construction Co.

Artist/ Sculptor: Michael Singer
