Honor Award

Contrasting Shade: Building a Sustainable Urban Grove at Central Wharf Plaza
Boston

Reed Hilderbrand, Watertown, MA
Client: Frog Pond Foundation

Project Statement

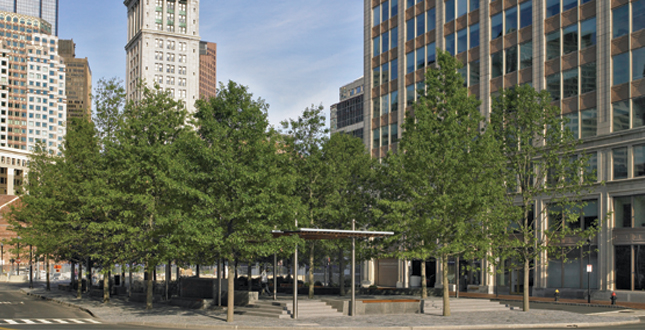

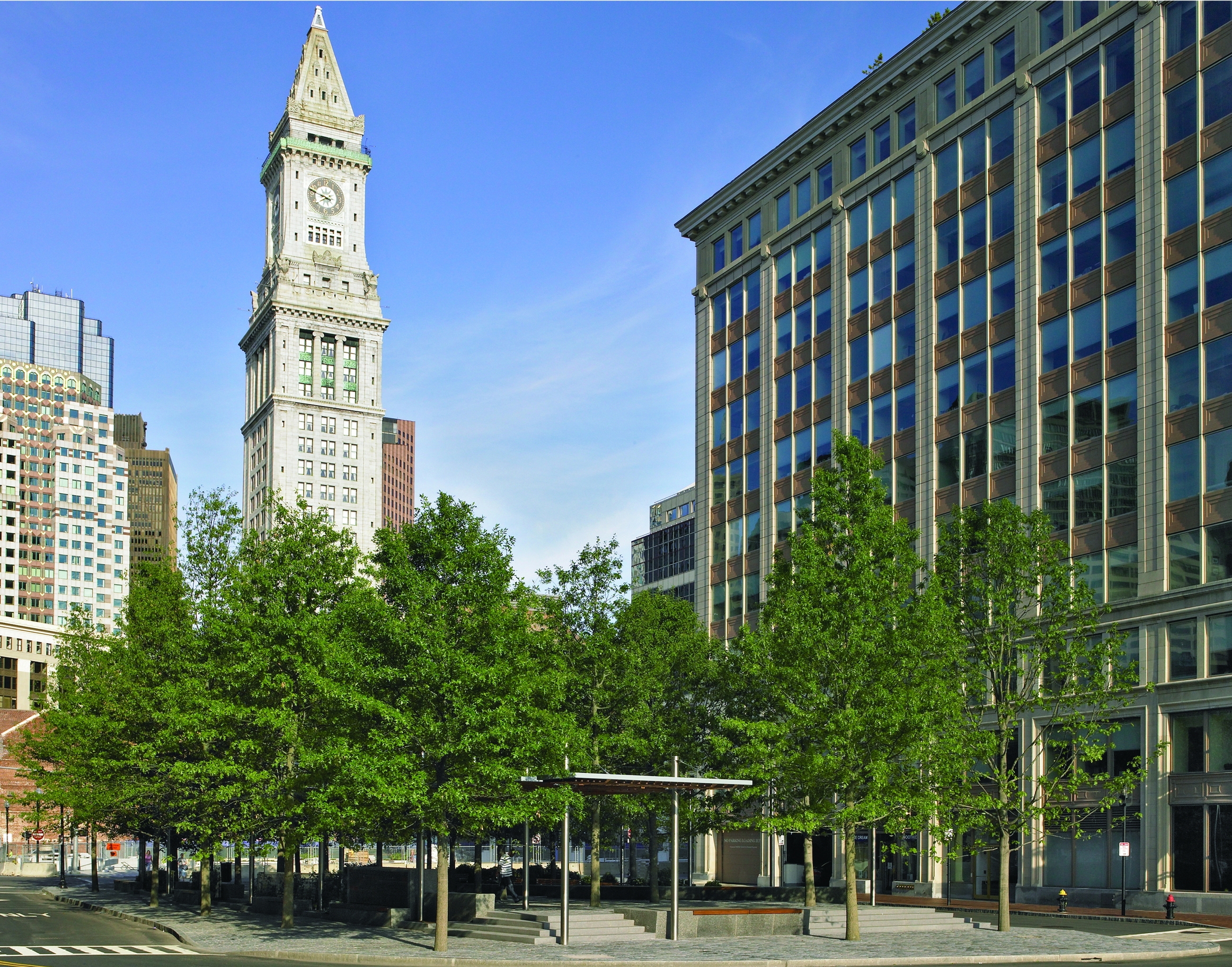

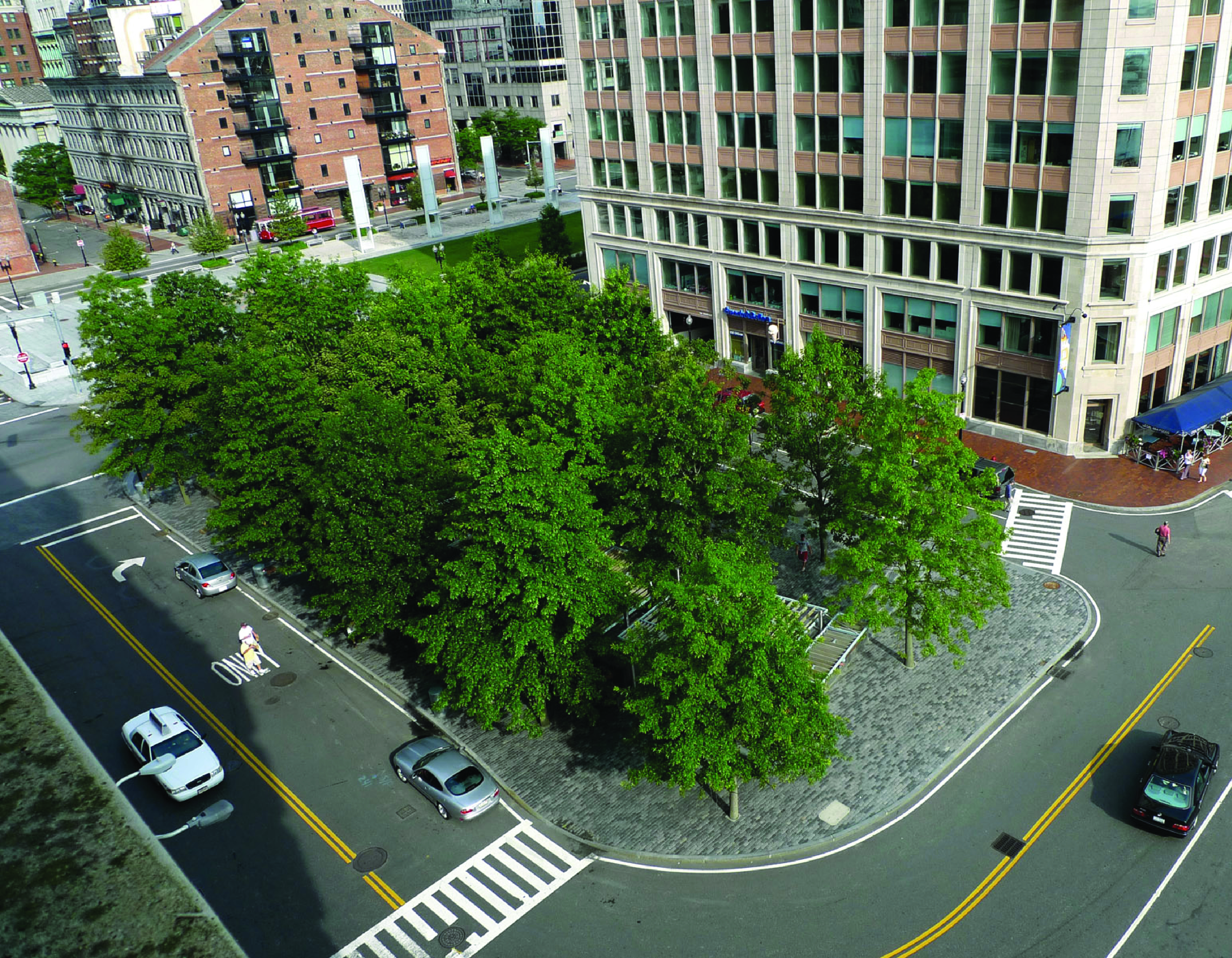

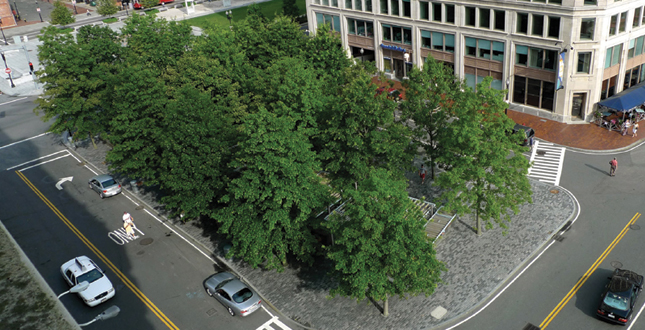

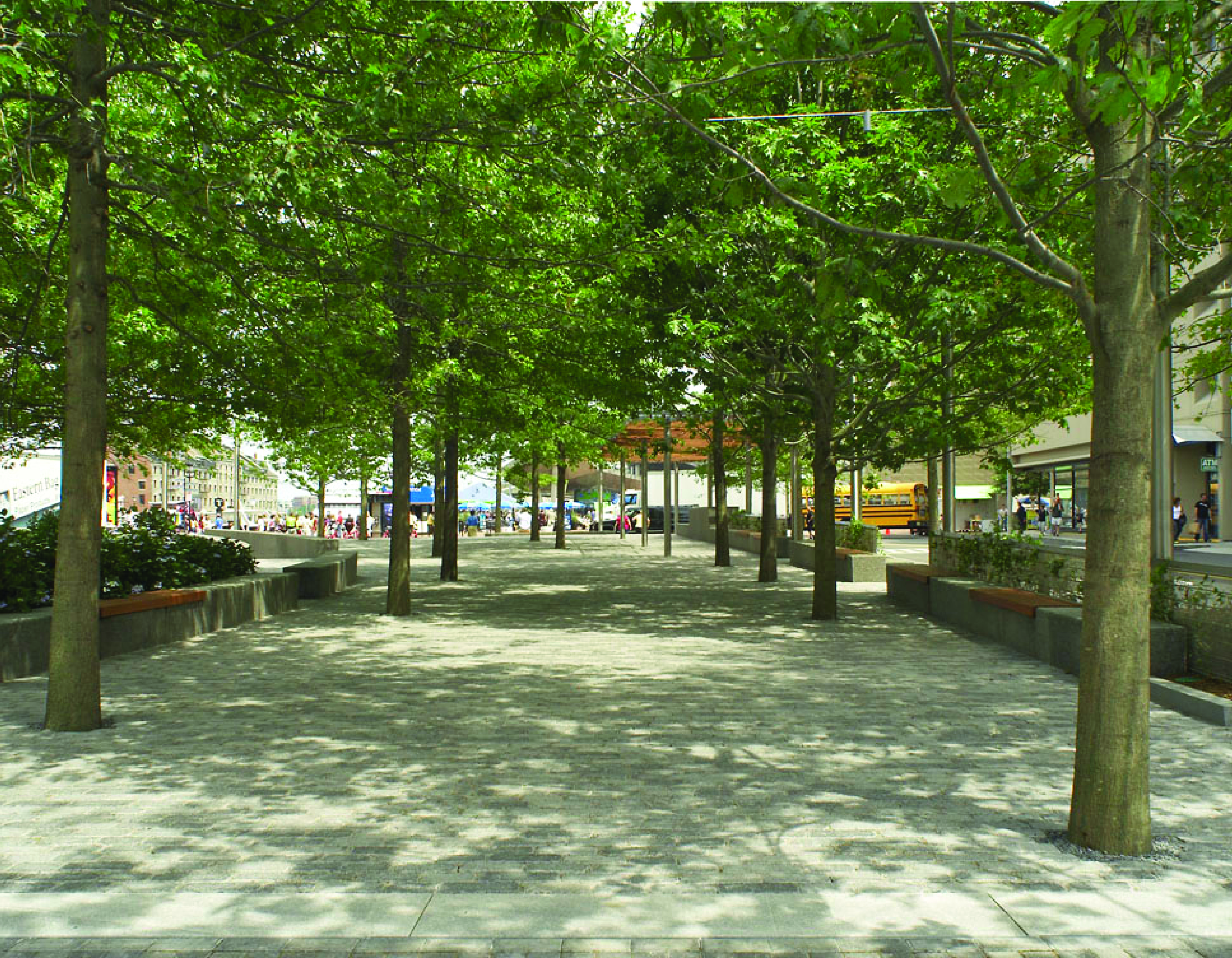

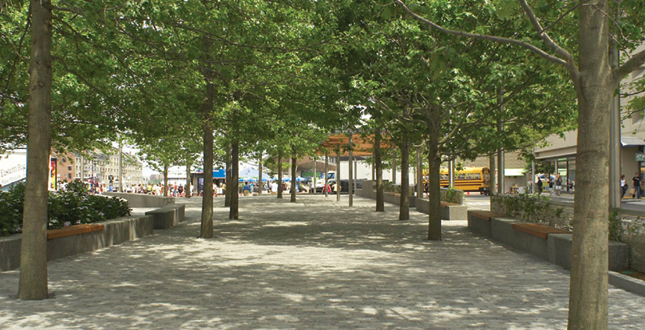

This tiny plaza—shaded by twenty-six mature mixed-species oaks—stands in marked contrast to the wide-open swath of nearly treeless parks that cover Boston’s infamous Big Dig. The plaza has created a major draw for downtown workers, student groups visiting the New England Aquarium, and tourists and commuters walking to nearby ferries. But beyond its civic success, the project demonstrates the value of dedication to the establishment and stewardship of a high-performing urban tree canopy.

Project Narrative

Essential Measures, Best Practices

What a great "room"—it’s irresistible. This is a complicated project, but it’s so elegantly executed, you don’t see that on the surface. It’s a modern example of how to do forestry project in the middle of a contemporary city.
—2011 Professional Awards Jury

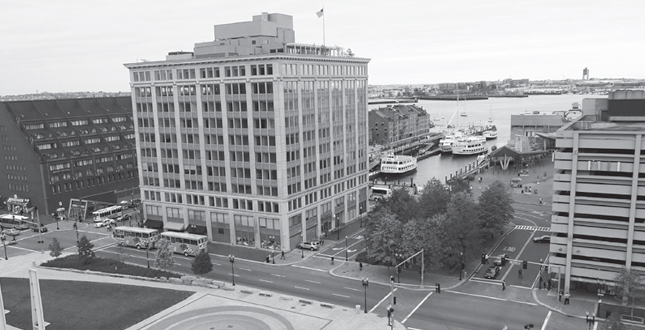

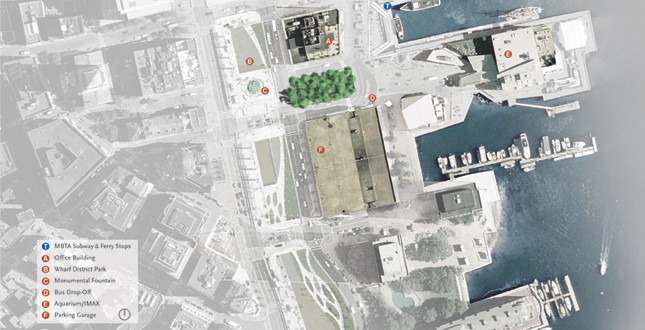

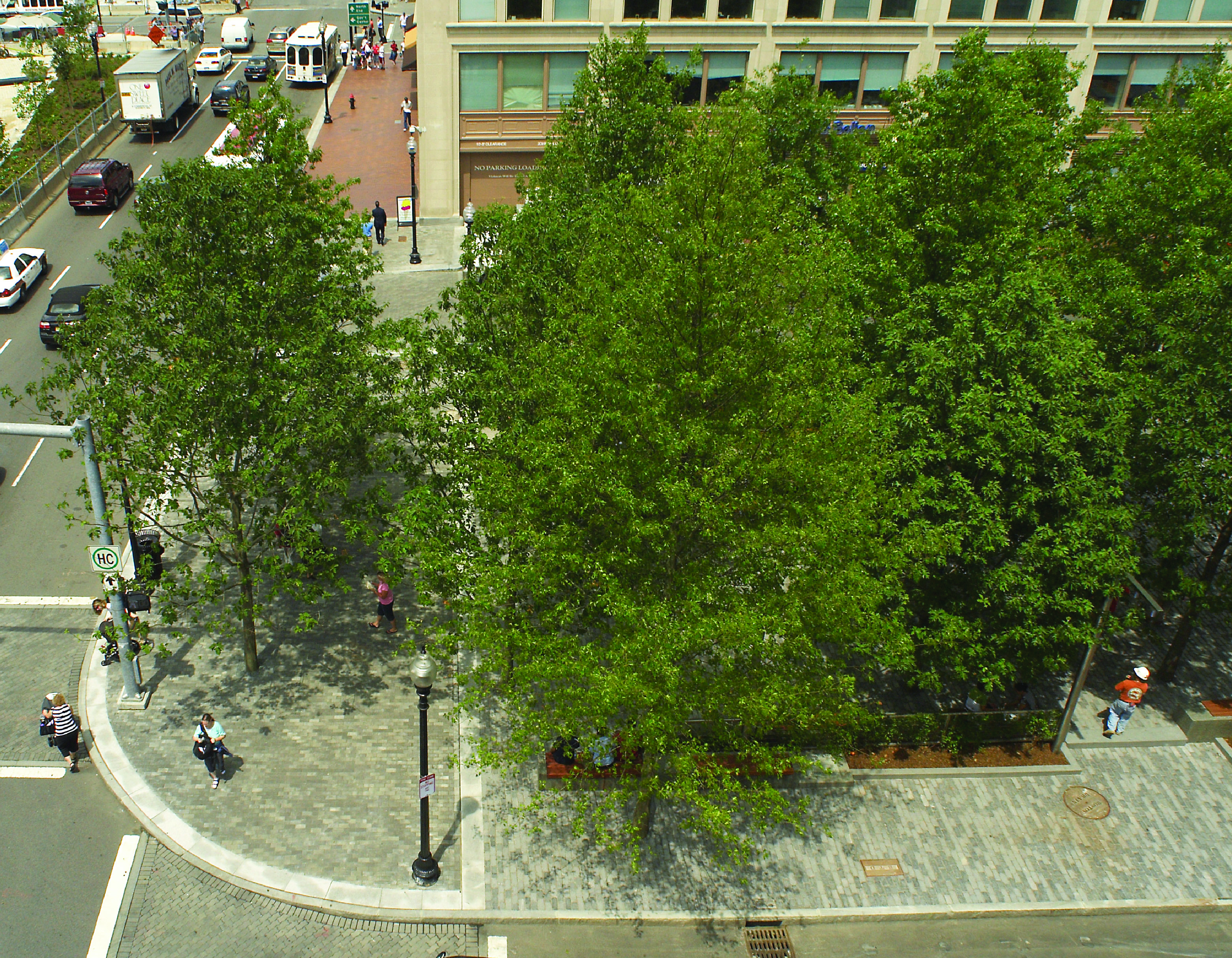

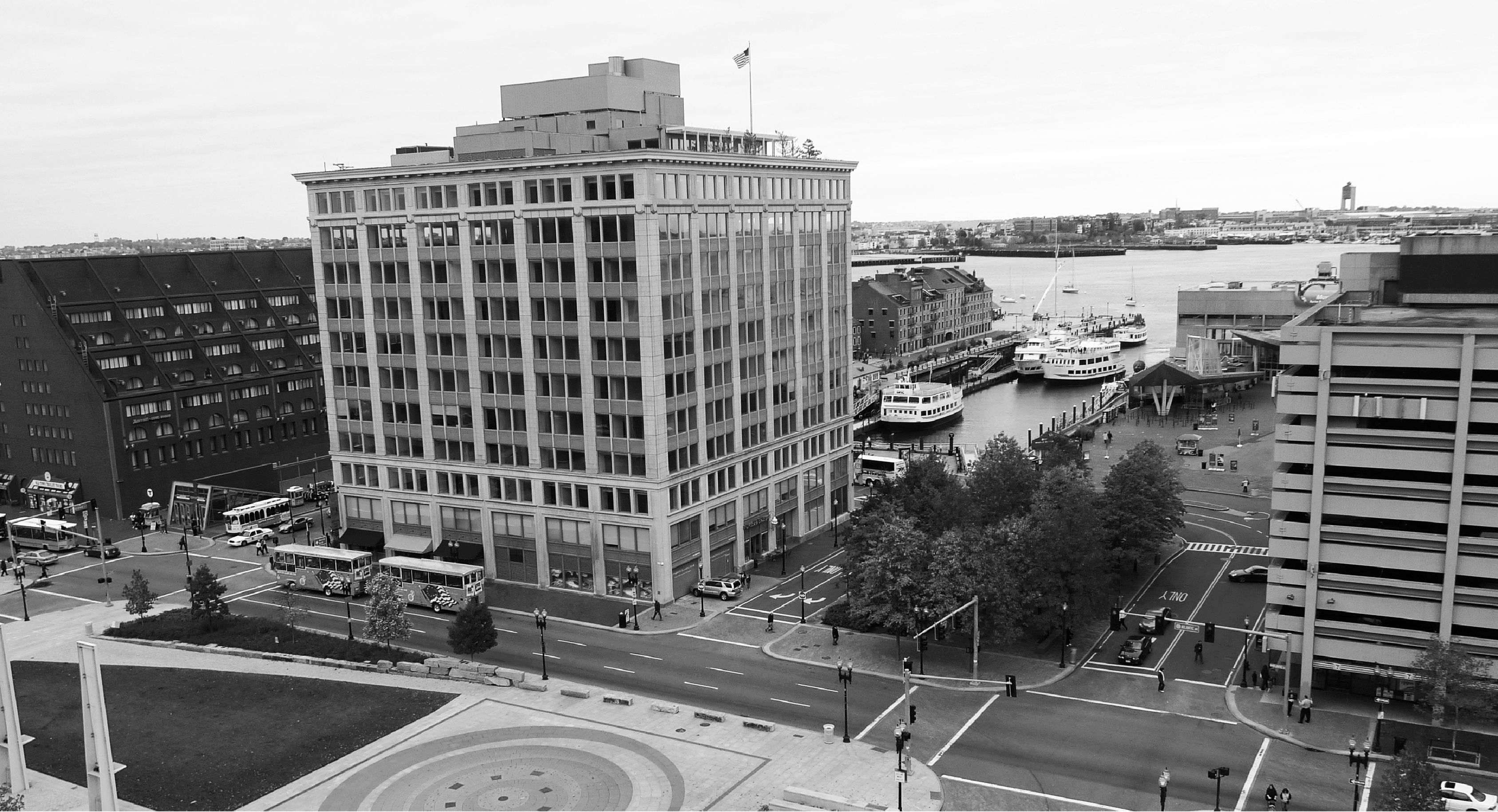

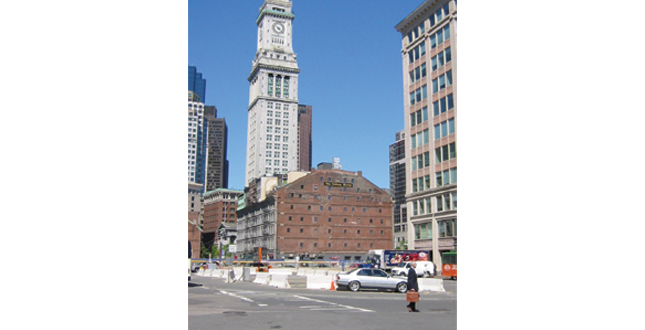

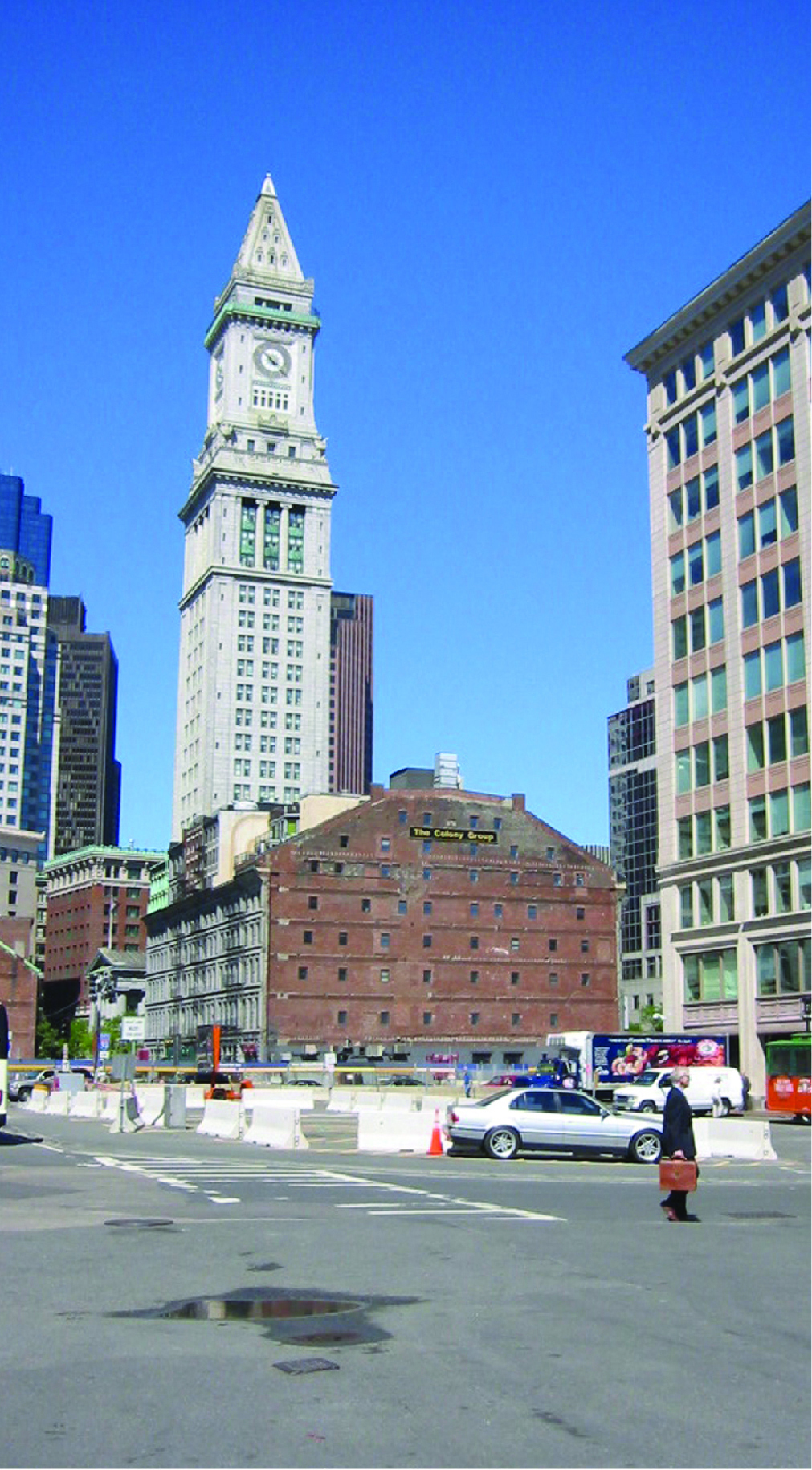

The design team began working from the belief that this site—a fully paved traffic island originally only 4,000 square feet in size and set among busy streets—would succeed only if the spatial result was strong and positive. Working with city agencies, the team expanded the site to over 11,000 sq. ft.—just enough scale to provide identity and spatial coherence. Furthermore, summer shade was deemed the primary characteristic of space that would appeal to passersby, neighbors, and school groups visiting the aquarium. Unfortunately the newly completed Rose Fitzgerald Kennedy Greenway did not deliver on the Big Dig’s promise of a shaded boulevard and park system and is largely devoid of hospitable gathering spaces.

The owner of Central Wharf, a private philanthropy dedicated to supporting urban open space initiatives, seized on the landscape architect’s motivations for developing and applying exemplary, high performance urban planting practices. The team committed significant design and construction resources to maximizing return on the below-grade infrastructure investments that support the project and the quality, density, and scale of tree planting required.

Walking, Lingering, Orienting

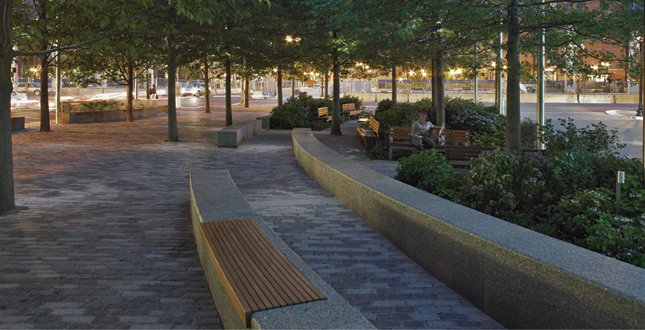

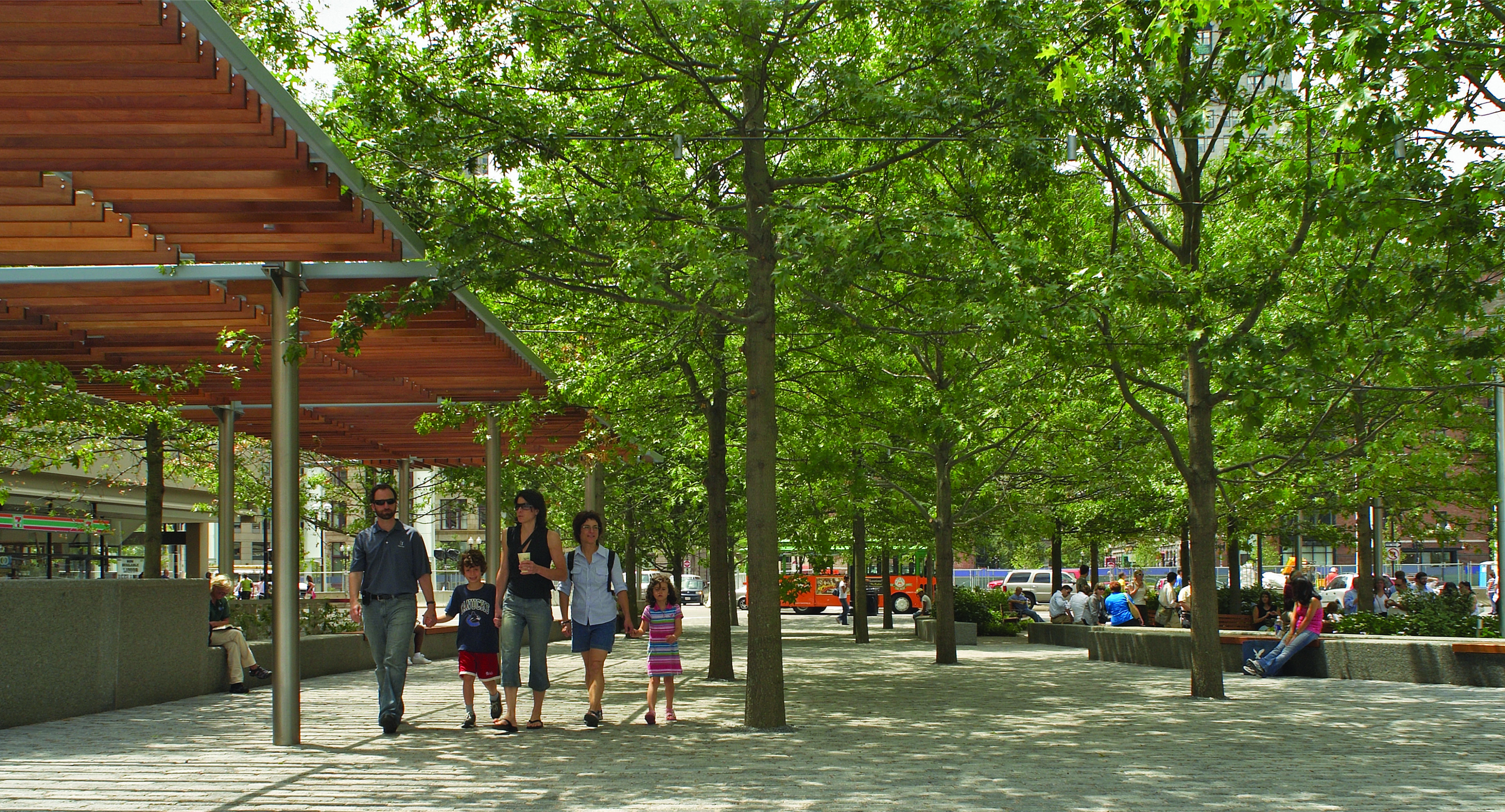

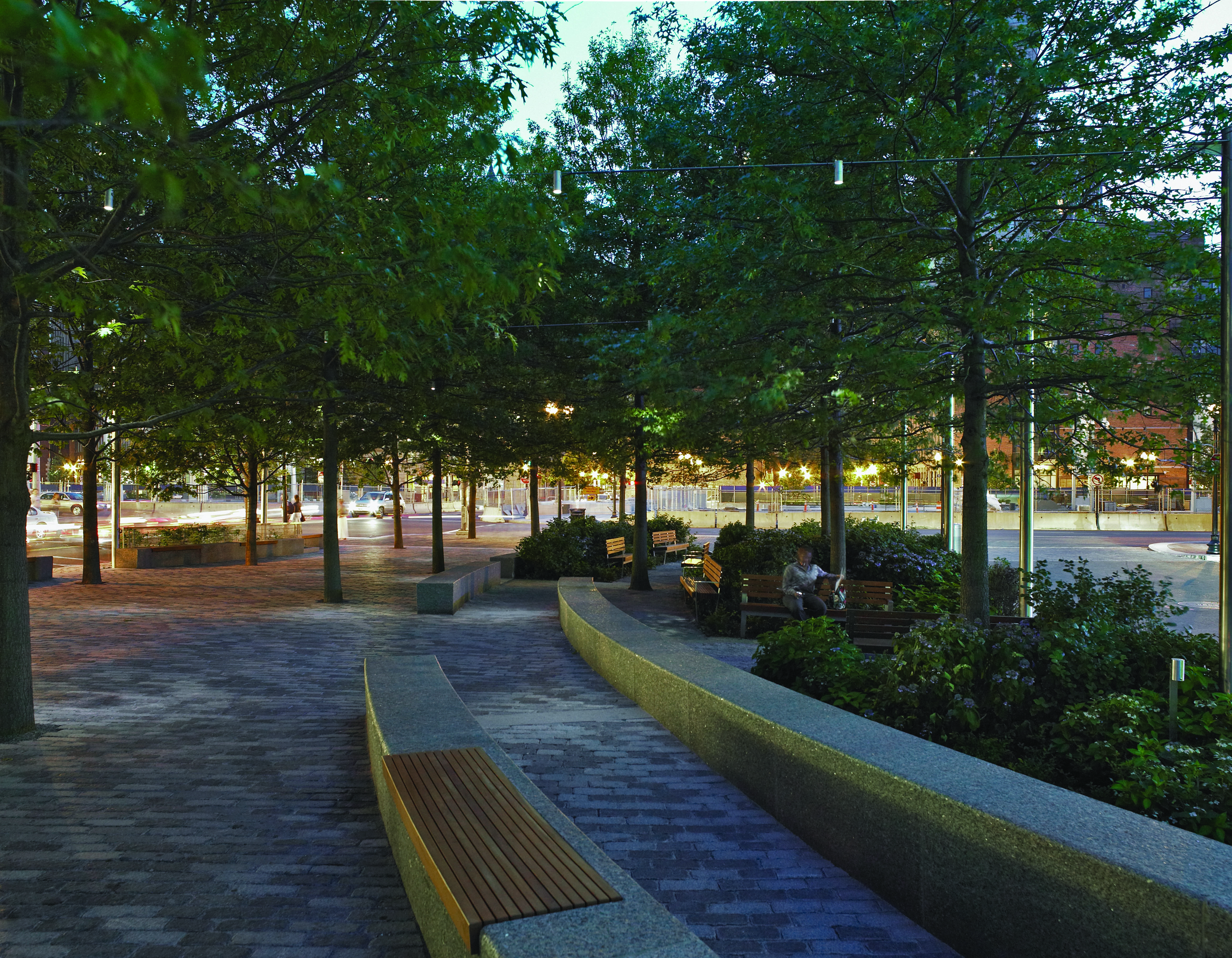

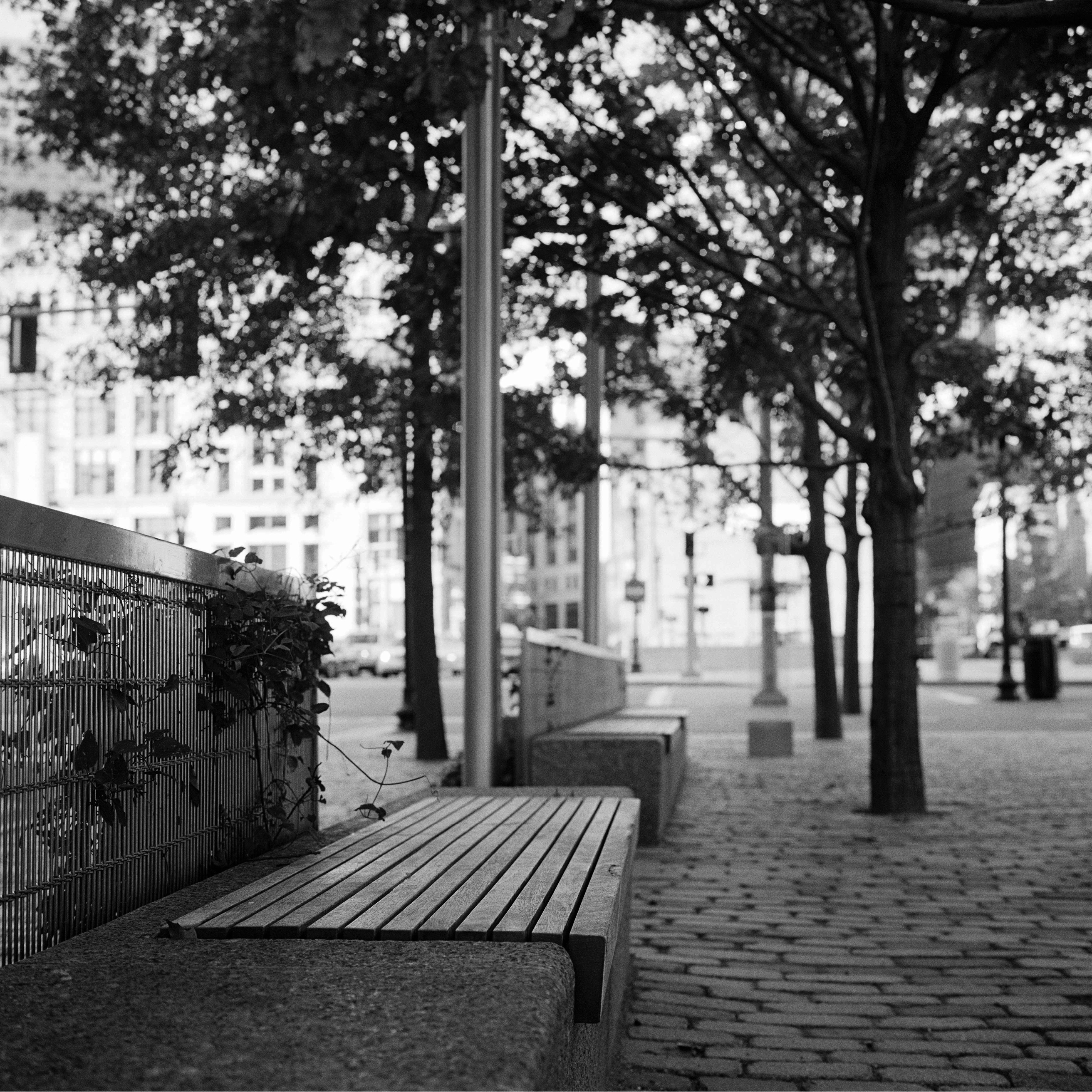

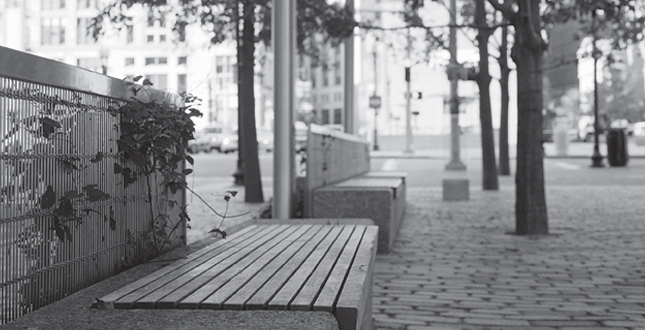

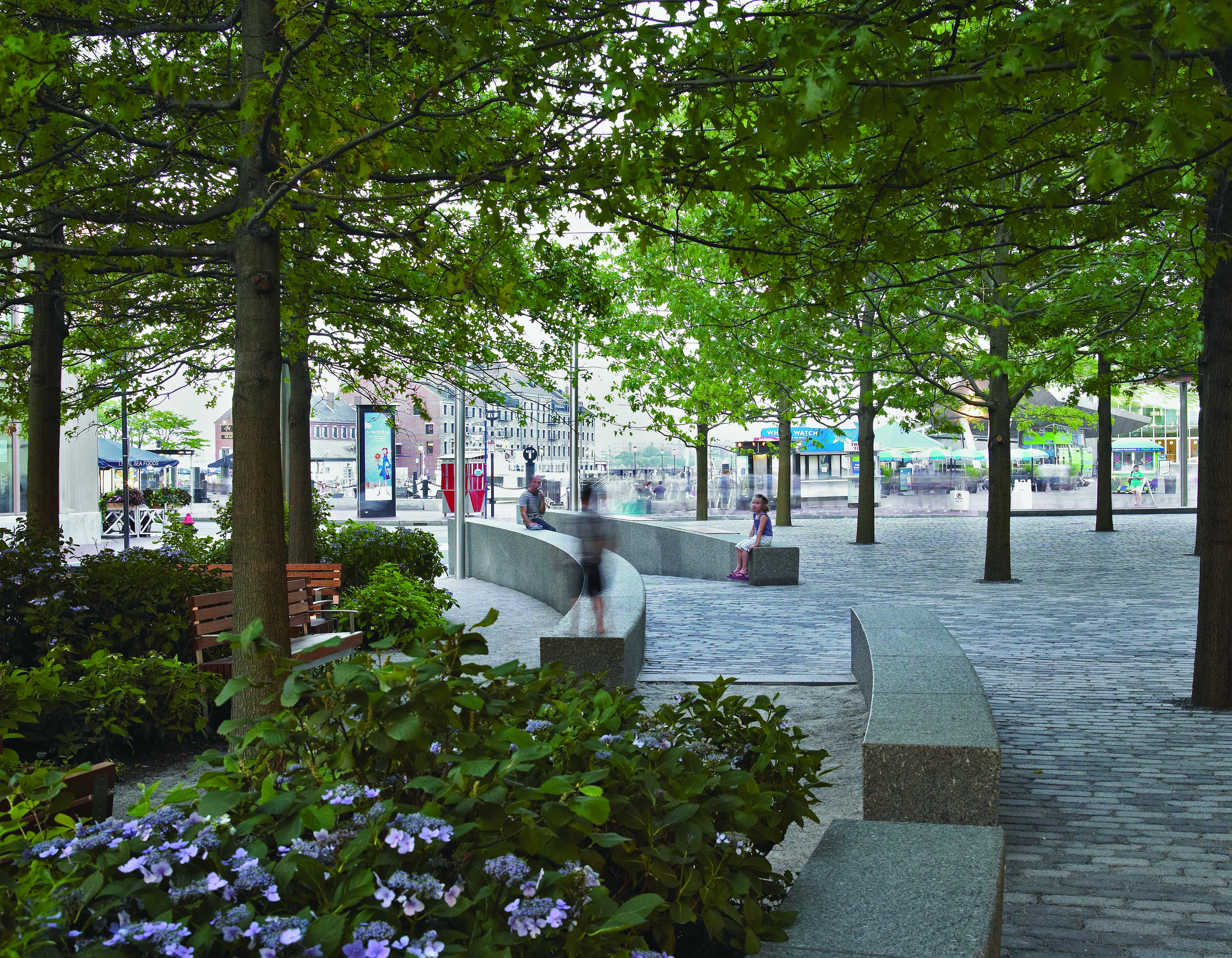

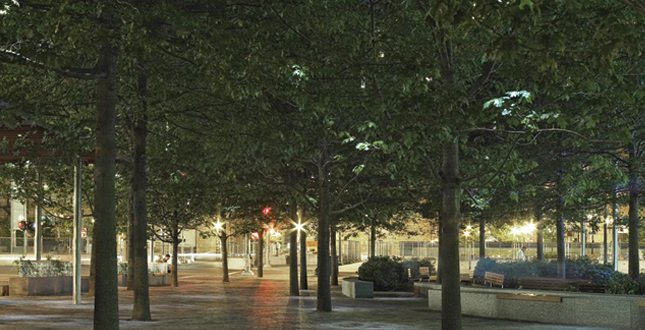

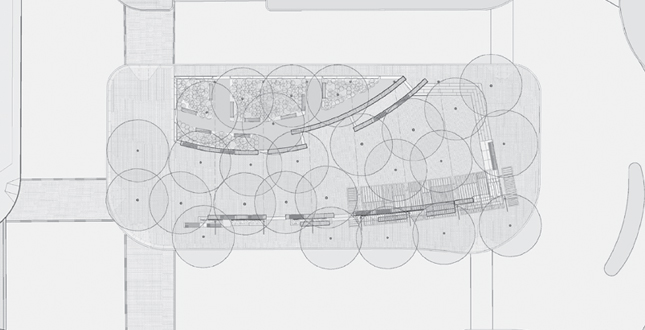

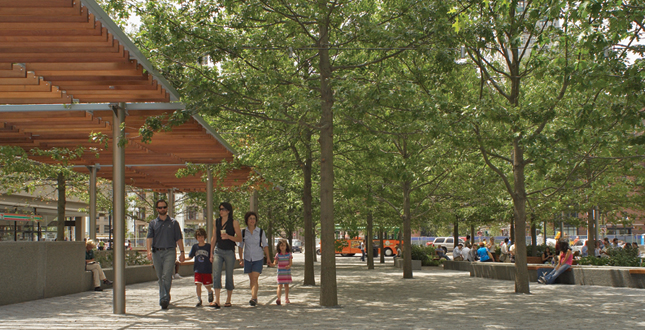

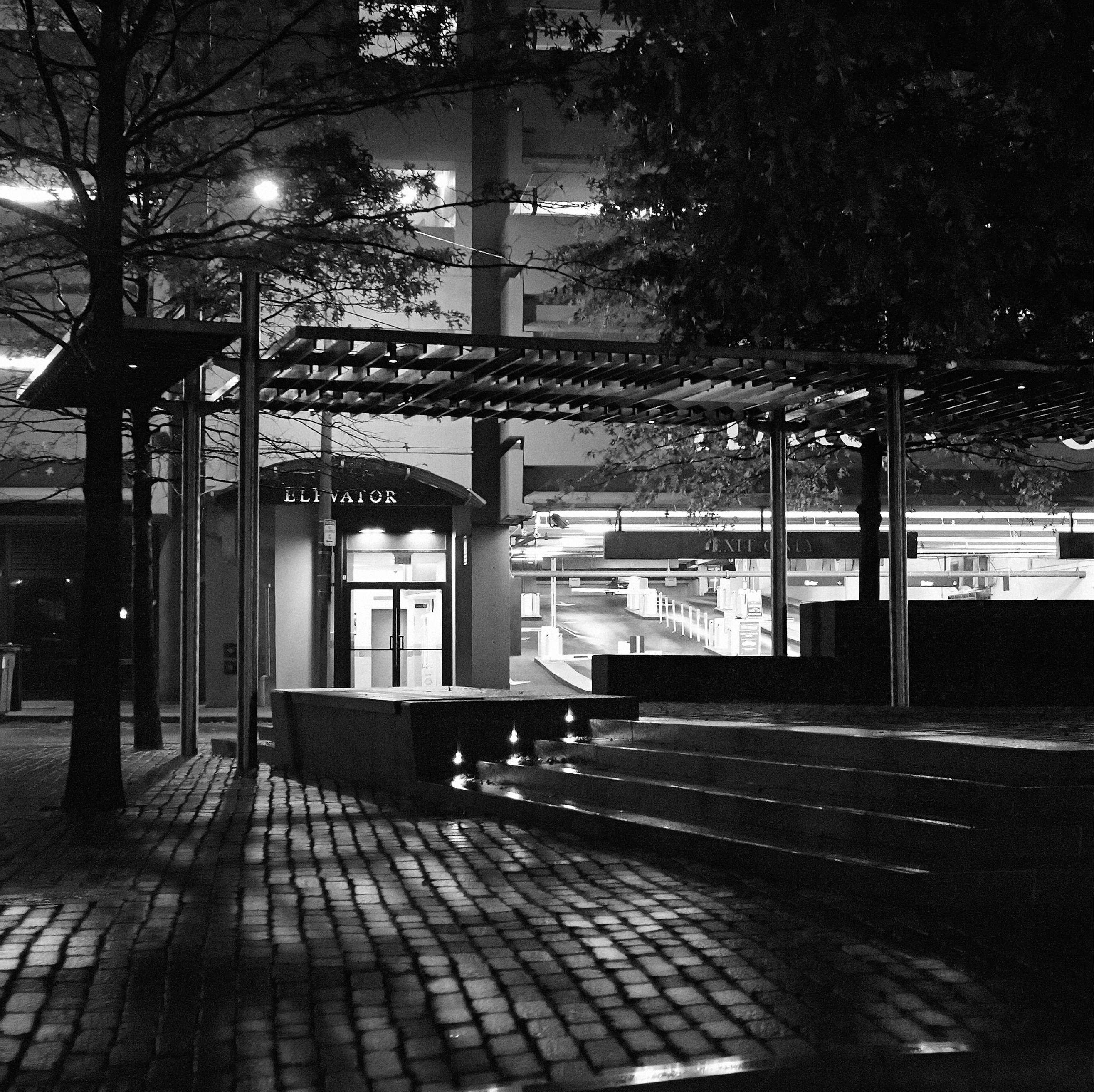

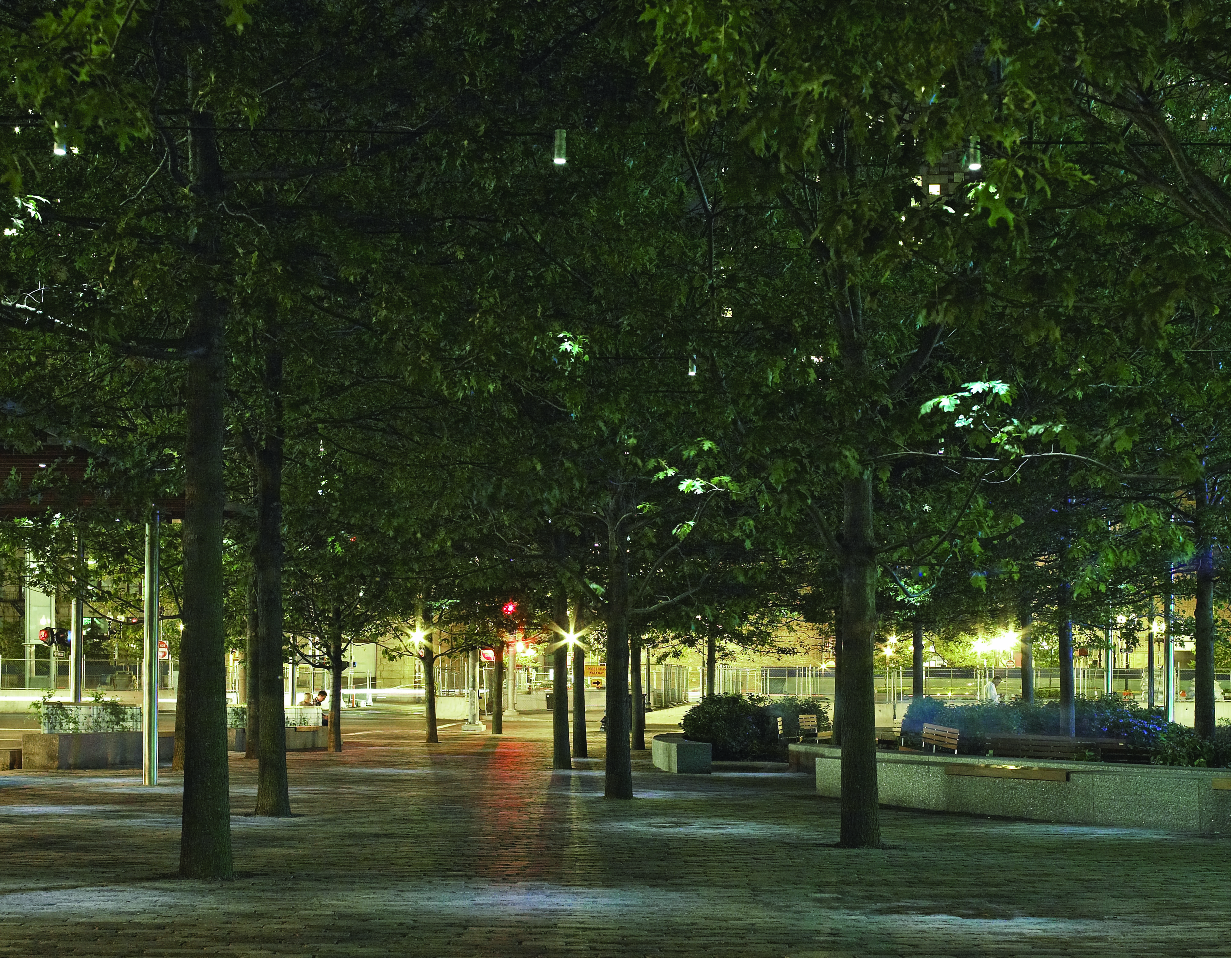

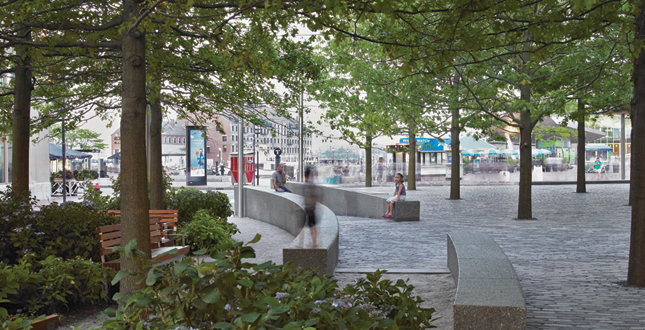

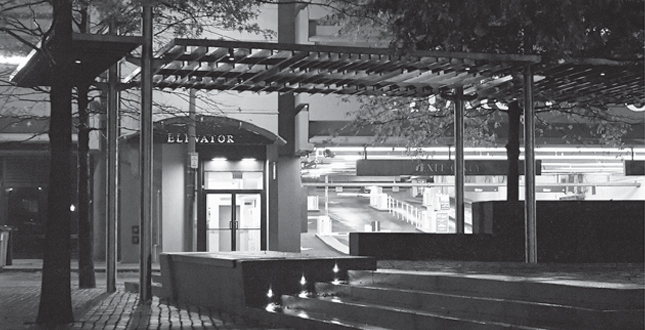

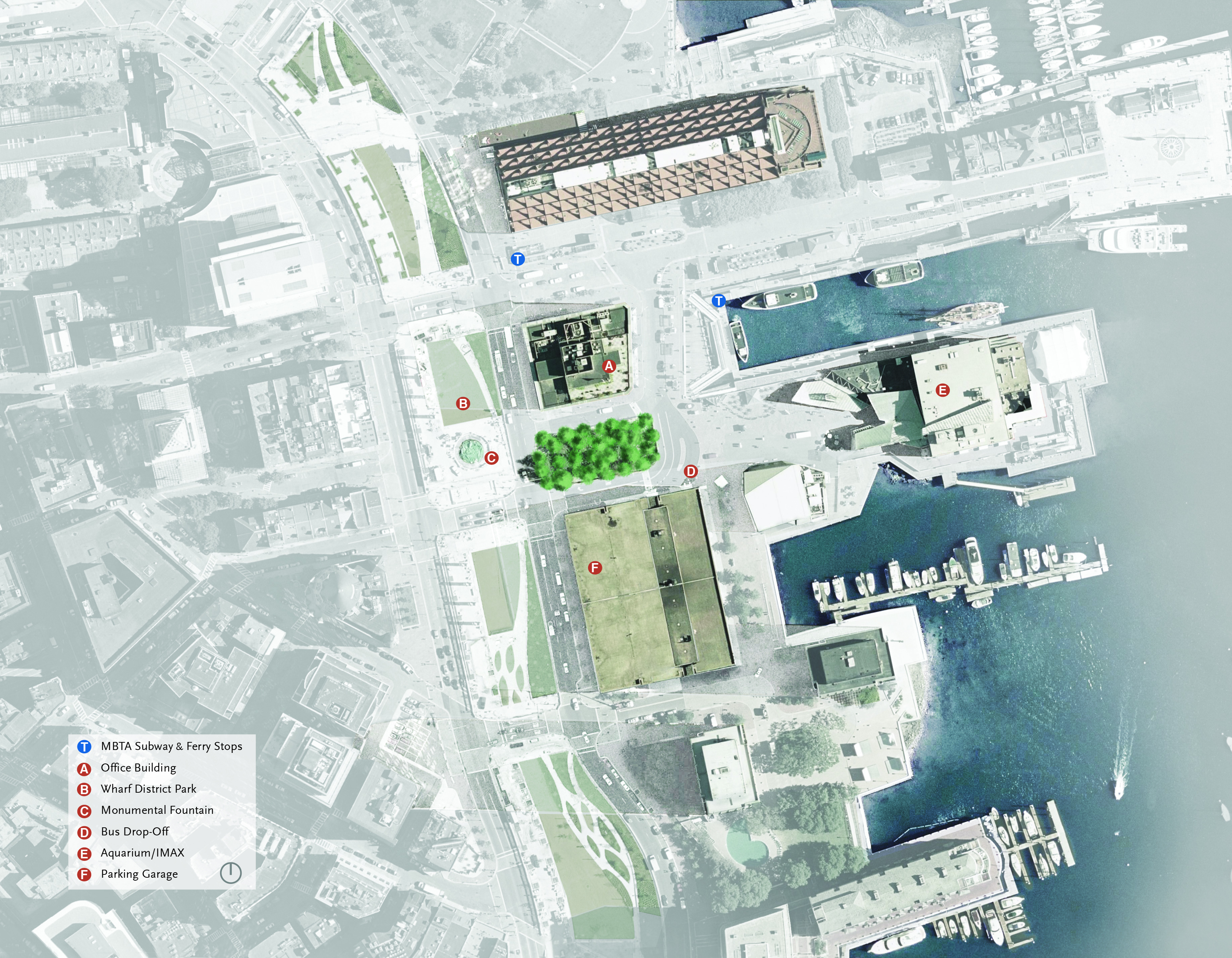

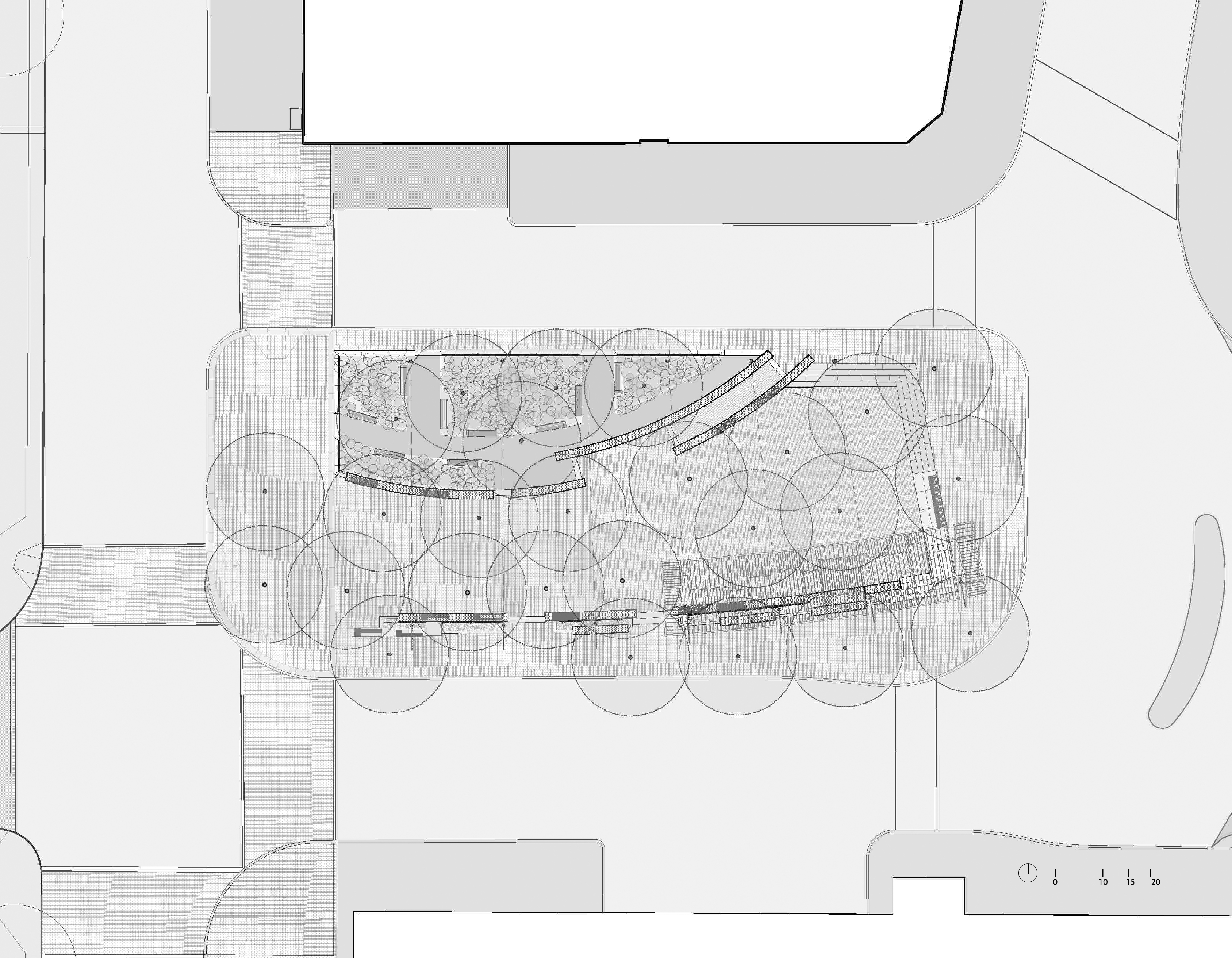

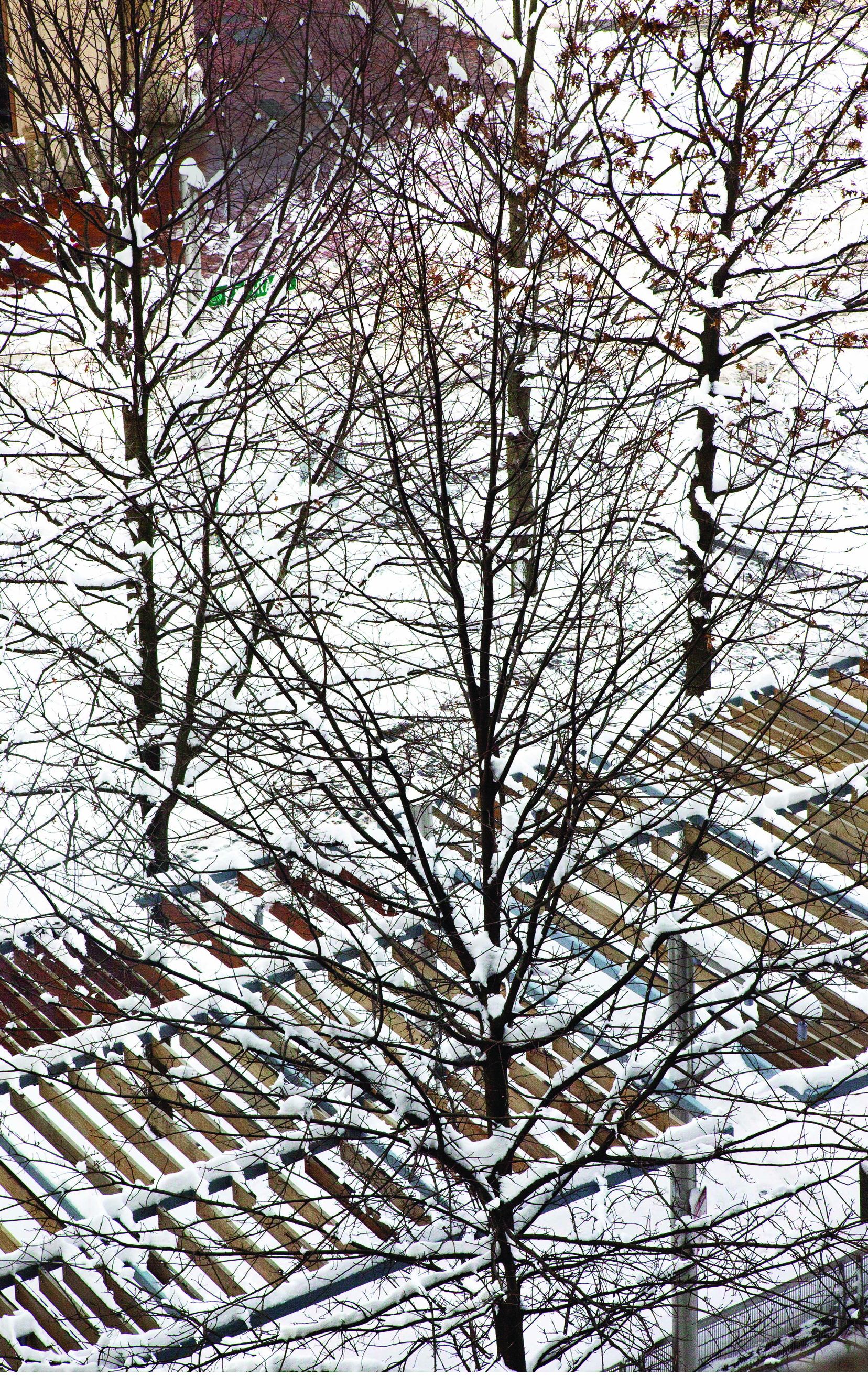

The project exploits characteristics of urban connective tissue and settled place: knitting the Financial District to the harbor and providing a comfortable but not isolated respite from the busy surroundings. The scheme was conceived as a simple arcing gesture that accommodates strong diagonal movement through the site, emphasized by granite walls, planted steel screens, and a wood and steel arbor. The plaza surface is sloped at a 2% gradient, which produces a pitched plane with elevated views toward the water and a stepped gathering place at the active harbor edge. A constellation of LED lights hung from catenary wires threaded though the tree canopy casts an efficient, subtle, and festive quality of light within the tree-filled space and extends the useful hours of the plaza.

Supporting people and plants

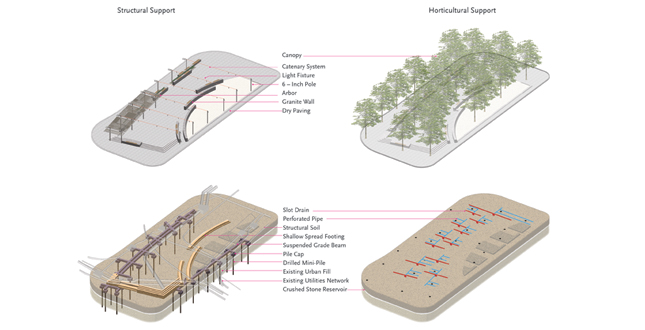

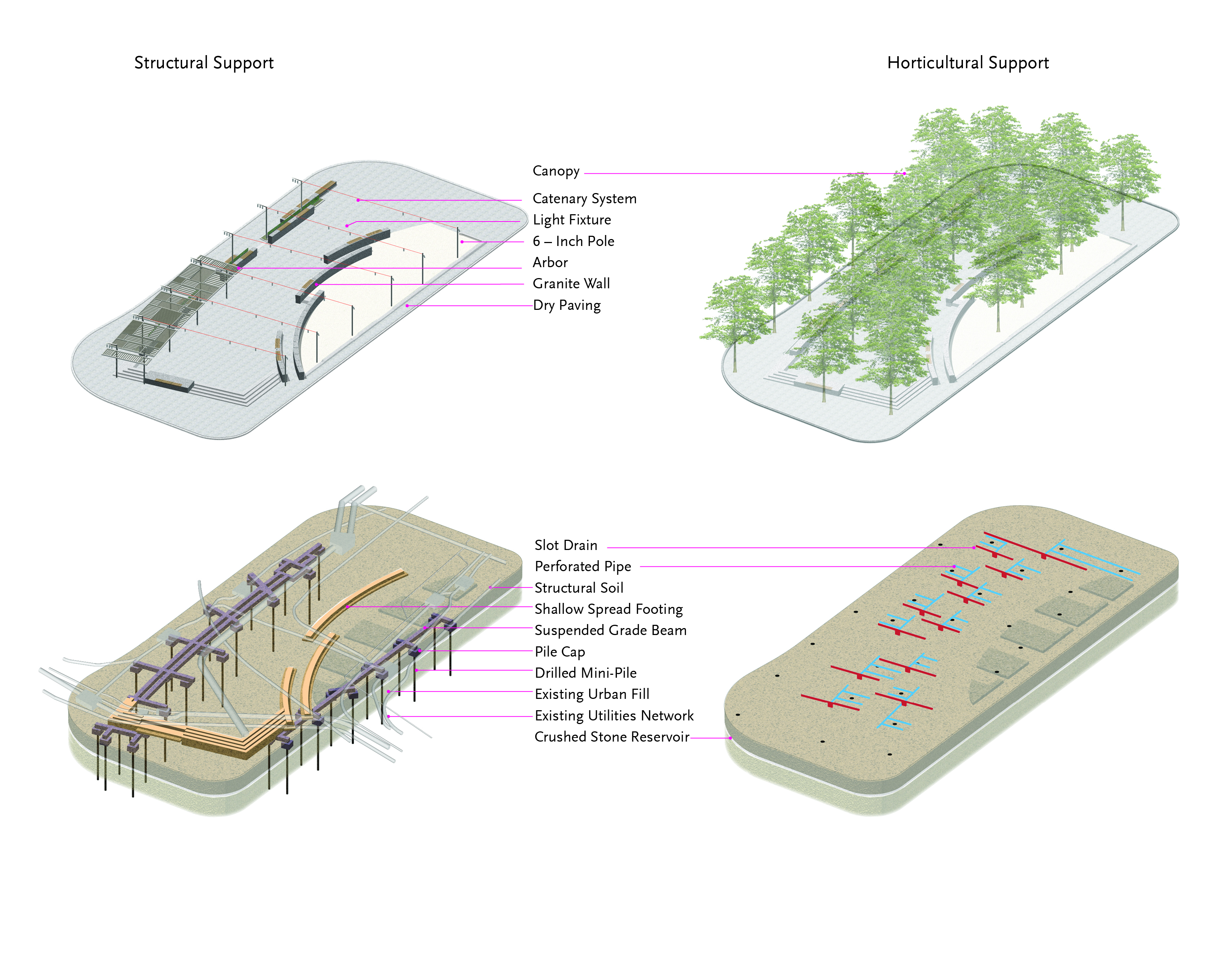

To promote root zone health in a highly exposed site laden with myriad underground utilities, the design team—landscape architect, urban designer/architect, soils engineer, soils biologist, and arborist along with structural, civil, and geotechnical engineers—collaborated on an integrated and optimized infrastructure to support healthy trees and heavy public uses. Dry-laid paving allows rainwater to infiltrate while supporting vehicular loading requirements. Slot drains convey excess runoff and air to the root zone through a perforated lattice below; runoff is harvested and delivered directly to the trees. A continuous sand-based soil medium filters stormwater as it percolates and supports seat walls and steps without deep footings that would otherwise interrupt the root zone. Mini-piles and spanning grade beams support walls and columns, reducing physical barriers throughout the root zone and allowing site flexibility to avoid unforseen utilities configurations below grade. This system, although requiring some design invention and unconventional flexibility with permitting agencies, is achievable with sufficient construction coordination. As a result this plaza is both highly urban and eminently sustainable—the most significant indicator of its beneficial practices being the robustly healthy canopy of trees and diverse public uses it supports.

Project Resources

Architect/Project Lead: Chan Krieger NBBJ

Construction Manager: Turner Construction Company

Structural Engineer: Arup

Civil Engineer: Vanasse Hangen Brustlin, Inc.

Soils Engineer

Lighting Design: Lam Partners Inc.

Landscape Contractor: ValleyCrest Landscape Development
