Award of Excellence

Drs. Julian and Raye Richardson Apartments
San Francisco

Andrea Cochran Landscape Architecture, San Francisco
Client: Community Housing Partnership and Mercy Housing

  • Drs. Julian and Raye Richardson Apartments
    Close Me!

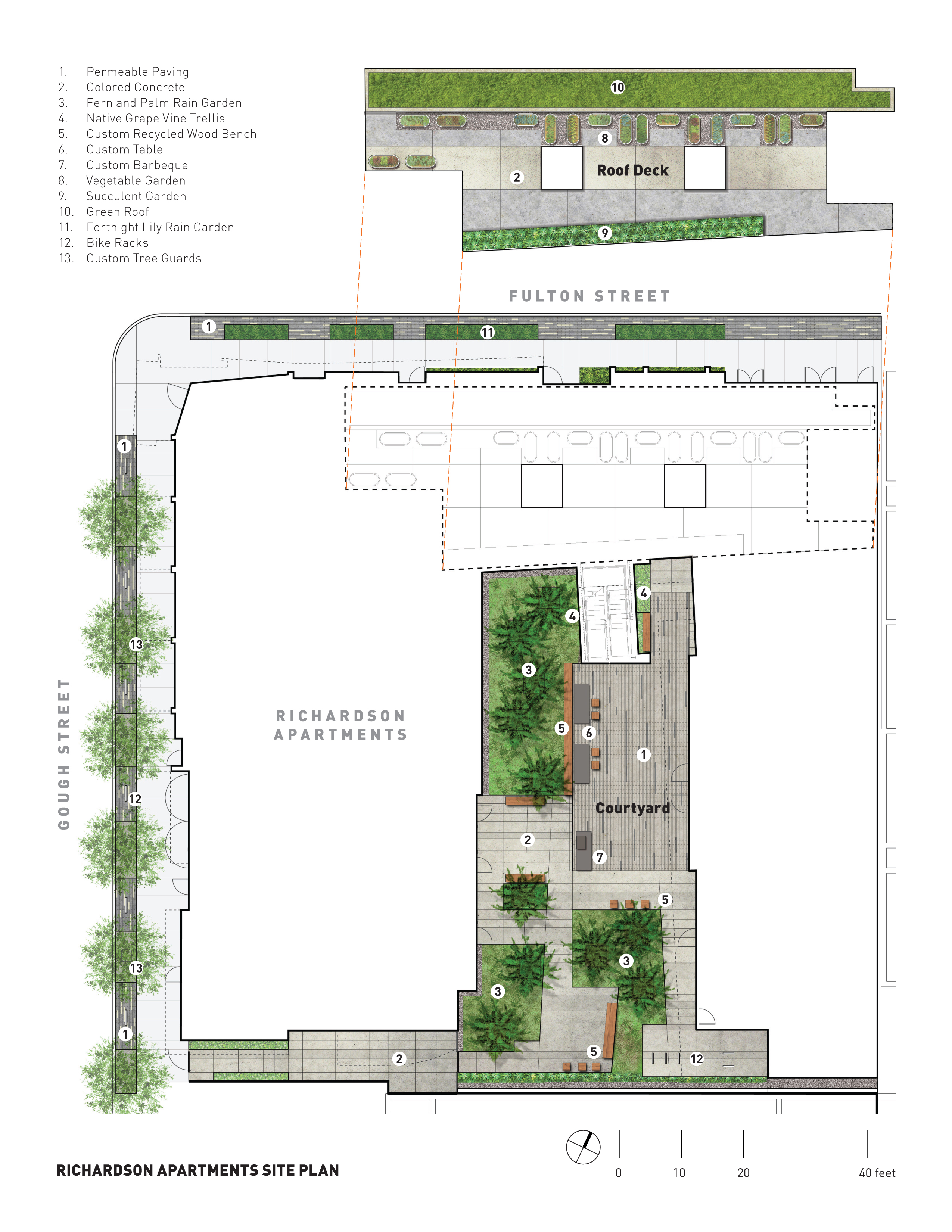

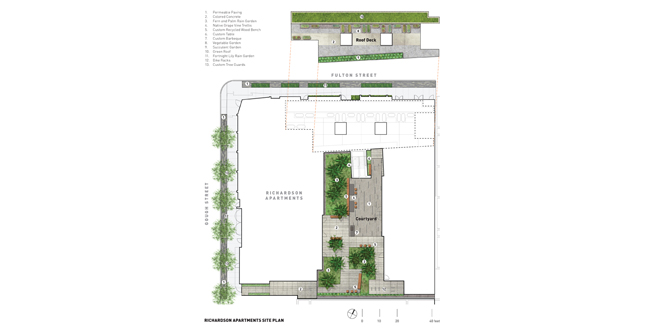

    Site Plan.
    Download Hi-Res Image

    Image: Andrea Cochran Landscape Architecture

    Image 1 of 14

  • Drs. Julian and Raye Richardson Apartments
    Close Me!

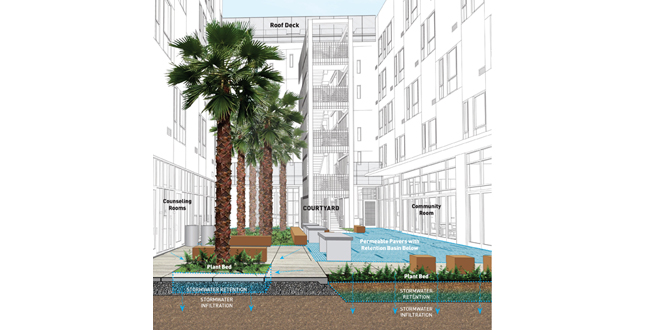

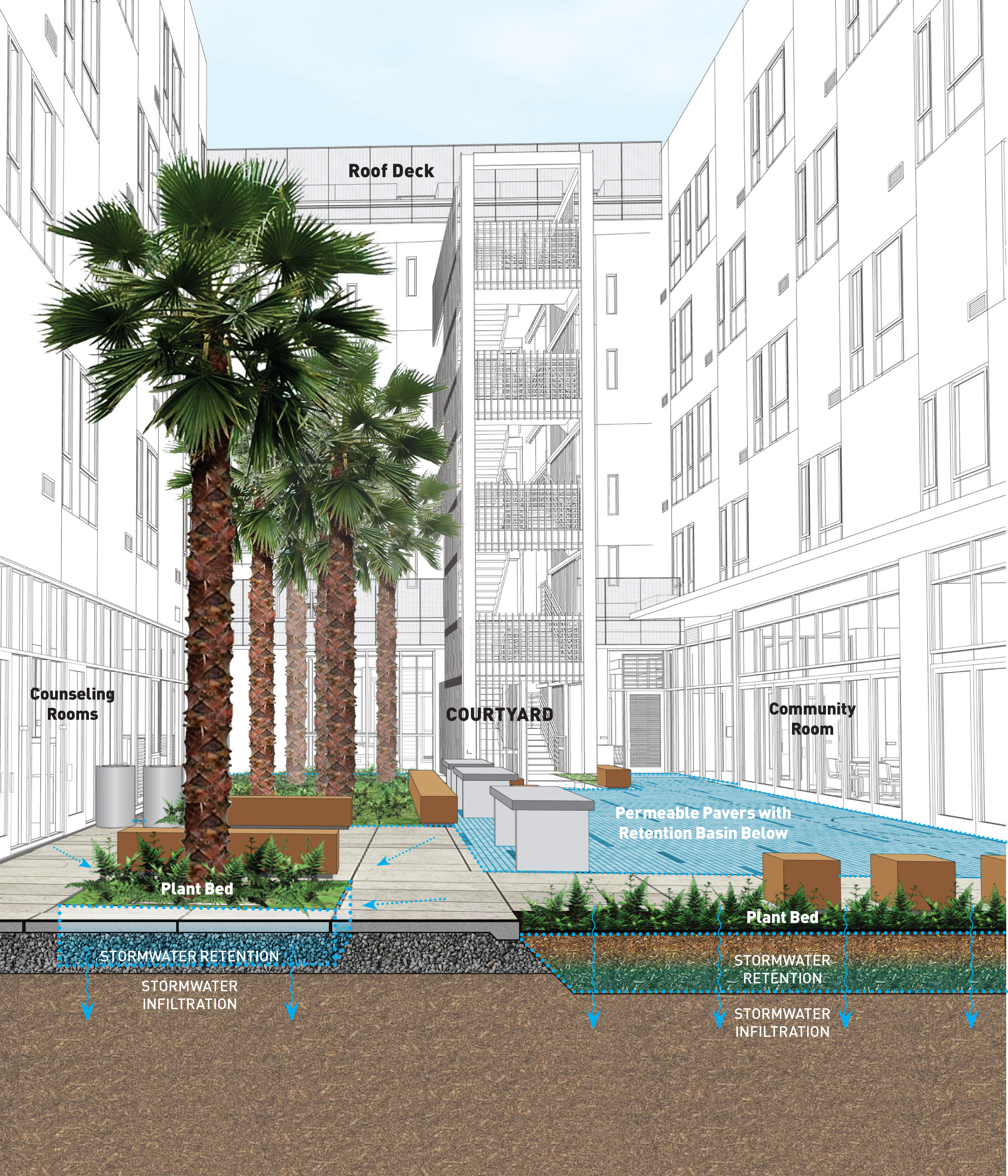

    Stormwater is retained below grade to reduce peak flow, improving the quality of water released into the bay.
    Download Hi-Res Image

    Image: Andrea Cochran Landscape Architecture

    Image 2 of 14

  • Drs. Julian and Raye Richardson Apartments
    Close Me!

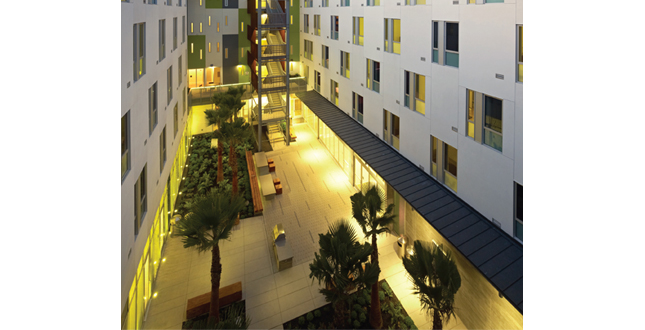

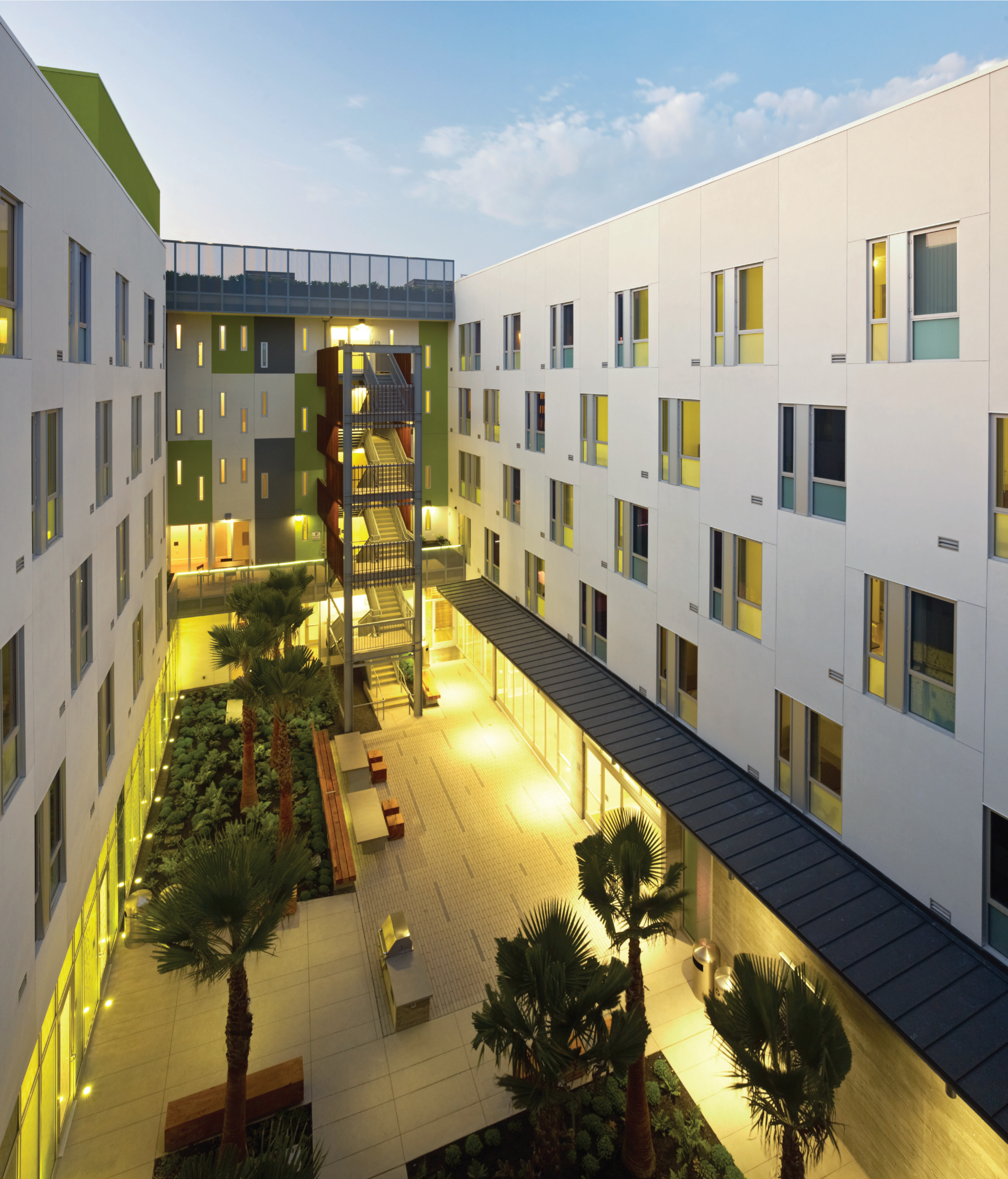

    An overview of the central courtyard in the evening, illustrating the permeability between the architecture and exterior gathering spaces. The Roof Garden is visible through scrim at center.
    Download Hi-Res Image

    Image: Bruce Damonte

    Image 3 of 14

  • Drs. Julian and Raye Richardson Apartments
    Close Me!

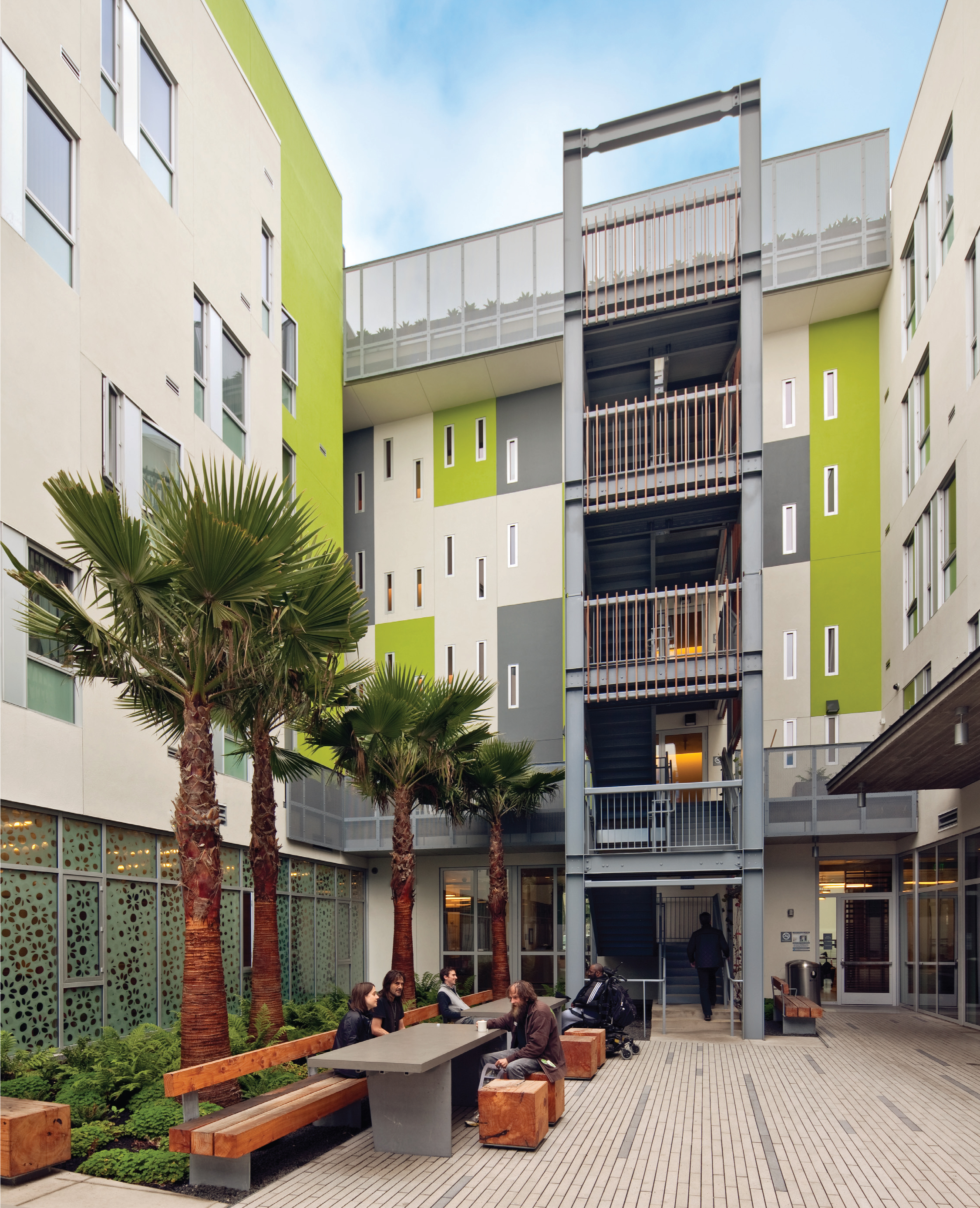

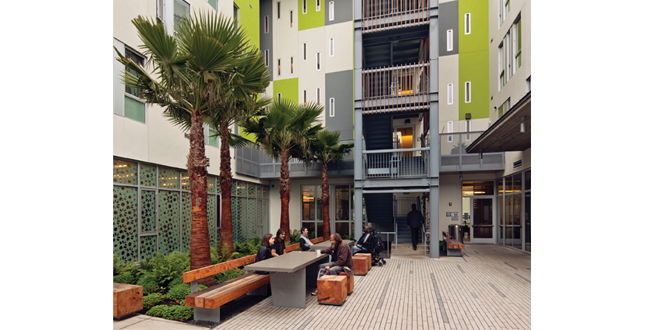

    Living units, public areas, and counseling offices overlook the courtyard. Custom furniture designed by the landscape architects promote communal gathering. Spacers are installed between unit pavers, allowing stormwater to permeate into the gravel retention basin below.
    Download Hi-Res Image

    Image: Bruce Damonte

    Image 4 of 14

  • Drs. Julian and Raye Richardson Apartments
    Close Me!

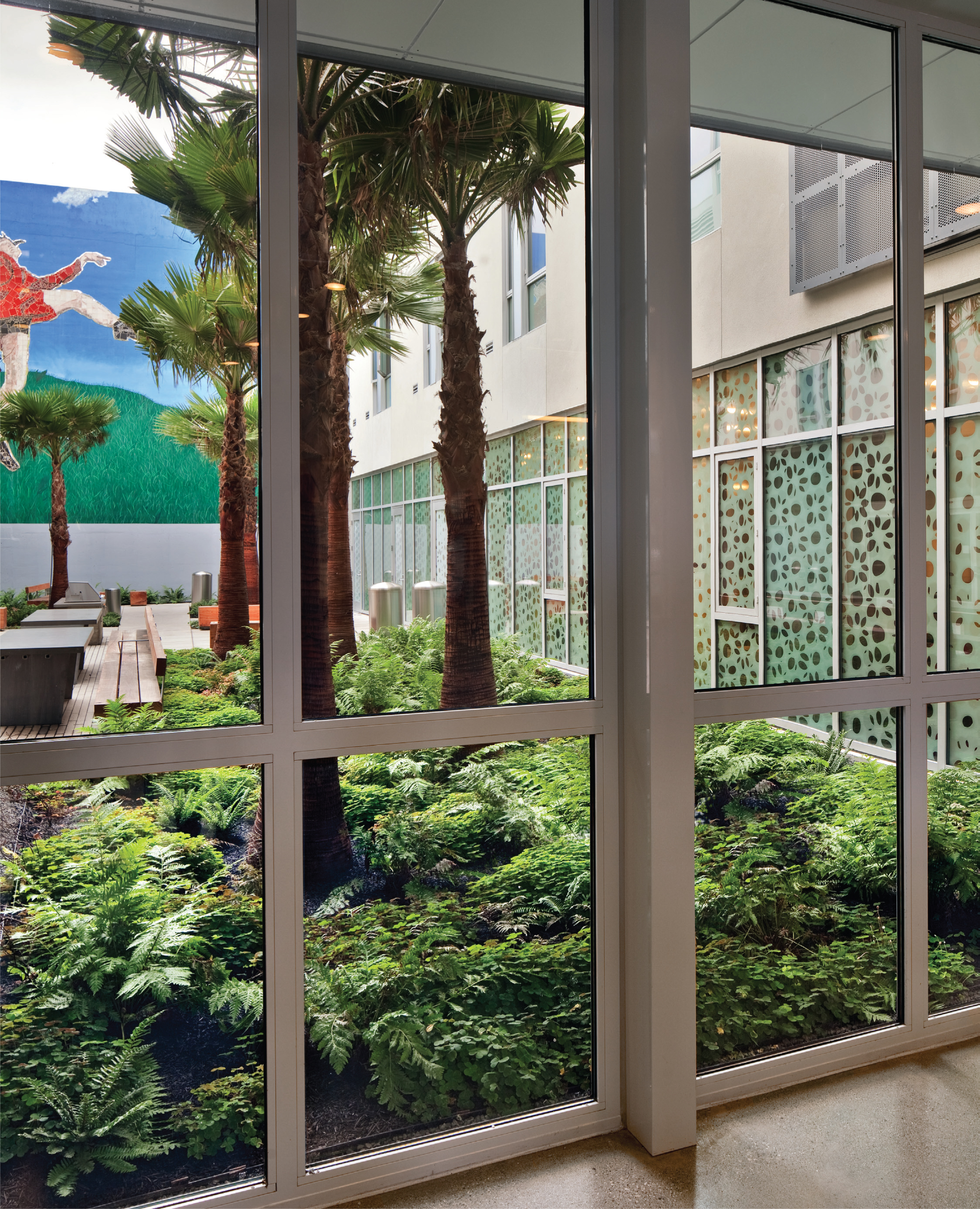

    Entry lobby overlooks a fern rain garden. Mexican Fan Palms provide scale and frame the existing mural beyond.
    Download Hi-Res Image

    Image: Bruce Damonte

    Image 5 of 14

  • Drs. Julian and Raye Richardson Apartments
    Close Me!

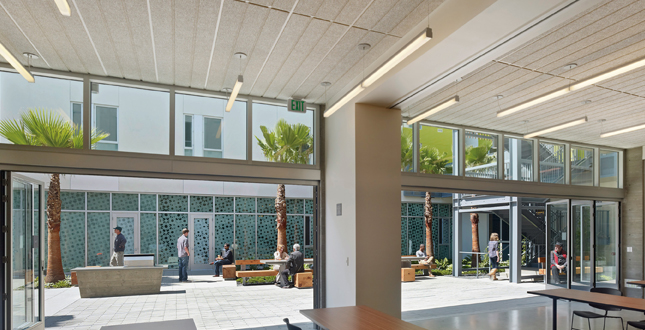

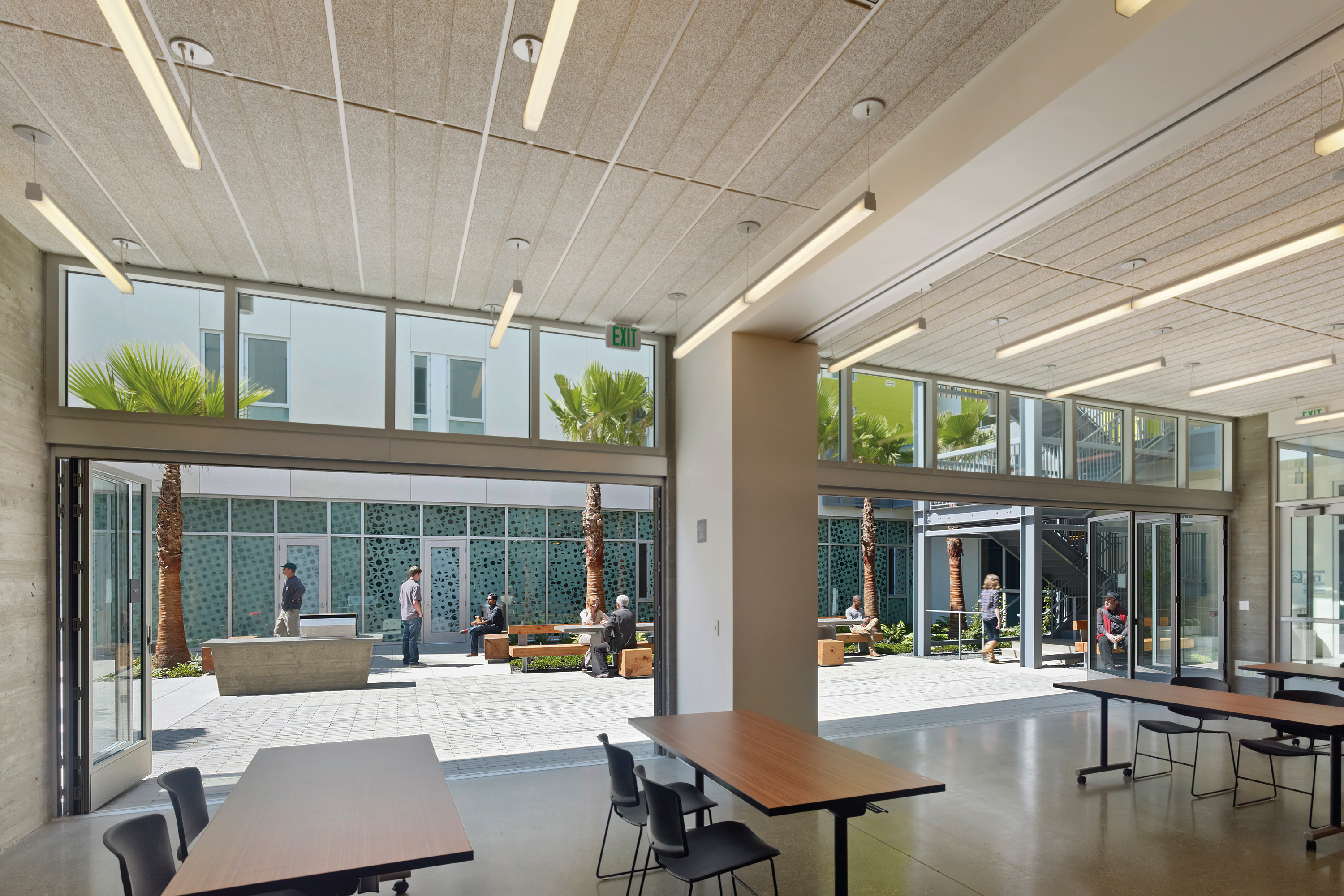

    Architect and landscape architect worked closely to create a seamless connection between interior and exterior public spaces. Custom barbeque designed by landscape architects at left.
    Download Hi-Res Image

    Image: Bruce Damonte

    Image 6 of 14

  • Drs. Julian and Raye Richardson Apartments
    Close Me!

    Landscape architects designed custom furniture from reclaimed cypress logs to create comfortable seating that will withstand heavy use.
    Download Hi-Res Image

    Image: Bruce Damonte

    Image 7 of 14

  • Drs. Julian and Raye Richardson Apartments
    Close Me!

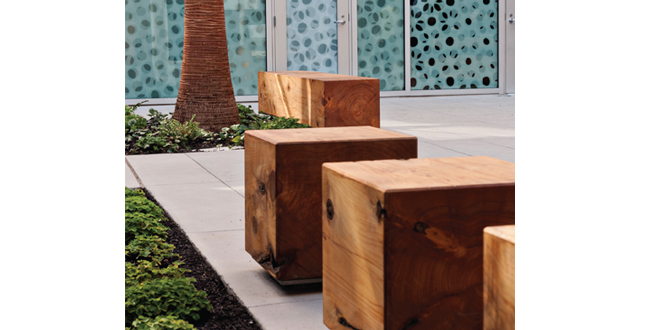

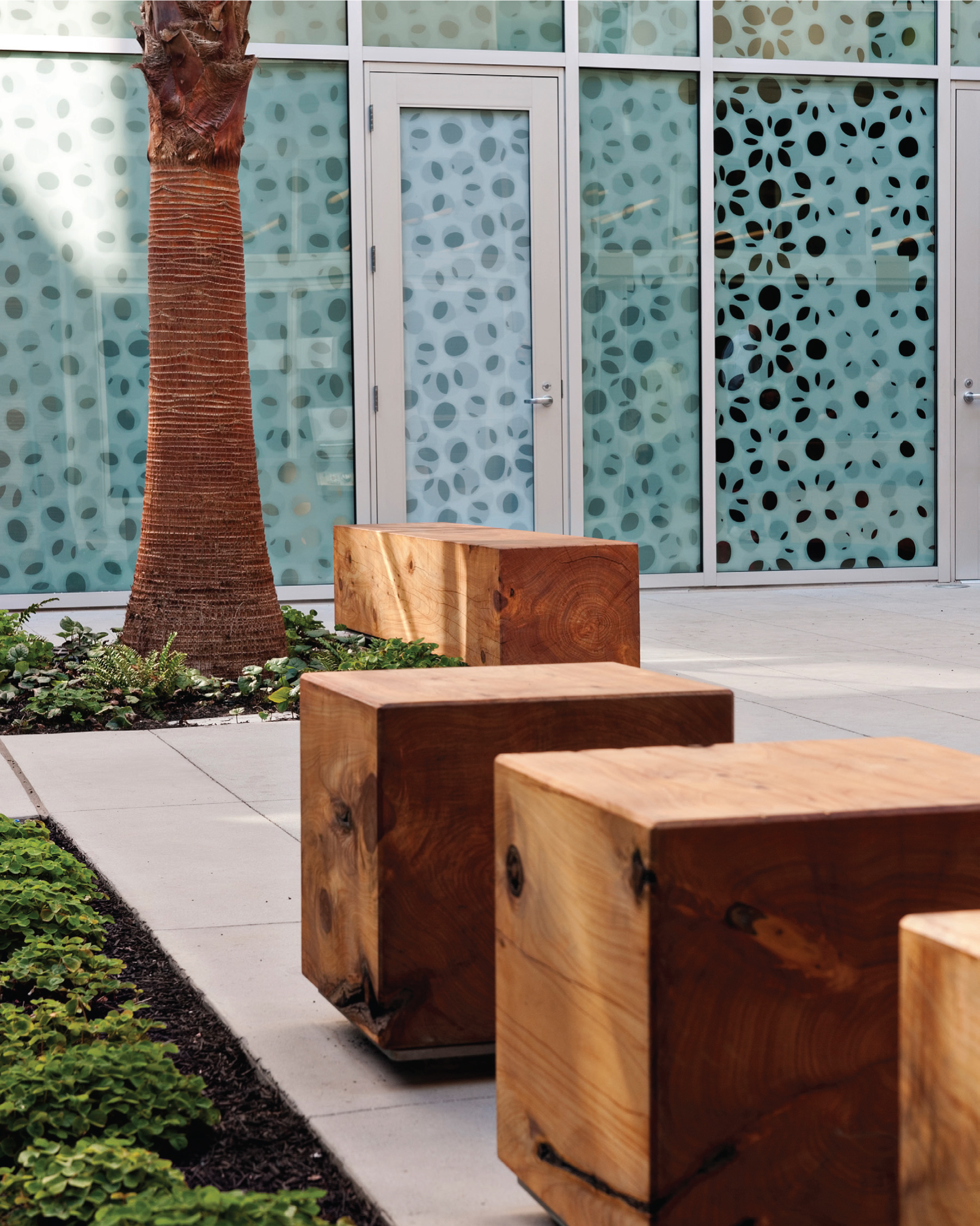

    Custom seats hewn from reclaimed cypress. Architectural scrim offers privacy to the counseling spaces beyond, while allowing for natural light and glimpses of the garden from within.
    Download Hi-Res Image

    Image: Ryan Hughes

    Image 8 of 14

  • Drs. Julian and Raye Richardson Apartments
    Close Me!

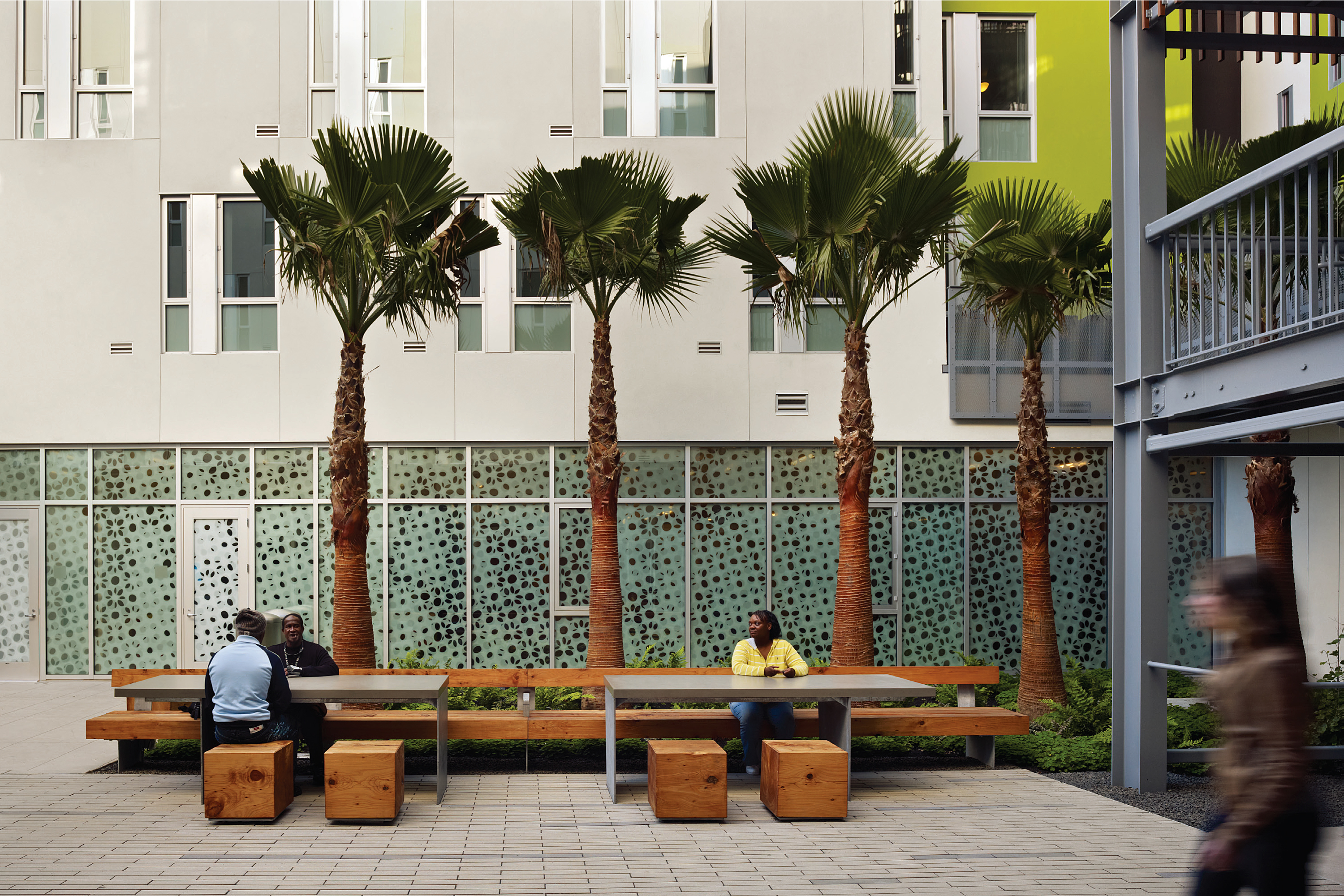

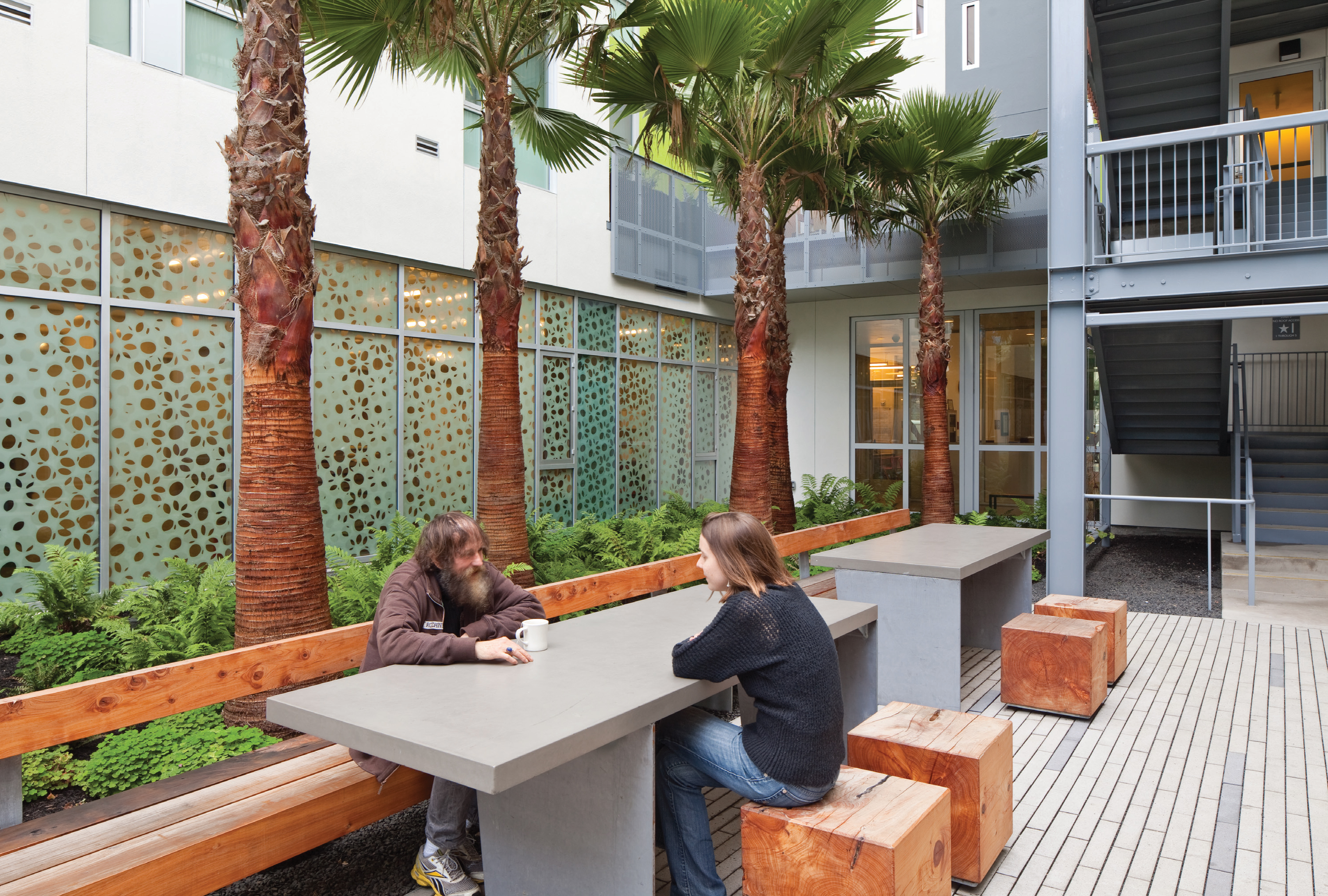

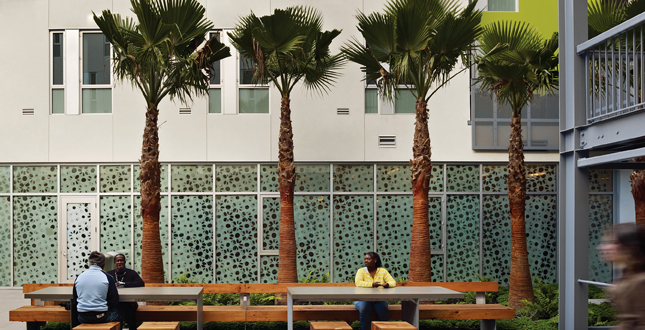

    Custom concrete tables designed by the landscape architects, with galvanized metal supports, and reclaimed cypress benches.
    Download Hi-Res Image

    Image: Bruce Damonte

    Image 9 of 14

  • Drs. Julian and Raye Richardson Apartments
    Close Me!

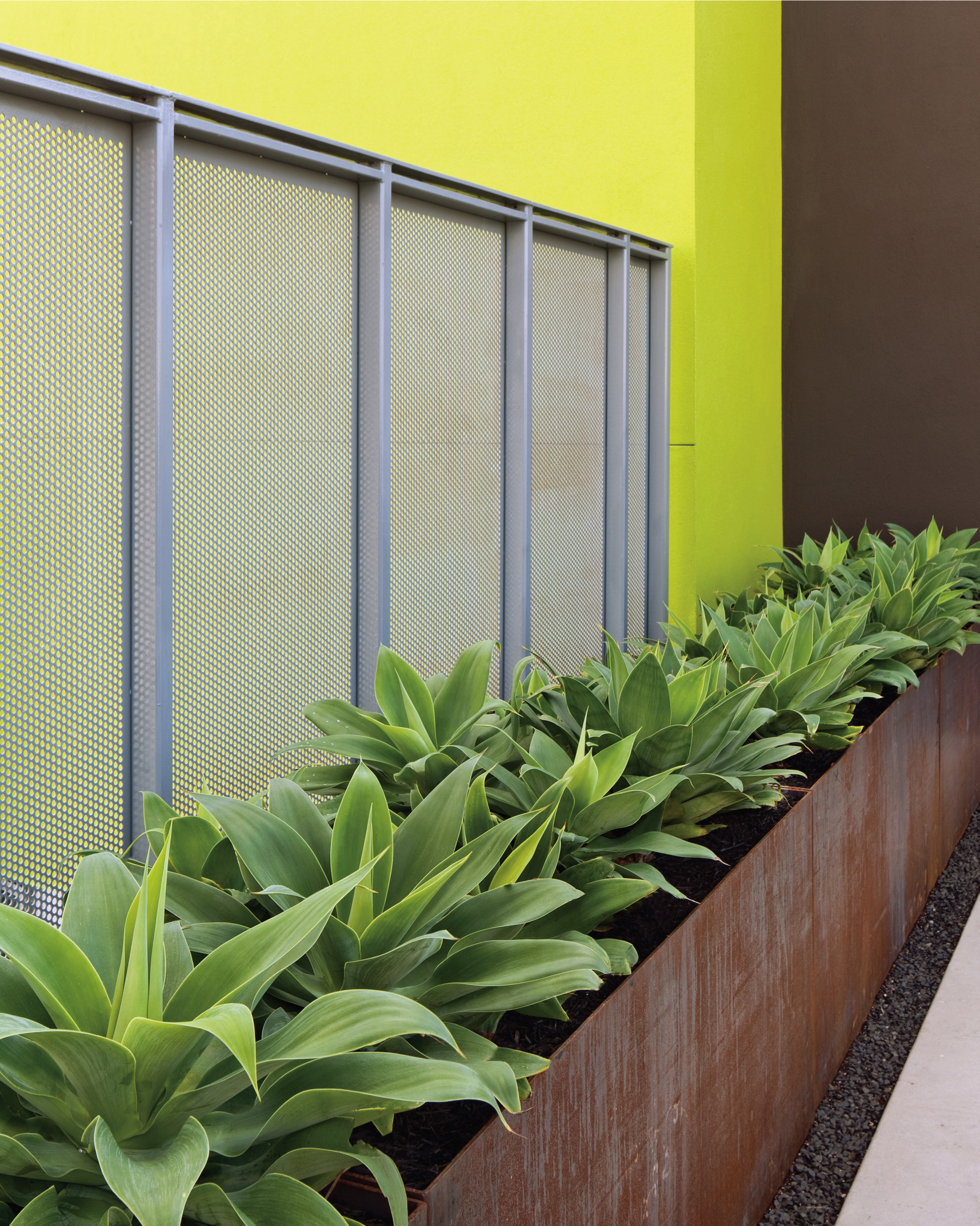

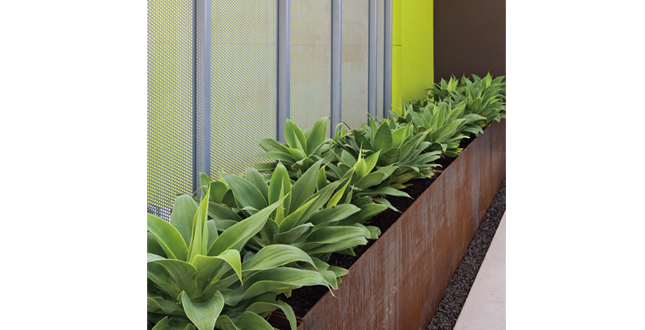

    Agaves line the Roof Deck in custom Cor-ten steel planters. Due to the complex psychological issues some residents grapple with, tall screens provide safe enclosure at the edge of the roof.
    Download Hi-Res Image

    Image: Bruce Damonte

    Image 10 of 14

  • Drs. Julian and Raye Richardson Apartments
    Close Me!

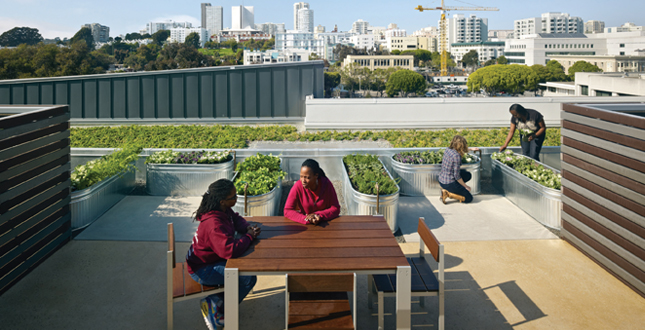

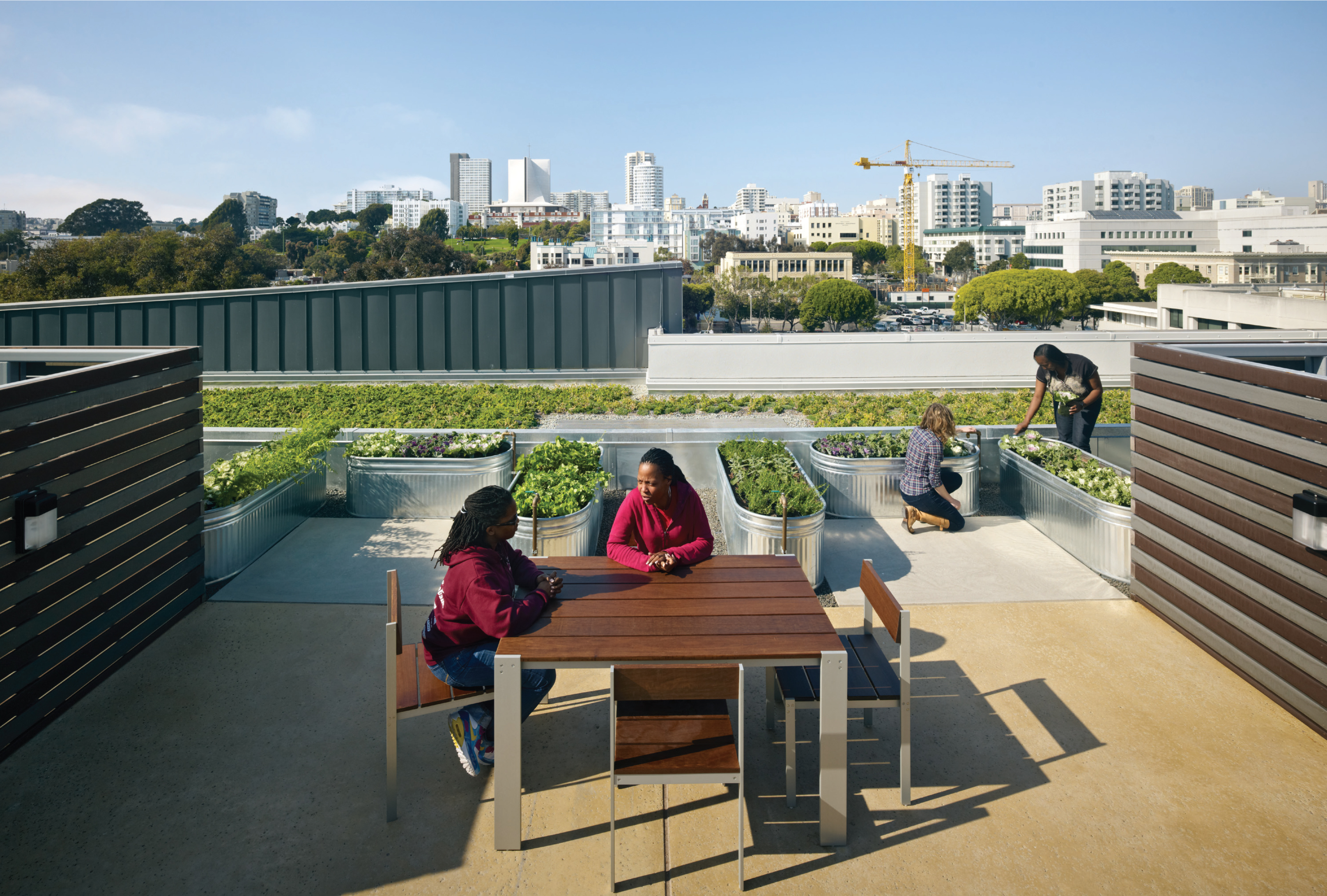

    The Roof Deck offers gathering spaces among roof vents screened with composite boards of recycled wood and plastic, vegetable gardens for residents, and a green roof planted with sedums for stormwater management.
    Download Hi-Res Image

    Image: Bruce Damonte

    Image 11 of 14

  • Drs. Julian and Raye Richardson Apartments
    Close Me!

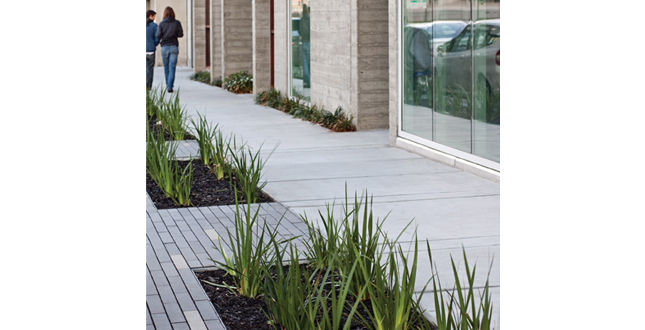

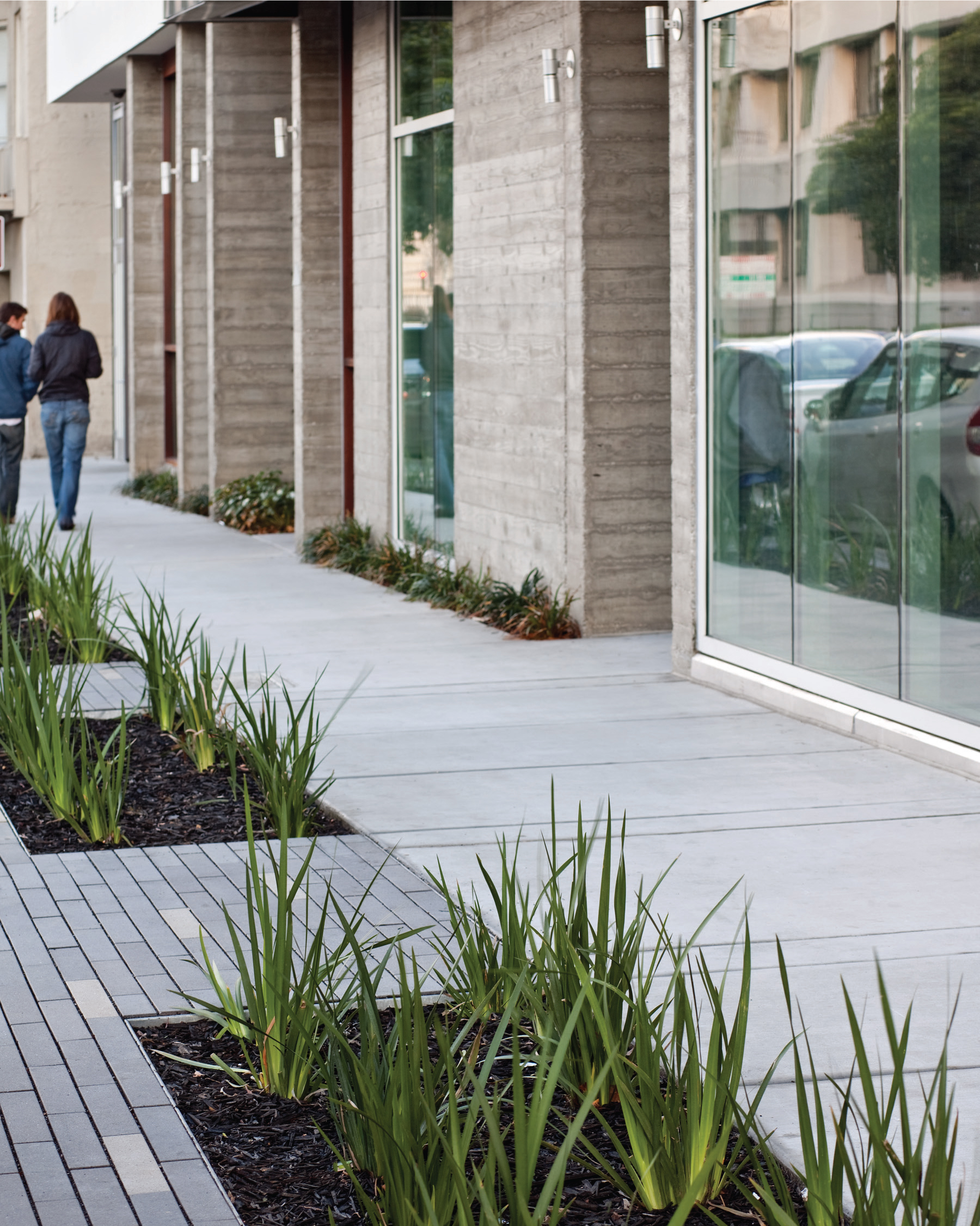

    Streetscape improvements along Fulton Street include a rain garden with Fortnight Lily and new permeable paving at the curb.
    Download Hi-Res Image

    Image: Bruce Damonte

    Image 12 of 14

  • Drs. Julian and Raye Richardson Apartments
    Close Me!

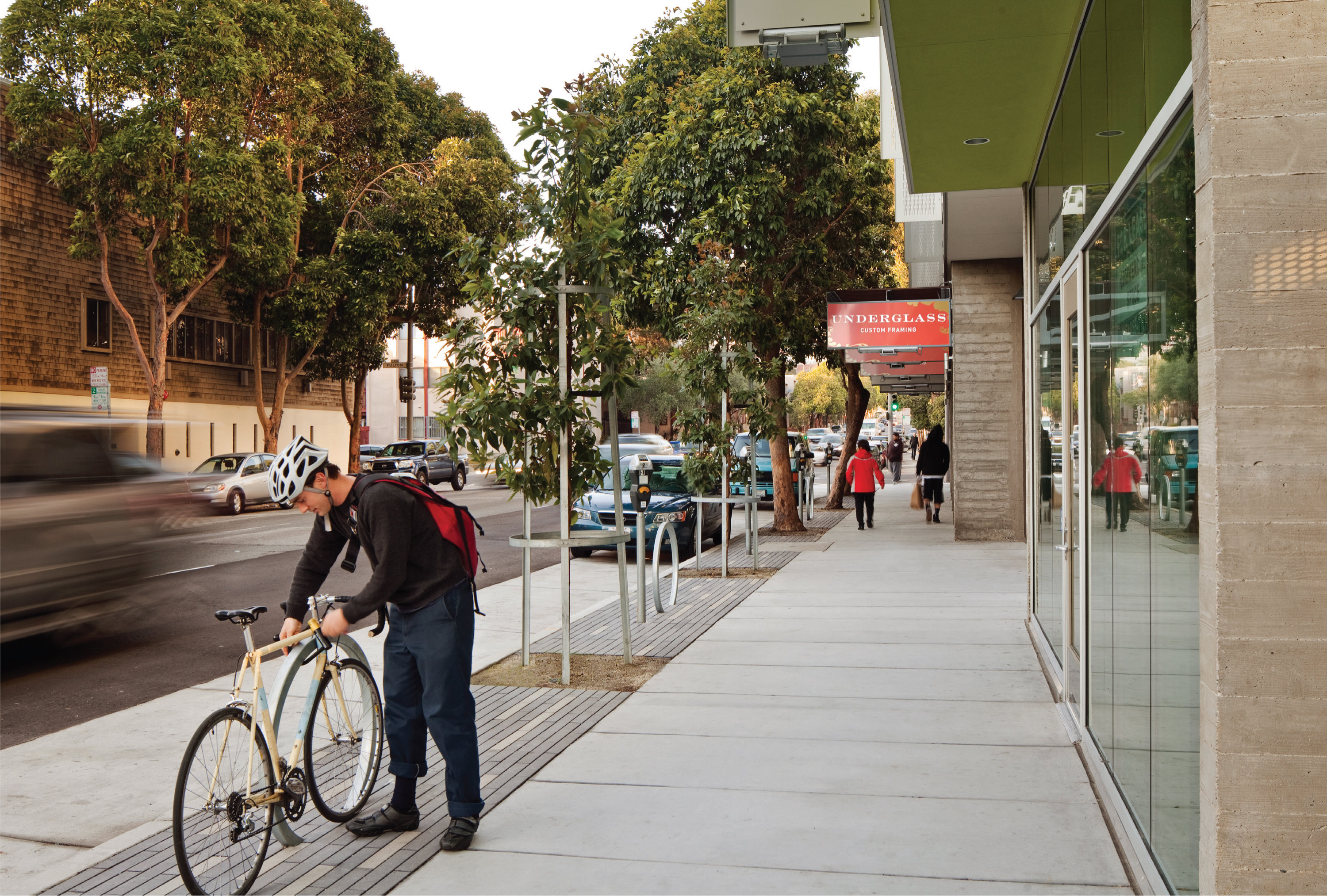

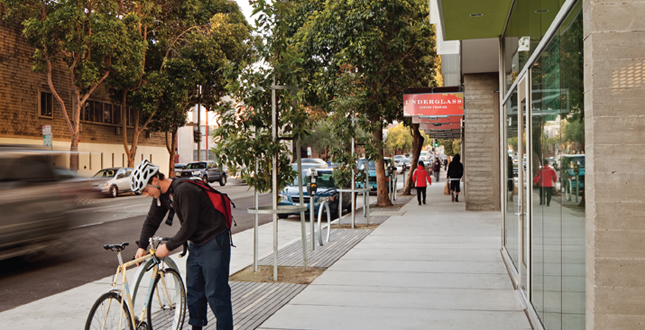

    On Gough Street, new bike racks are installed in new permeable paving. Custom tree guards withstand vandalism and protect new street trees.
    Download Hi-Res Image

    Image: Bruce Damonte

    Image 13 of 14

  • Drs. Julian and Raye Richardson Apartments
    Close Me!

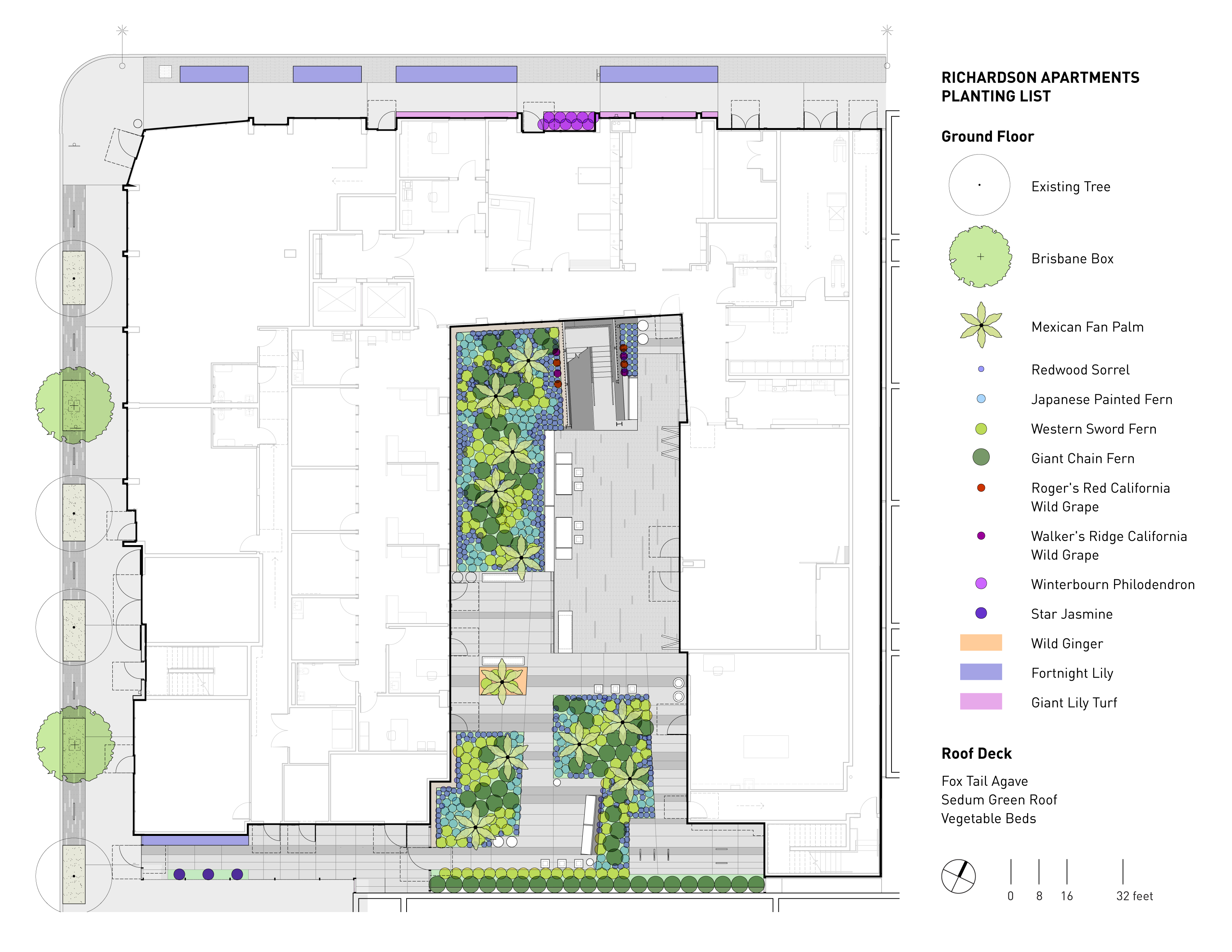

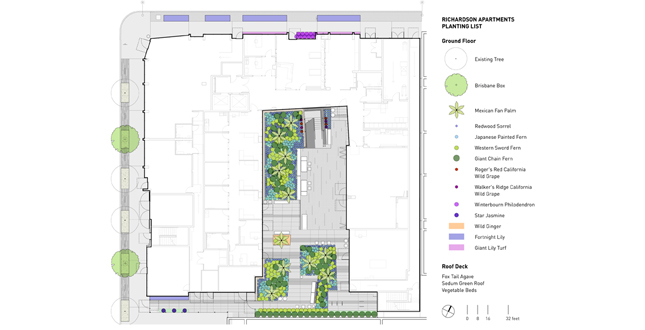

    Planting Plan.
    Download Hi-Res Image

    Image: Andrea Cochran Landscape Architecture

    Image 14 of 14

Project Statement

The Drs. Julian and Raye Richardson Apartments provide a dignified home for formerly homeless residents with 120 fully-equipped studios and supportive services, including counseling, medical care, job-training, and employment opportunities.  The landscape design encompasses a streetscape, a central courtyard, and a roof deck – all fully-accessible with custom furnishings. The project uses local materials and offers a multi-faceted stormwater management with permeable paving over a gravel infiltration system, rain gardens, and a green roof.

Project Narrative

This project conveys the power of design on a meager budget. It is elegant in its simplicity, yet resonates very strongly. It’s one of those projects that is really benefiting a much larger population.
—2012 Professional Awards Jury

Project Background

On a half-acre site in an up-and-coming San Francisco neighborhood, the Drs. Julian and Raye Richardson Apartments provide a dignified new home for formerly homeless adults. The 120-unit, GreenPoint-Rated building offers supportive services such as a counseling center, an on-site medical suite, a job training program, and employment opportunities through the building’s bakery and cafés. In addition to their individual studios, each with a full bathroom and kitchenette, residents enjoy common amenities such as a large courtyard garden, a roof deck, laundry facilities, a lounge, and a large community room — all fully accessible to people with disabilities.

Financed by multiple public agencies, two non-profit housing organizations, Community Housing Partnership and Mercy Housing, partnered to develop and maintain this five-story building on a former parking lot, a site that had initially been cleared by the collapse of the Central Freeway in the 1989 Loma Prieta Earthquake. The urban site is well-situated near bus lines, train lines, and services within walking distance.

The apartments are named for Drs. Julian and Raye Richardson, who founded the first, African American-owned bookstore in the United States. Rosa Parks, Angela Davis, Malcolm X, Cornel West, B.B. King, and Huey P. Newton are among the hundreds of esteemed figures to visit the Richardsons’ bookstore, Marcus Books, where Drs. Julian and Raye strove to empower African Americans through critical discussion, education, and politics.

Restorative Gardens

A lush, central courtyard forms the heart of the building, providing a respite from the tough streets on which residents once lived. The courtyard accommodates multiple types of uses within a single space. A large patio with custom tables, benches and barbeque, allows for flexible, communal gatherings, while more private areas provide seating for smaller groups or individual contemplation. The fan palms interspersed throughout the courtyard complement the narrow, vertical nature of the space and playfully engage with the residences on the floors above and the existing mural that forms the south face of the courtyard. Giant chain ferns, Japanese painted ferns, western sword fern, and wood sorrel help to create the atmosphere of a verdant oasis; they are durable, low-maintenance, and adaptable to the extreme solar conditions of full sun and deep shade.

Five stories above the courtyard, a roof deck offers another healing space for residents with seating areas, succulent gardens, raised beds for vegetable gardening, and a green roof with sedums.

The experience of these outdoor gardens permeates the daily life of the residents and staff through various layers of transparency. The entrance lobby connects to the courtyard through a large window that one encounters upon entering the building. Four floors of studios look down onto the courtyard below. A large community room, where meals are sometimes served and classes and gatherings may occur, opens directly onto the large patio space with two large sliding NanaWalls, doubling the program area. Large windows at the counseling rooms are treated with a translucent scrim which creates a visual link with the courtyard while maintaining privacy for the residents. An exterior stairwell, semi-enclosed by native grapevine trellises, exits into the courtyard and fosters chance encounters between residents. These design features help to connect the residents to one another in a healing environment.

Custom Furniture with Local Materials

The custom courtyard furnishings, which include the tables, a built-in barbeque with counter, benches and woodblock seats, are designed to be elegant, comfortable, and extremely durable. With roughly one-third of the building's residents in wheelchairs, the landscape architects also took care to provide full accessibility in their design. Wheelchair access is thoughtfully incorporated in the courtyard through cantilevered tables and spaces adjacent to and across from benches.

The Monterey cypress logs used to fabricate the benches and block seats are reclaimed from urban forests throughout San Francisco. The wood was dried and fabricated locally and finished with a low VOC sealant.
Locally sourced, black basalt gravel lines drainage areas under the benches, at perimeter of the building, and between the joints of the courtyard unit pavers, which are also fabricated in California.

Stormwater Management

An overall site strategy was developed to contain and maximize the infiltration of rainwater into the sandy site soils, which is critical for a city with a combined sewer and stormwater system. The innovative streetscape includes permeable pavers and rain gardens, which improve the aesthetics of the public realm while reducing site runoff and allowing for groundwater recharge. Existing and newly planted trees along Gough Street benefit from additional water draining into the site soils. New trees here are also protected by custom tree guards, designed to withstand vandalism and damage from cars.

Within the courtyard, spacers are installed between standard unit pavers to allow stormwater to permeate into the gravel retention basin below. Overflow and other paving areas are sloped into rain gardens, planted with palm trees and ferns. A perimeter drain also routes water away from the building and into the gravel retention system.

On the roof, green roofs and planters, both ornamental and edible, also help to capture water that would otherwise enter the city storm system.

High Design for All

Despite the project’s limited budget, the design team remained committed to high quality detailing and craftsmanship throughout the process, donating time and creating innovative low-cost details, to ensure that the new residents would finally feel at home.

Project Resources

Community Housing Partnership
David Schnur

Landscape Architect: Andrea Cochran Landscape Architecture, Inc.
Andrea Cochran, FASLA; Elaine Shaw, ASLA; Susan Hughes; Amir Kunin; Sarah Keizer; and Julian Simeoni
