Honor Award

Adding Green to Urban Design
Chicago

City of Chicago

  • Green Urban Design Plan
    Close Me!

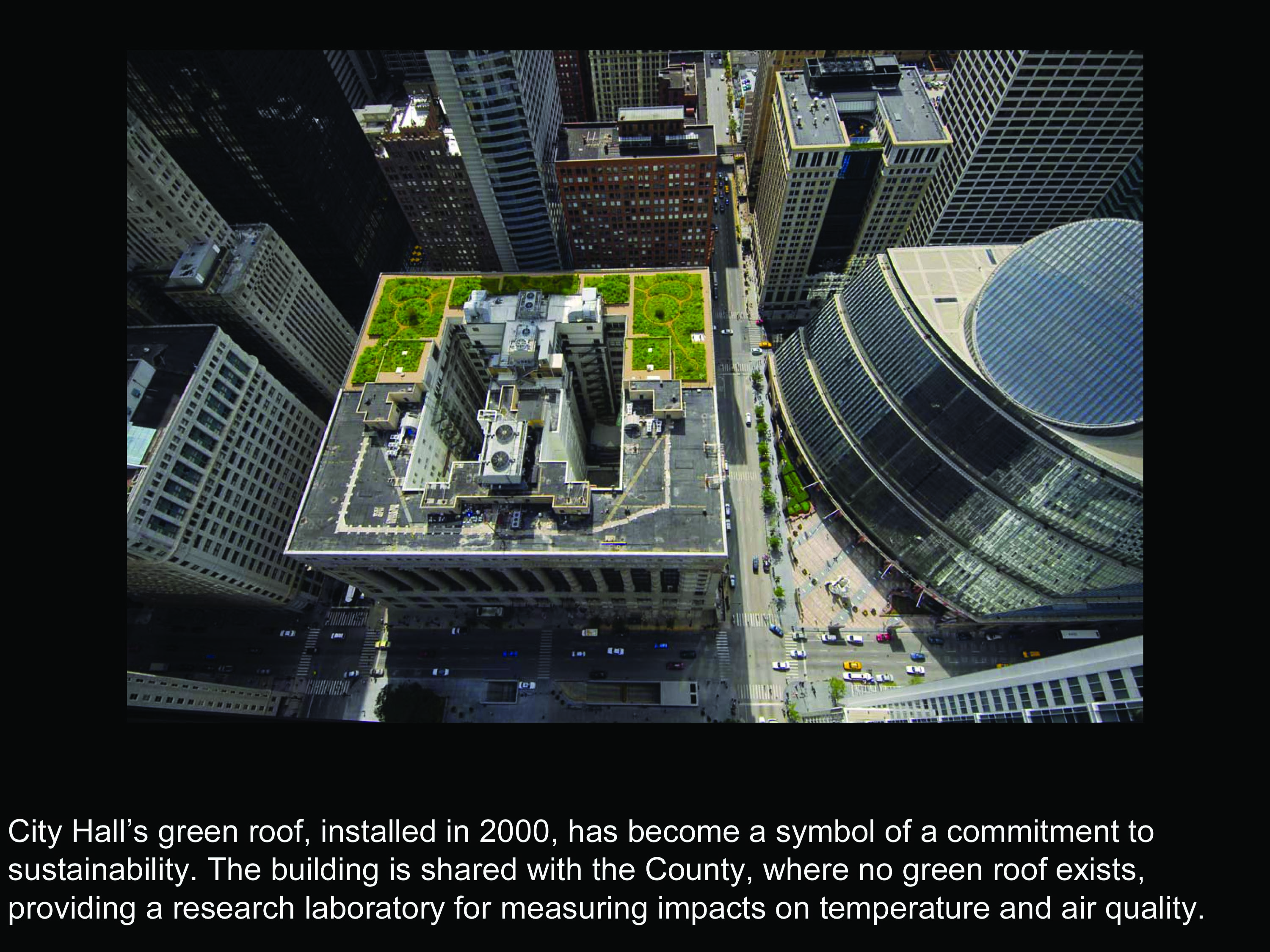

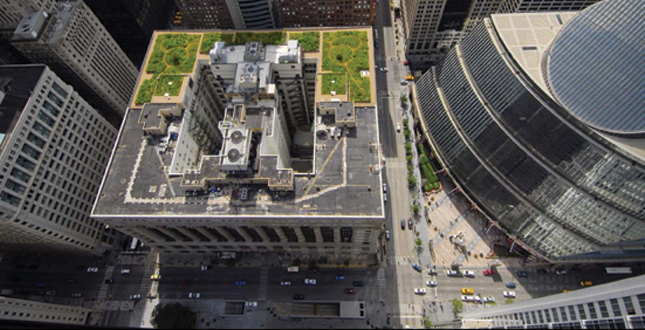

    City Hall’s green roof, installed in 2000, has become a symbol of a commitment to sustainability. The building is shared with the county, where no green roof exists, providing a research laboratory for measuring impacts on temperature and air quality.
    Download Hi-Res Image

    Image: City of Chicago and Hitchcock Design Group

    Image 1 of 15

  • Green Urban Design Plan
    Close Me!

    Green roofs are only one mechanism to improve the environmental performance of a city. To address this, the City brought together private and public experts to develop a comprehensive approach to economically sound and environmentally sustainable urban design.
    Download Hi-Res Image

    Image: City of Chicago and Hitchcock Design Group

    Image 2 of 15

  • Green Urban Design Plan
    Close Me!

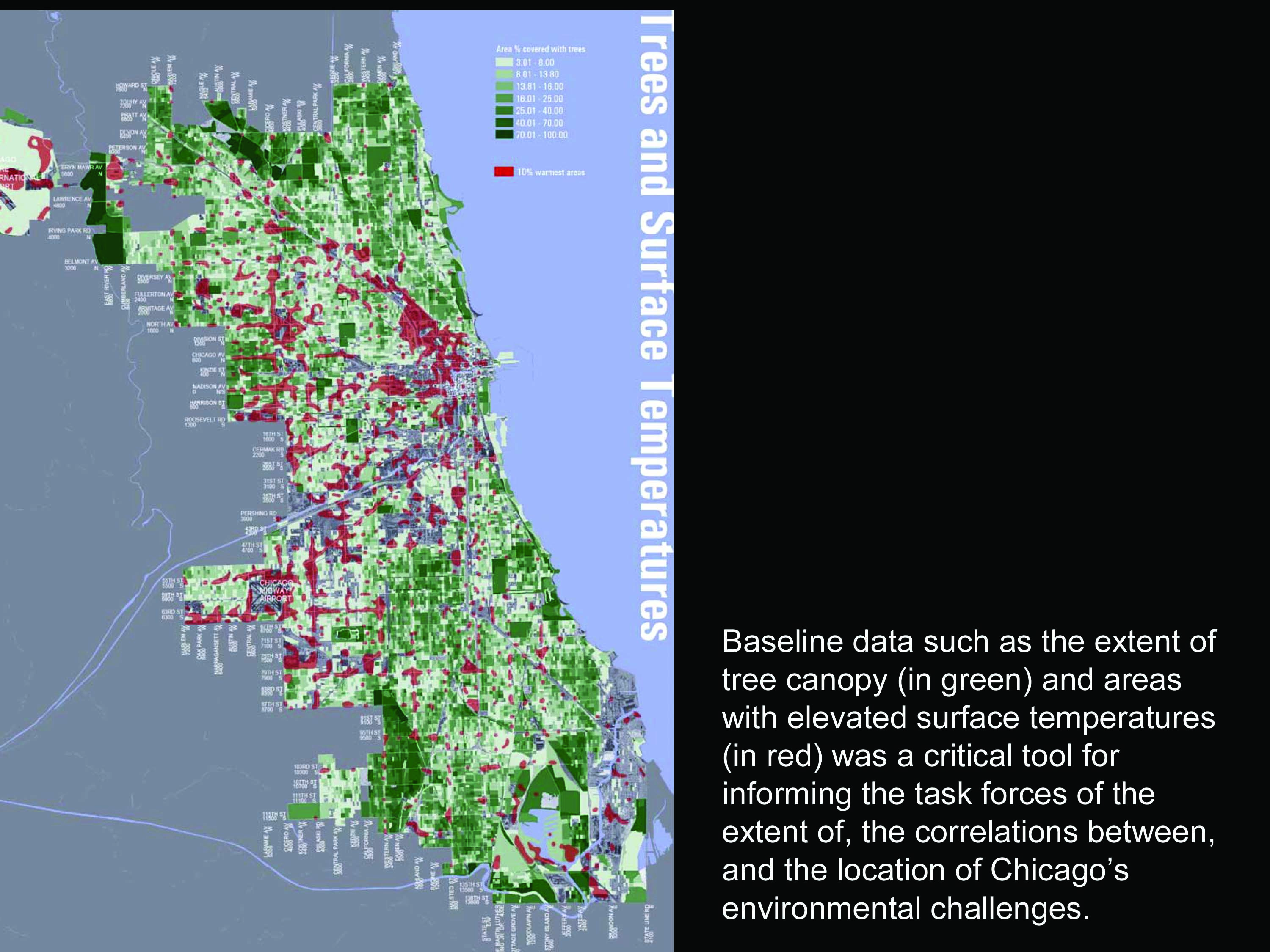

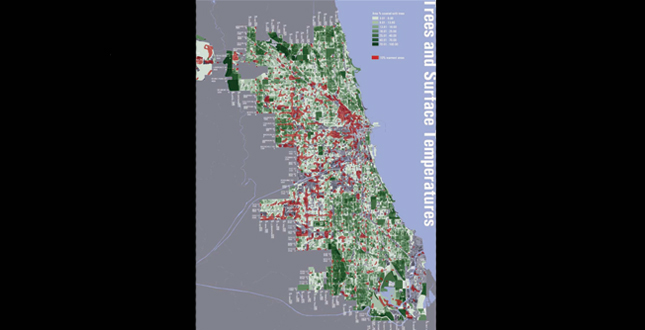

    Baseline data such as the extent of tree canopy (in green) and areas with elevated surface temperatures (in red) was a critical tool for informing the task forces of the extent of, the correlations between, and the location of Chicago’s environmental challenges.
    Download Hi-Res Image

    Image: City of Chicago and Hitchcock Design Group

    Image 3 of 15

  • Green Urban Design Plan
    Close Me!

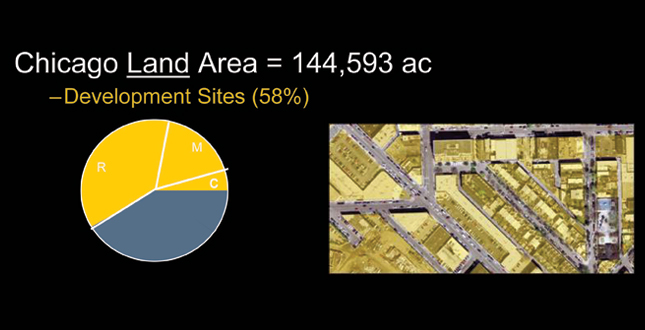

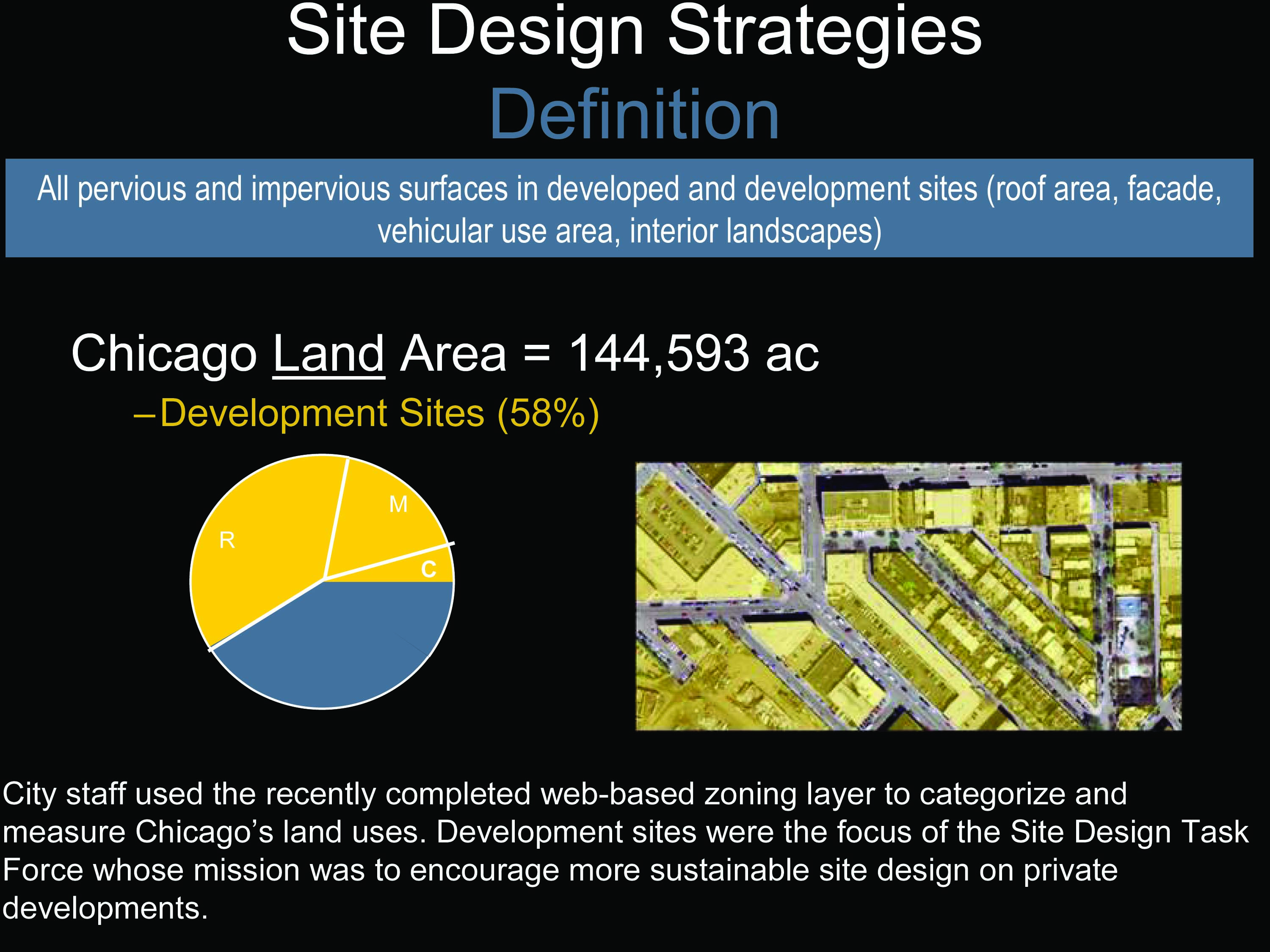

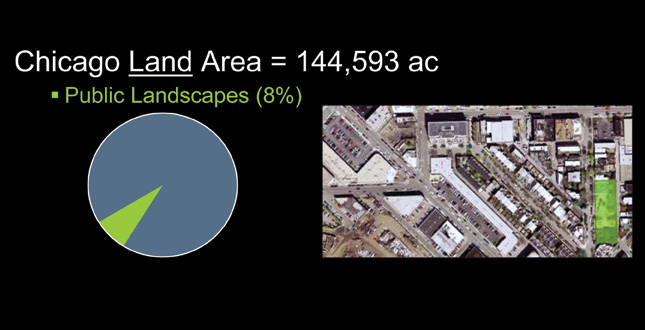

    City staff used the recently completed web-based zoning layer to categorize and measure Chicago’s land uses. Development sites were the focus of the Site Design Task Force whose mission was to encourage more sustainable site design on private developments.
    Download Hi-Res Image

    Image: City of Chicago and Hitchcock Design Group

    Image 4 of 15

  • Green Urban Design Plan
    Close Me!

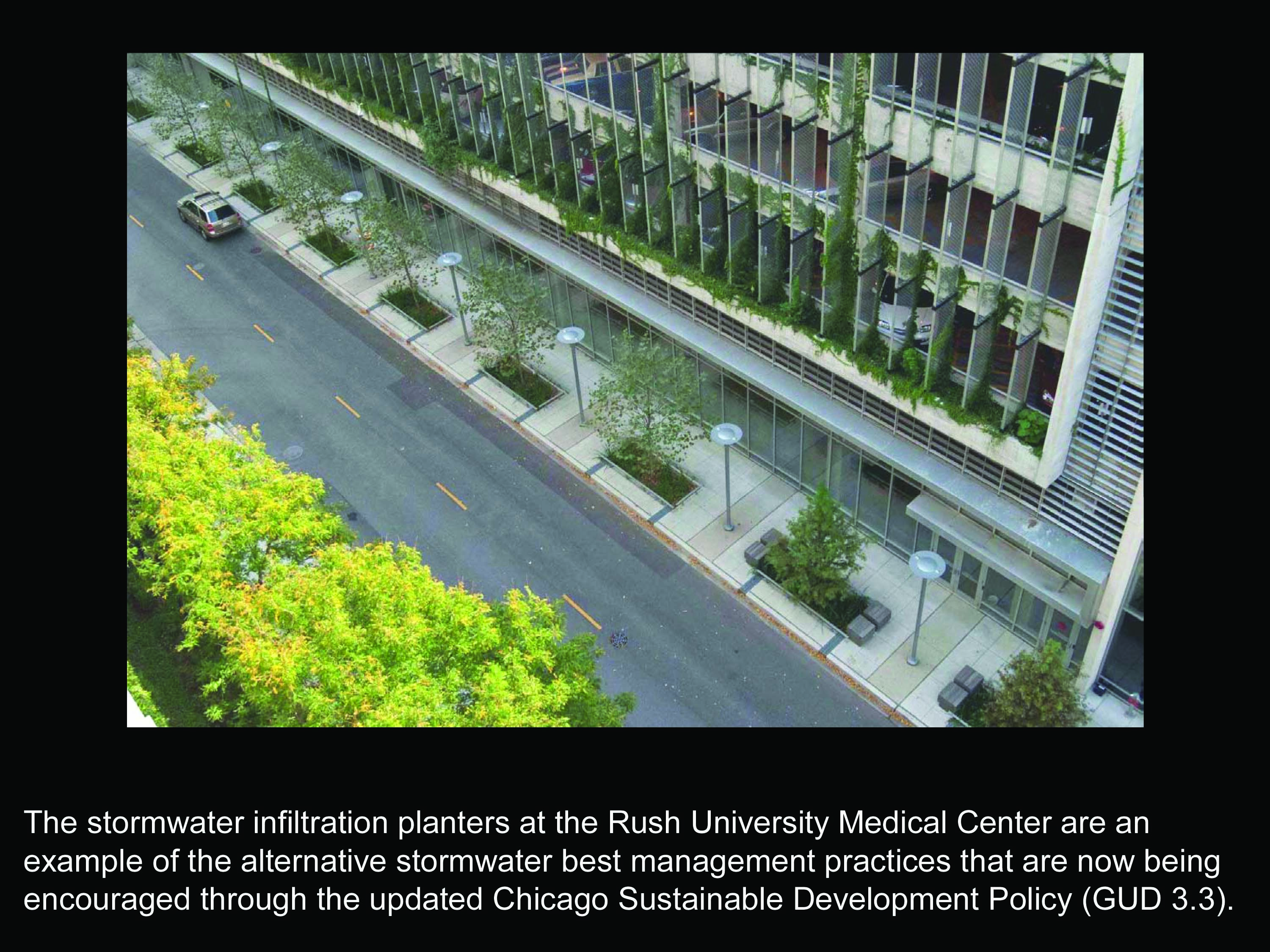

    The stormwater infiltration planters at the Rush University Medical Center are an example of the alternative stormwater best management practices that are now being encouraged through the updated Chicago Sustainable Development Policy (GUD 3.3).
    Download Hi-Res Image

    Image: City of Chicago and Hitchcock Design Group

    Image 5 of 15

  • Green Urban Design Plan
    Close Me!

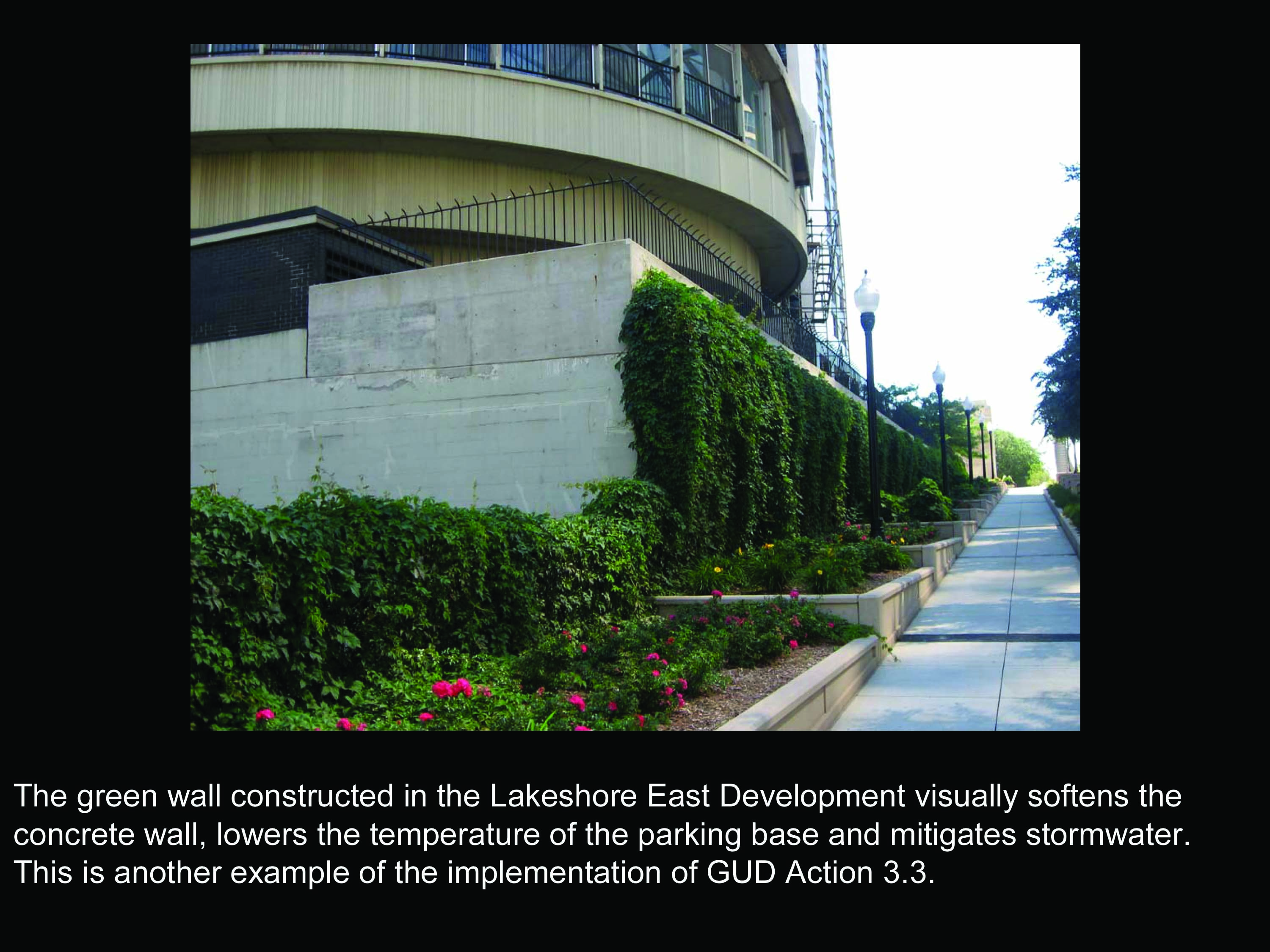

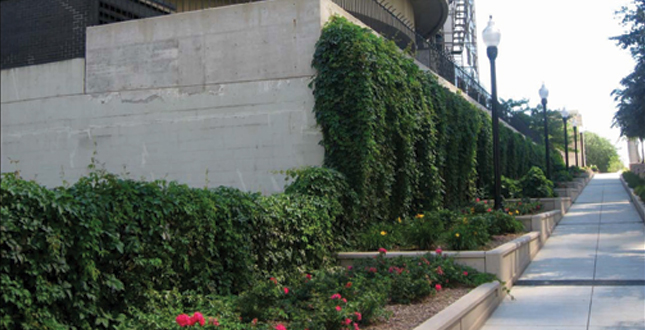

    The green wall constructed in the Lakeshore East Development visually softens the concrete wall, lower the temperature of the parking base and mitigates stormwater. This is another example of the implementation of GUD Action 3.3.
    Download Hi-Res Image

    Image: City of Chicago and Hitchcock Design Group

    Image 6 of 15

  • Green Urban Design Plan
    Close Me!

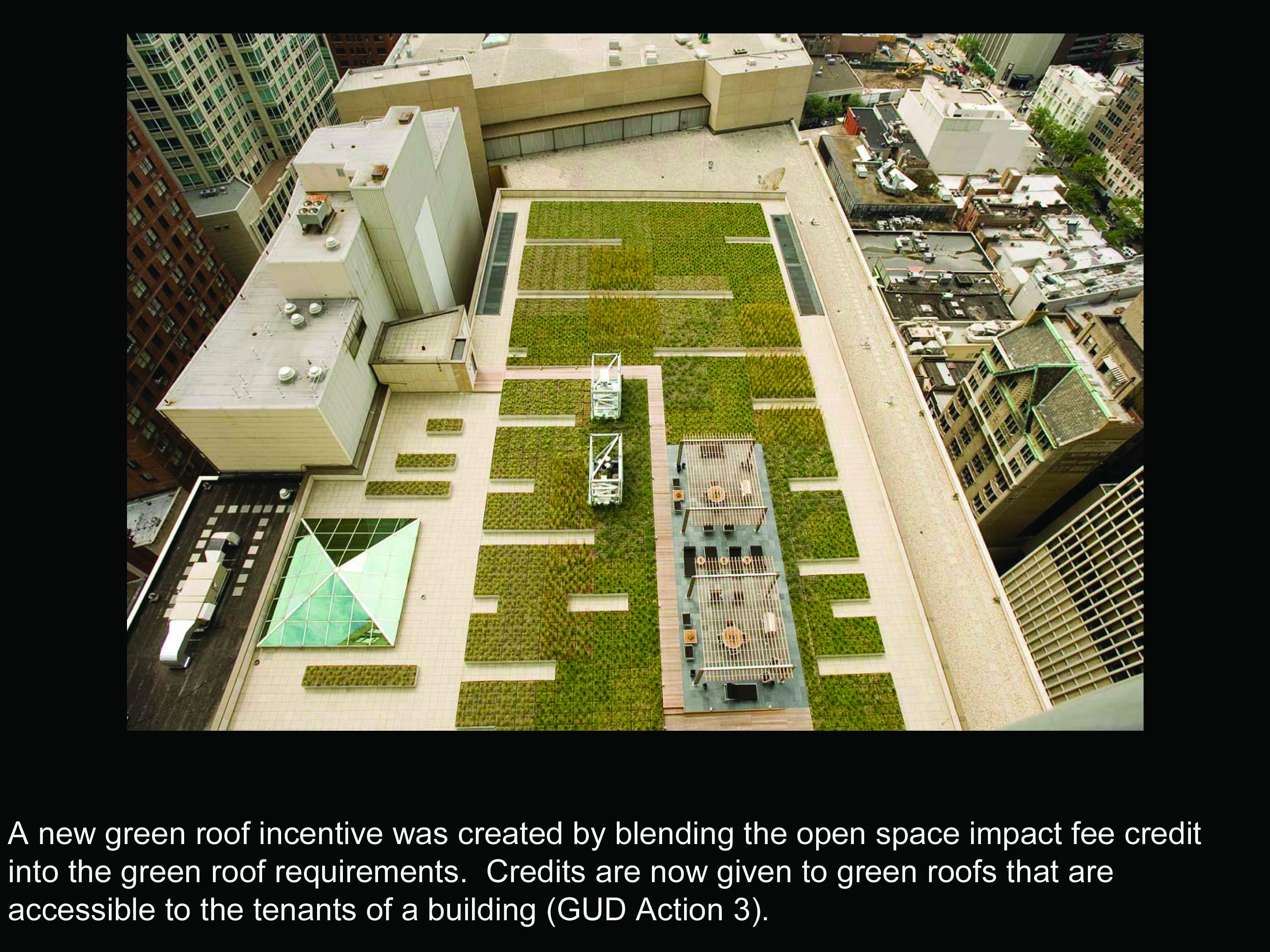

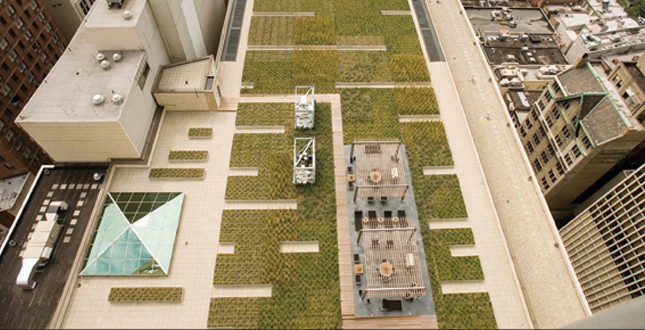

    A new green roof incentive was created by blending the open space impact fee credit into the green roof requirements. Credits are now given to green roofs that are accessible to the tenants of a building (GUD Action 3).
    Download Hi-Res Image

    Image: Scott Shigley

    Image 7 of 15

  • Green Urban Design Plan
    Close Me!

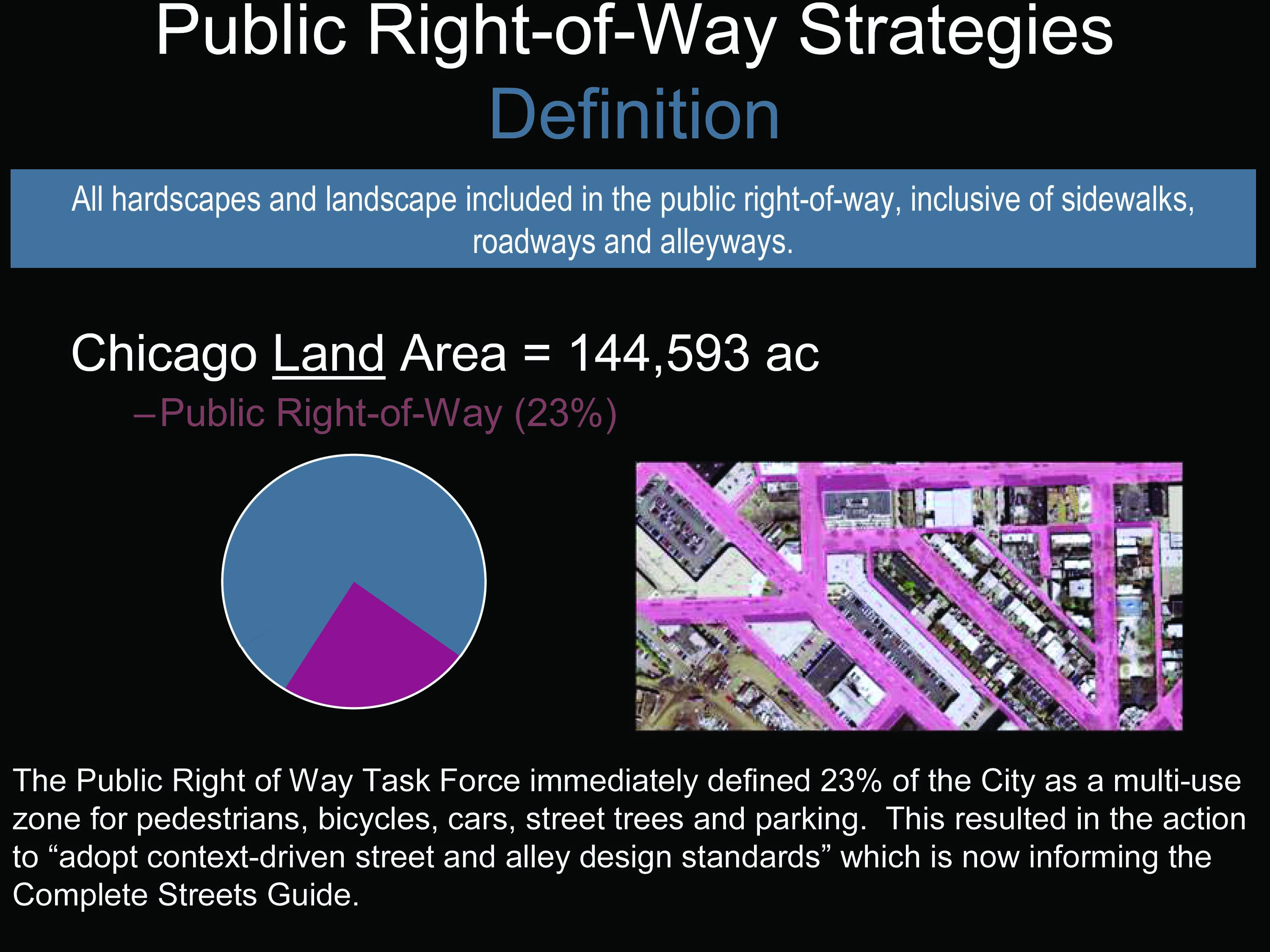

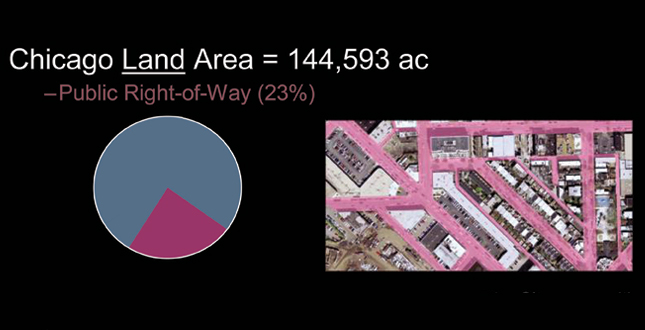

    The Public Right of Way Task Force immediately defined 23% of the City as a multi-use zone for pedestrians, bicycles, cars, street trees and parking. This results in the action to "adopt context-driven street and alley design standards" which is now informing the Complete Streets Guide.
    Download Hi-Res Image

    Image: City of Chicago and Hitchcock Design Group

    Image 8 of 15

  • Green Urban Design Plan
    Close Me!

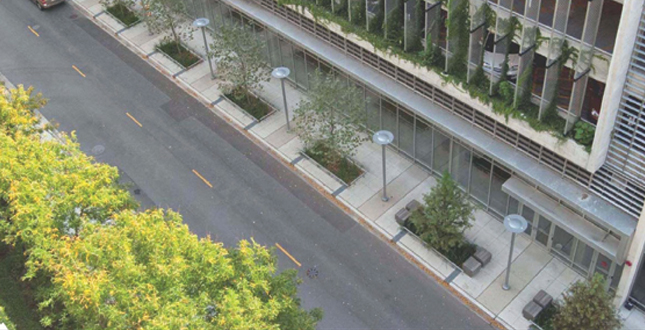

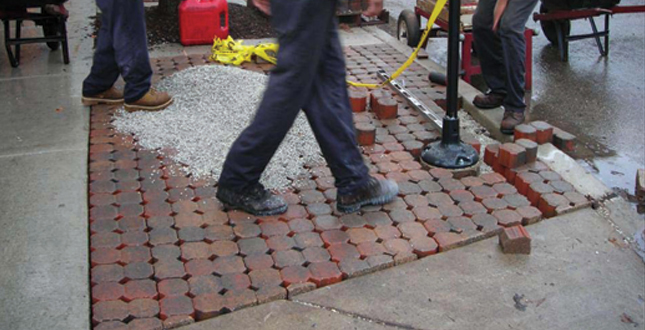

    This right-of-way must accommodate heavy pedestrian traffic and sidewalk cafes. Instead of using traditional landscaped parkways to absorb excess water, the pavers allow stormwater to percolate into the soil beneath without compromising these uses (GUD 8.2).
    Download Hi-Res Image

    Image: City of Chicago and Hitchcock Design Group

    Image 9 of 15

  • Green Urban Design Plan
    Close Me!

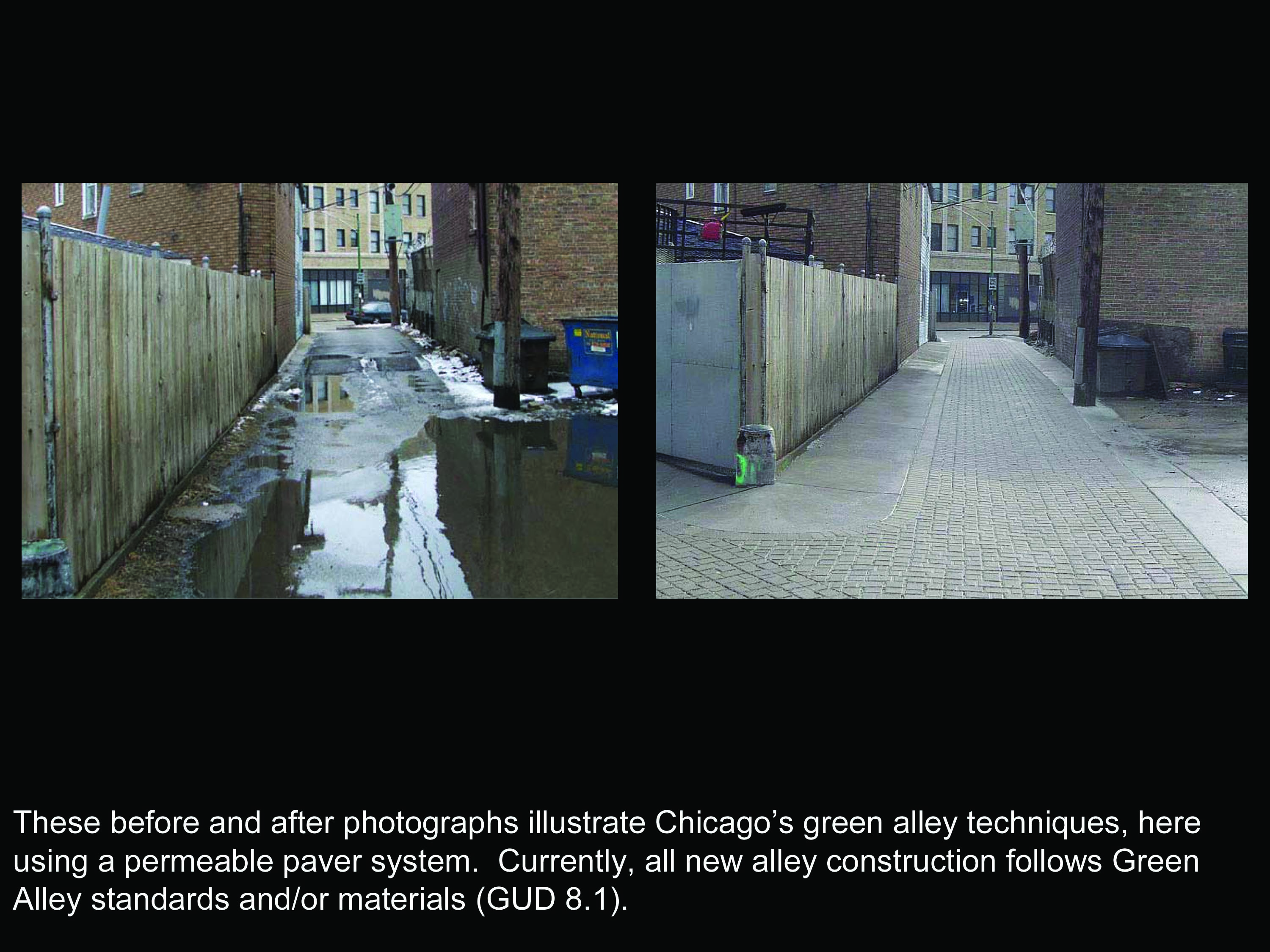

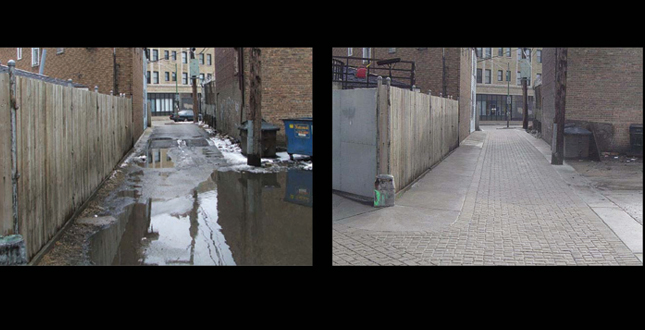

    These before and after photographs illustrate Chicago’s green alley techniques, here using a permeable paver system. Currently, all new alley construction follows Green Alley standards and/or materials (GUD 8.1).
    Download Hi-Res Image

    Image: City of Chicago and Hitchcock Design Group

    Image 10 of 15

  • Green Urban Design Plan
    Close Me!

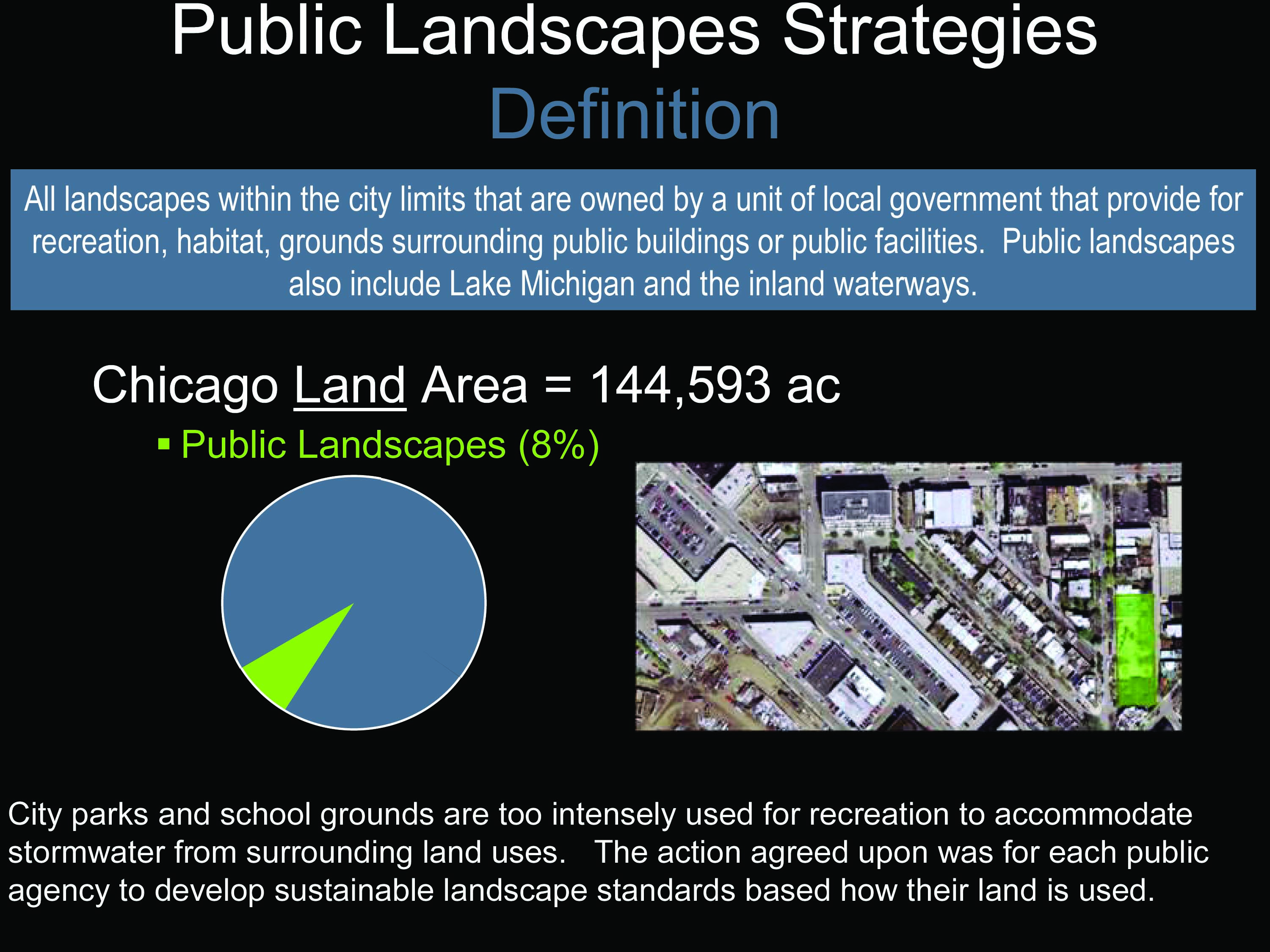

    City parks and school grounds are too intensely used for recreation to accommodate stormwater from surrounding land uses. The action agreed upon was for each public agency to develop sustainable landscape standards based on how their land is used.
    Download Hi-Res Image

    Image: City of Chicago and Hitchcock Design Group

    Image 11 of 15

  • Green Urban Design Plan
    Close Me!

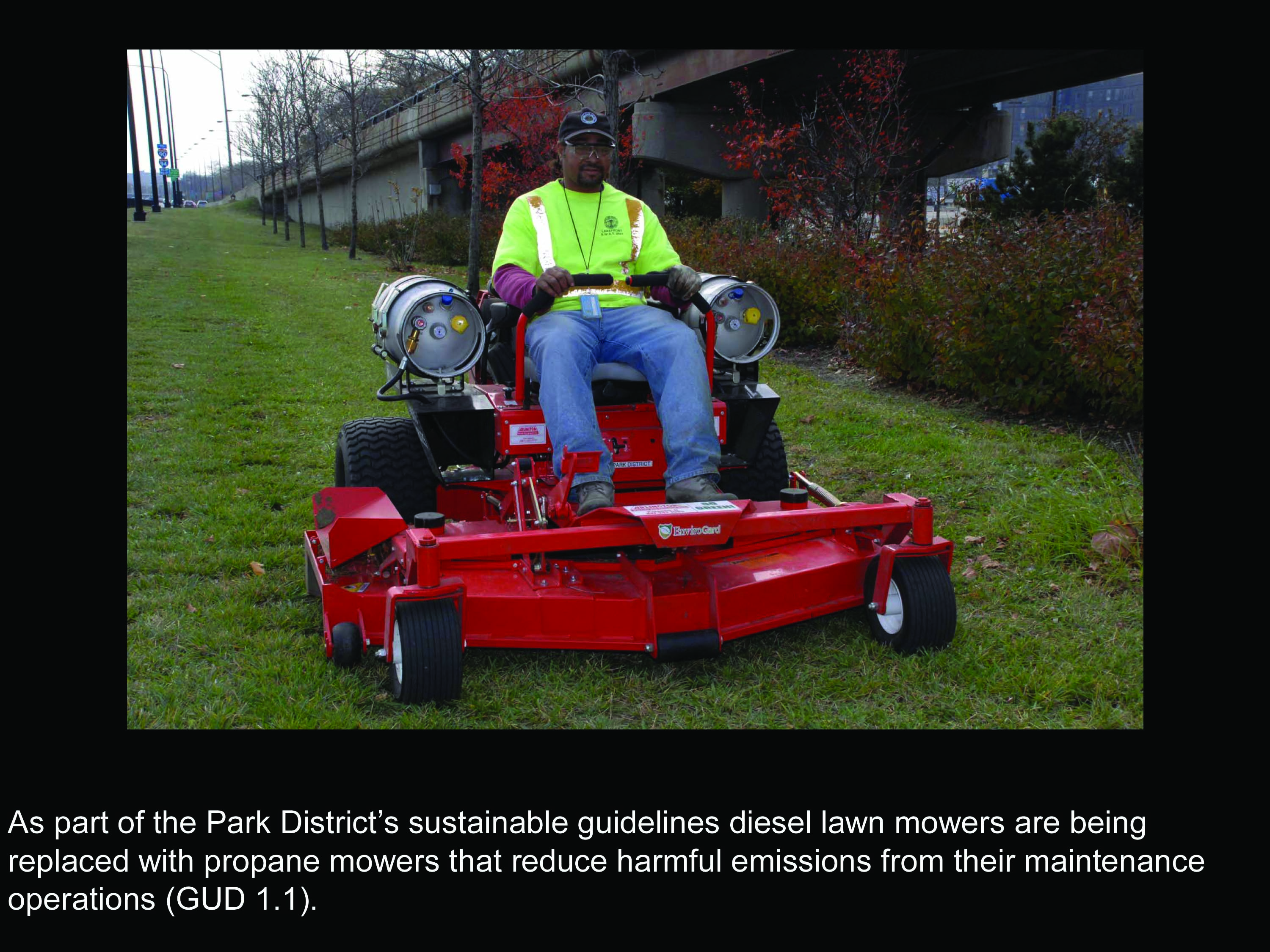

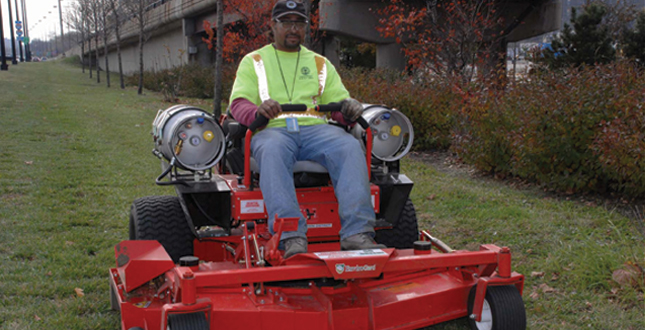

    As part of the Park District’s sustainable guidelines diesel lawn mowers are being replaced with propane mowers that reduce harmful emissions from their maintenance operations (GUD 1.1).
    Download Hi-Res Image

    Image: City of Chicago and Hitchcock Design Group

    Image 12 of 15

  • Green Urban Design Plan
    Close Me!

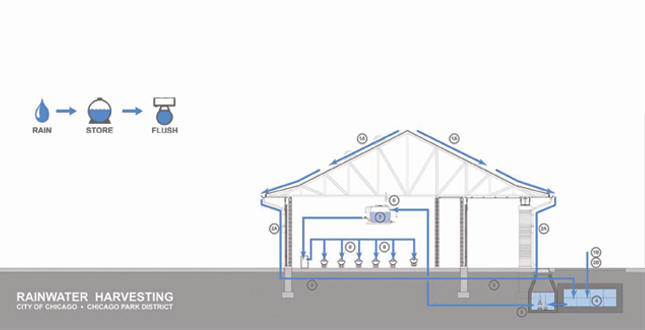

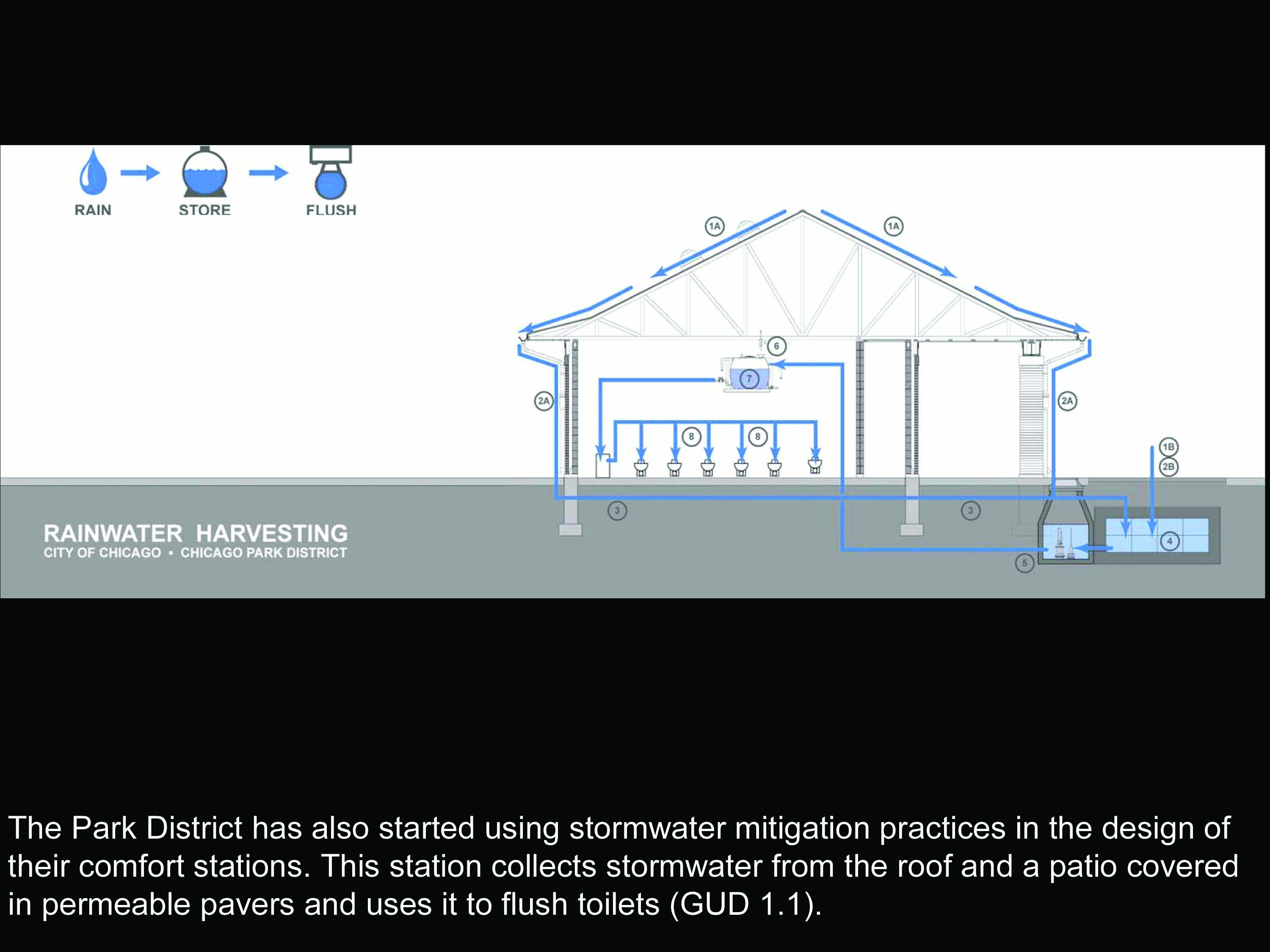

    The Park District has also started using stormwater mitigation practices in the design of their comfort stations. This station collects stormwater from the roof and a patio covered in permeable pavers and uses it to flush toilets (GUD 1.1).
    Download Hi-Res Image

    Image: City of Chicago and Hitchcock Design Group

    Image 13 of 15

  • Green Urban Design Plan
    Close Me!

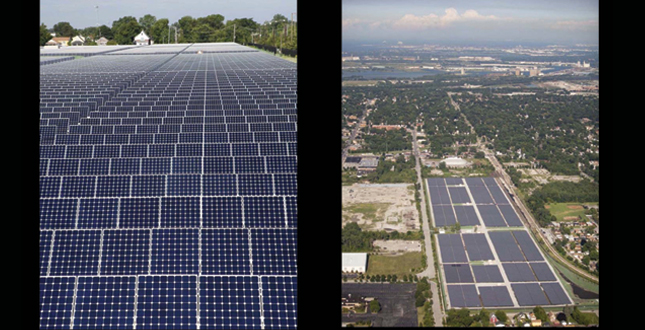

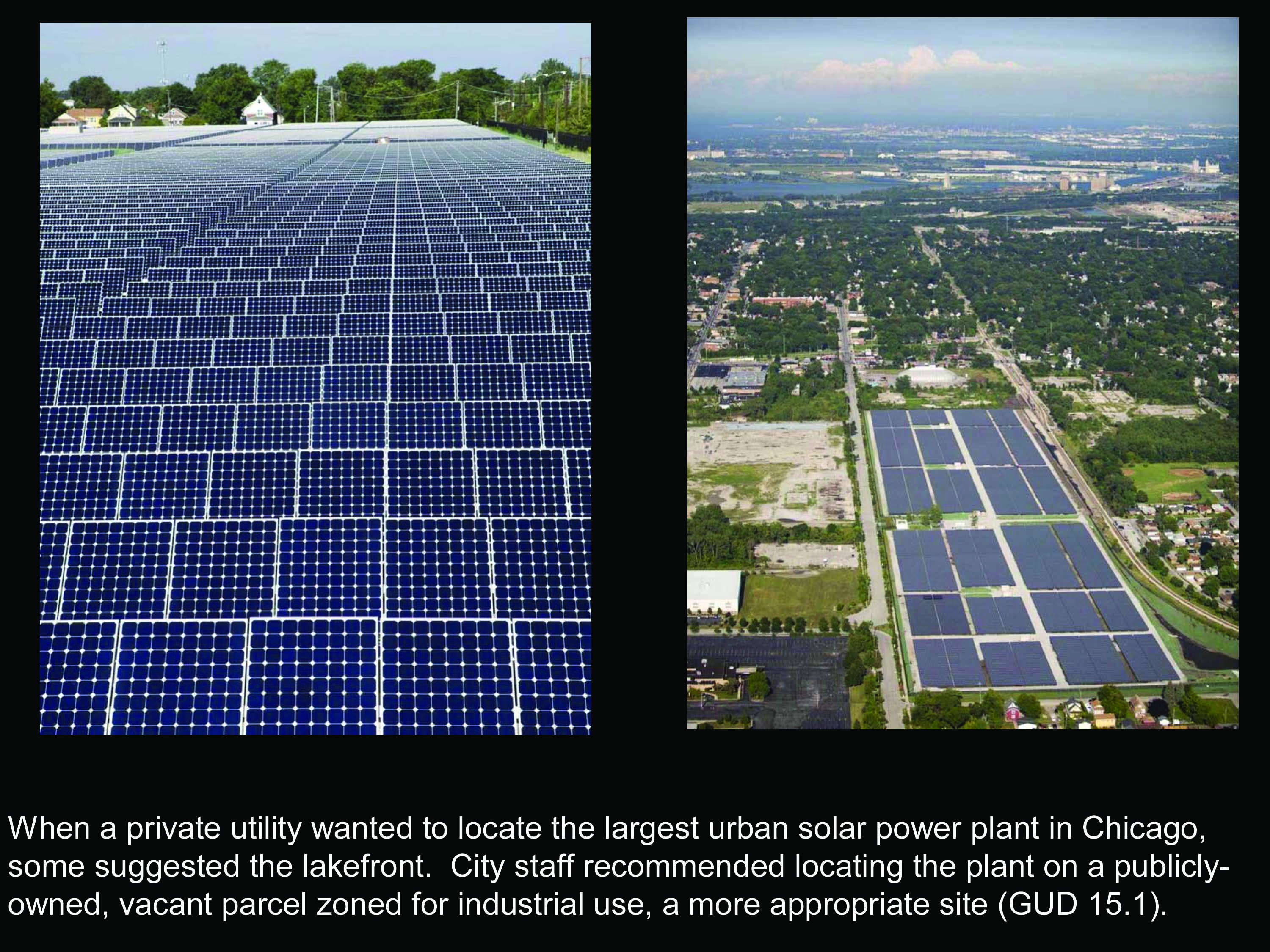

    When a private utility wanted to locate the largest urban solar power plant in Chicago, some suggested the lakefront. City staff recommended locating the plant on a publicly-owned, vacant parcel zoned for industrial use, a more appropriate site (GUD 15.1).
    Download Hi-Res Image

    Image: City of Chicago and Hitchcock Design Group

    Image 14 of 15

  • Green Urban Design Plan
    Close Me!

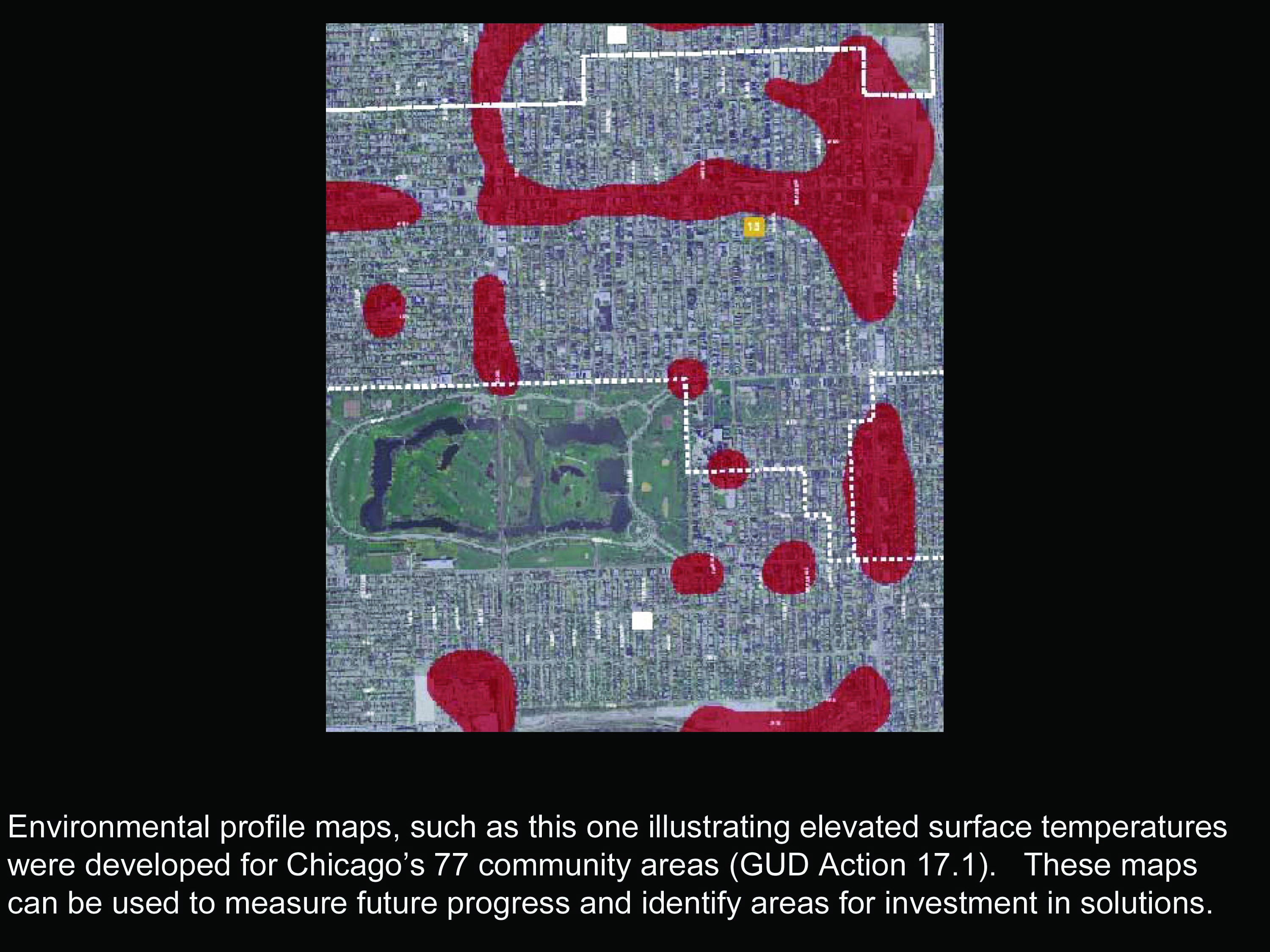

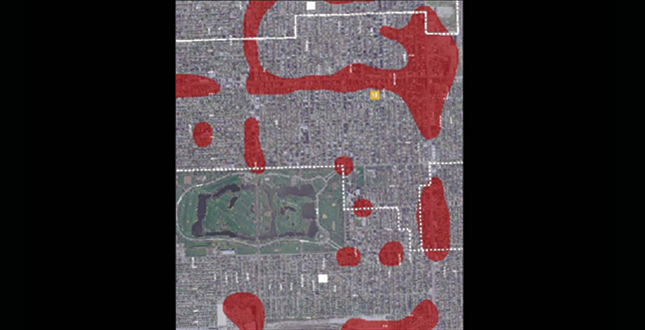

    Environmental profile maps, such as this one illustrating elevated surface temperatures were developed for Chicago's 77 community areas (GUD Action 17.1). These maps can be used to measure future progress and identify areas for investment in solutions.
    Download Hi-Res Image

    Image: City of Chicago and Hitchcock Design Group

    Image 15 of 15

Project Statement

Adding Green To Urban Design (GUD):  A City for Us and Future Generations presents a rationale, a vision and a detailed implementation strategy for economically sound and environmentally sustainable urban design.

Nine City of Chicago departments and sister agencies, along with more than 50 professionals from various fields of expertise worked collaboratively to develop GUD’s 21 key actions that maintain and improve Chicago’s urban design to optimize its environmental benefits for current and future generations.

Project Narrative

This comprehensive plan crosses all scales and departments within the city and provides a snapshot of exactly how this should work in other cities. It’s a top-down initiative: Chicago started early in redirecting its infrastructure toward a green future and the breadth of work is unbelievable. The plan provides measurable demonstration projects. It’s effective, multi-disciplinary work and it sets a great precedent.
—2011 Professional Awards Jury

Adding Green To Urban Design (GUD):  A City for Us and Future Generations is a framework plan for the City of Chicago that presents a rationale, vision and detailed implementation schedule for economically sound and environmentally sustainable urban design. Better known as the Green Urban Design or GUD plan, it provides direction to the Chicago City Council in regulating urban design, and to the Chicago Plan Commission in reviewing individual development projects. Adopted by the Plan Commission on Nov. 20, 2008, it also guides City departments in making decisions about public investments and improvements to the city's built environment.

Background

Chicago’s effort to become a green and livable city started with a series of single-issue initiatives. A well-documented example is the green roof initiative, which began in 2000 with the planting of the 22,000-square-foot green roof on top of City Hall. While effective at encouraging the design and construction of more than 500 green roof projects throughout the city, the initiative was not comprehensive enough to address all of the possibilities for improving the environmental performance of the urban, built environment.

In 2005, representatives from eight City departments and sister agencies formed a working group to discuss strategies and programs that would enhance the environmental footprint of Chicago’s urban form. The working group was motivated by the premise that population density and related land uses make cities more environmentally friendly than their rural or suburban counterparts. Another driving force behind the effort was a model of projected climate changes for the Chicago region that was completed by scientists at the University of Illinois and Texas Tech University. The projections detailed how Chicago’s built environment would be exposed to higher average temperatures, hotter and longer heat waves, and more frequent heavy rainstorms. Since the events would exacerbate many environmental challenges in Chicago, such as an overburdened combined sewer system and high levels of ground level ozone, the working group was pressed to determine how to mitigate the projections through appropriate choices for urban design.

Since many of the existing programs that encourage more environmentally-friendly design were oriented to strategies and systems within buildings, the working group focused on features outside the building envelope, such as rooftops, facades, sidewalks, streets and other public and private hardscapes and landscapes. The group began with a review of existing ordinances and practices that affect urban design. City staff also completed an environmental baseline study using aerial imagery, spatial data and an analysis of City of Chicago basement flooding data. Environmental baselines were completed for: elevated surface temperatures, which illustrated the extent and primary locations of Chicago’s urban heat islands; tree canopy coverage, which averaged 13.8 percent citywide; and the extent of basement flooding, due primarily to an over-burdened combined sewer system.

The discussion was broadened into a public input process in the fall of 2006 to help identify critical issues, solicit solutions and lay the groundwork for the framework plan. The public input process was guided by a steering committee consisting of representatives from a variety of civic, non- and for-profit organizations and businesses that influence the way Chicago’s urban form is planned, built and maintained. The process included 50 professionals in urban design, planning and landscape maintenance that worked as four task forces to develop strategies that would guide future development in the following areas.

  • Site Design: All pervious and impervious surfaces within a development site, including roof areas, facades, vehicular use areas, and interior landscapes
  • Public Rights-of-way: All landscapes and hardscapes in the public right-of-way, inclusive of sidewalks, roadways and alleyways
  • Public Landscapes: All publicly-owned landscapes within City limits that provide for recreation, natural habitat, and grounds surrounding public buildings or public facilities
  • Indicators: Measures and processes that guide, monitor, and evaluate ongoing strategies implementation

An initial task of the steering committee was to refine and finalize the working group's goal for the planning process. After much deliberation and thoughtful discussion, the steering committee agreed on the following goal:

Maintain and improve Chicago’s urban design to optimize its environmental benefits for current and future generations.

The GUD Plan

In 19 months and a combined 230 hours of pro bono time, the task forces developed 21 strategies for Chicago planners, builders and government agencies to make sustainable urban design a reality. The key actions are presented in the framework plan in the context of four major approaches:

  1. Environment: Design and maintain to ensure environmental sustainability and function
  2. Integration: Promote design that is responsive to the neighborhood context balancing functions, environmental goals and economic vitality
  3. Innovation: Test, evaluate and, when appropriate, expand use of and monitor green technologies
  4. Assessment: Empower all stakeholders at all times with an understanding of the rationale and outcomes

The 21 strategies included both short and long term actions.  The following are a few of the shorter term activities that have been implemented.

  • GUD Action 1.1: Develop Sustainable Landscape Standards for Public Landscapes - The Chicago Park District began replacing their fleet of diesel lawn mowers with propane mowers to reduce emissions from their maintenance operations.
  • GUD Action 3.3: Expand Green Roof Requirements - The Chicago Sustainable Development policy was improved by expanding the required green roof coverage percentage requirements and allowing alternative stormwater best management practices for projects receiving assistance from the City.
  • GUD Action 7.1: Define Canopy Cover Goals - The City and the Chicago Trees Initiative set a tree canopy target of 20% and outlined an action plan to attain the goal in the 2009 Urban Forest Agenda.
  • GUD Action 8.1: Adopt Green Alley Design Standards - All new alley construction now use Green Alley standards and/or materials.
  • GUD Action 8.2: Develop Sustainable Street Design Standards - A Sustainable Street Design Standard Matrix on land use, street types, and right-of-way widths will be completed in 2011 in conjunction with the Sustainable Streets Standards developed by the Chicago Department of Transportation.
  • GUD Action 15.1: Capture and Use Renewable Energy in Public Landscapes - The City assisted a private utility in locating and permitting the largest urban solar power plant in the United States (10 megawatts) on publicly-owned, vacant land in the West Pullman Planned Manufacturing District.
  • GUD Action 17.1: Create Community Area Environmental Profile Maps and Data-sets - Environmental profile maps and data-sets were developed for each of Chicago’s 77 community areas using the water, air and land indicators.

Several of the longer term strategies have been initiated and have led to further analysis.

  • GUD Action 5.1: Establish Maintenance Requirements - Initial work to establish maintenance requirements and enforcement for green roofs required by the Chicago Sustainable Development Policy included an investigation of alternative methods for enforcing the maintenance agreement (city inspections vs. use of satellite imagery).  Given the decrease in the City budget for in-the-field inspections and the higher level of sophistication of City staff in GIS analysis and application, the recommendation was to use satellite imagery to identify and monitor the number and health of green roofs.  Satellite imagery from fall 2010 has been purchased and will be analyzed by June of 2011 to create a database of the number, square footage and health of all green roofs in Chicago.
  • GUD Actions 14.4: Assess Public Land Opportunities for Stormwater Landscapes and 15.1: Capture and Use Renewable Energy in Public Landscapes - An assessment of land opportunities for the creation of stormwater management landscapes and shared renewable energy systems will be completed in 2011 as part of two planning projects.  One study will explore innovative stormwater best management practices within the context of residential and commercial block typologies in the Washington Park/Woodlawn neighborhoods while the other will investigate shared stormwater best management practices and renewable energy systems opportunities in Chicago’s 24 designated industrial corridors.

The GUD plan’s most important section is the Implementation Road Map. This section presents the 21 key actions with corresponding critical next steps. It details target dates for the completion of each action along with the city department or agency that is responsible for implementation. The road map is a dynamic document that is being used as a progress report every year. Its content will evolve to reflect completed steps, but also added or modified steps when appropriate, to support the realization of the 21 key actions.
